20
3-9. Leg Section Removal.
NOTE
The leg section with the x-ray top + pad
attached weighs 31 lbs. It is recom-
mended that the x-ray top and pad be
removed before detaching the leg section.
a. To remove the leg section, position the table
top height to elbow height, and simultaneously
depress both release levers and pull the leg section
out. See figure 3-19. Press the LEG-DOWN
button on the pendant control to position the leg
section attachment pins down and out of the way.
b. To Install Leg Section, press and hold the
LEG-UP button until the leg section attachment
pins completely stop before reinstalling the leg
section to the table. Pull out on the leg section after
installation to make sure the release levers are
completely locked.

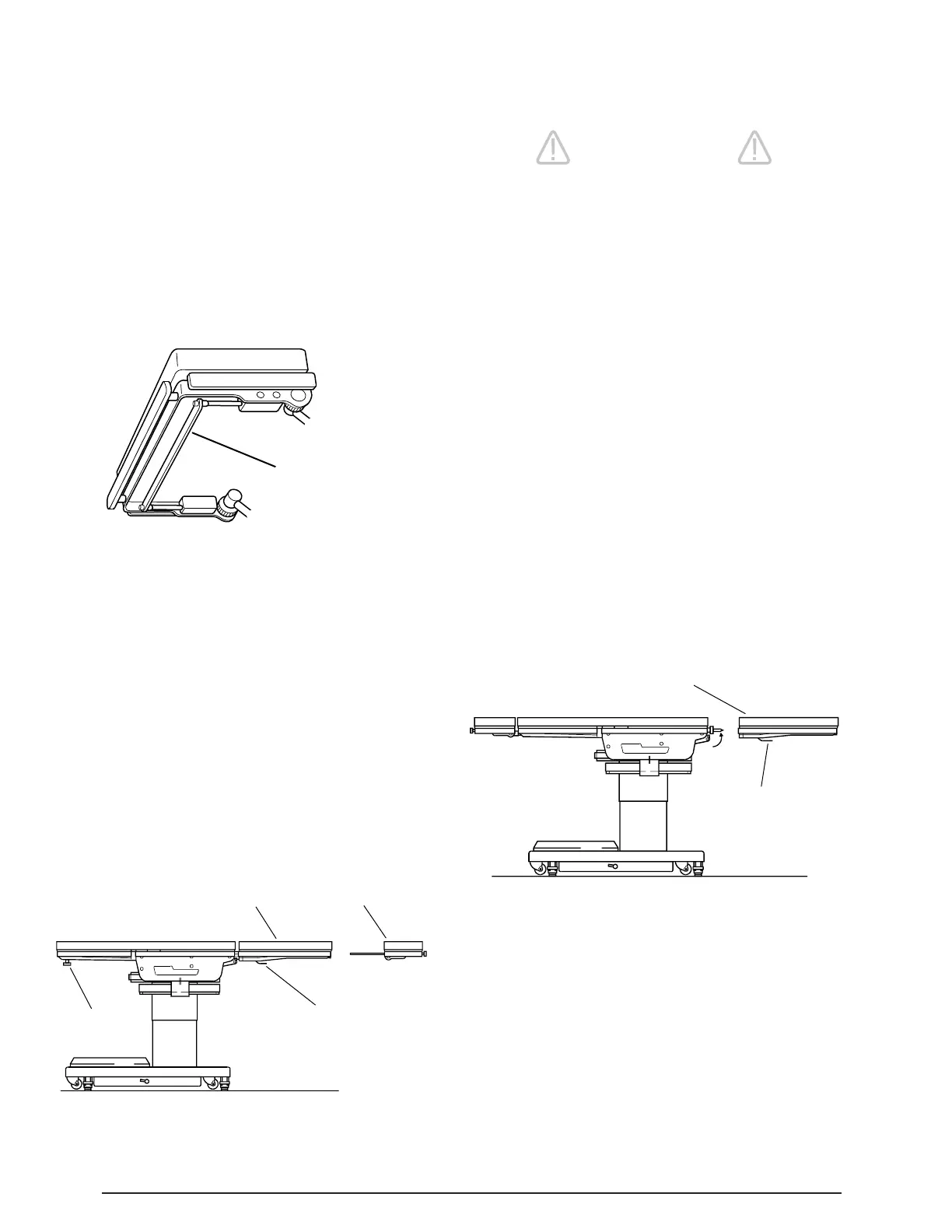

Figure 3-19. Leg Section Release Levers
FOOT/LEG SECTION
RELEASE
LEVER
b. By loosening two locking knobs beneath the
back section, an additional 5" of longitudinal adjust-
ment can be achieved. If desired, the head section
may be removed by loosening the locking knobs
and pulling it straight out of the back section. 3500
Series Tables have the capability of attaching the
head section to the leg section for use as a foot
extension. Two locking knobs are located on the
inside of the leg section for securing the head
section. See figure 3-18.
3-8. Head Section
a. A quick release positioning bar located under
and to the front of the head section (figure 3-17) is
used to raise or lower the head section. Pull the
release bar toward the head end to allow the
section to pivot up or down. Positioning from 60°
above horizontal to 90° below horizontal in 15°
increments is available. Release the bar to lock the
head section in position.
HEAD SECTION
RELEASE BAR
Figure 3-17. Head Section Adjustment
WARNING
In the unlikely event that a procedure
requires the reversal of the patient on
the table top with the head section at-
tached to the leg section, the patient
weight limit is reduced to 300 pounds.
FOOT/LEG
SECTION
HEAD
SECTION
LOCKING
KNOB
LEG SECTION
RELEASE
LEVER
Figure 3-18. Repositioning Head Section
