Skytron ELITE Series User Manual

9
BRAKE
UNLOCK
TABLE UP
(BRAKE LOCK)
2-1. Electrical Power
a. Check to be sure the power cord is plugged
into a properly grounded, Hospital Grade, 120VAC
outlet. Make sure the power cord is routed so as to
prevent it from being in the way of the operating
personnel.
WARNING
Prior to operating the table, observe all
table caution labels and review the
SPECIAL USER ATTENTION section
in the front of this manual.
WARNING
DO NOT use the table in the presence
of FLAMMABLE GASES (Flammable
gases are not commonly used in the
U.S.)
b. Depress Main Power ON/OFF switch on the
electrical enclosure. See figure 2-1. The green
Power ON indicator light on the pendant control unit
should now be illuminated.
NOTE
The main power switch can be placed in
the OFF position to completely deacti-
vate all table functions if required during
certain procedures or in case of emer-
gency.
2-2. Positioning Functions
The hand-held pendant control unit (figure 2-2)
activates the following table functions:

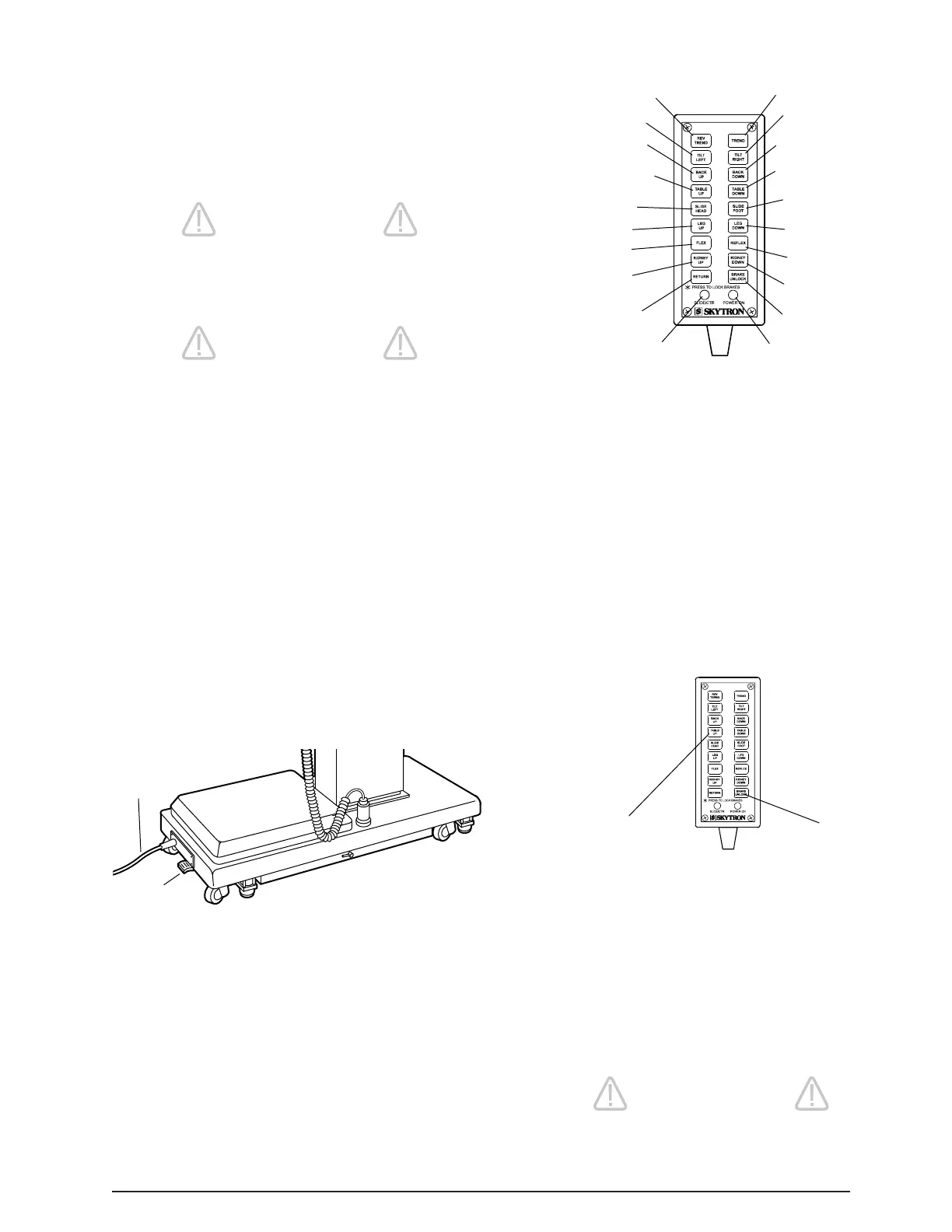

Figure 2-1. Main Power Switch
NOTE
With an evenly distributed patient weight
load, all table positioning functions will
operate smoothly and quietly with a
patient weight of up to 500 pounds.
a. Floor Lock/Brake System. To activate the
brakes without affecting table positioning, press
the TABLE-UP button. See figure 2-3. The eleva-
tion cylinder will not function until the brakes are
completely extended.
SECTION II LINE POWER MODEL OPERATION
POWER
CORD
MAIN
POWER
SWITCH
Figure 2-2. Pendant Control Unit
Press the BRAKE-UNLOCK button on the pendant
control to release the four self-leveling brake feet in
order to move the table. See figure 2-3. The brake
delay circuit automatically retracts the brake sys-
tem with just one press of the BRAKE-UNLOCK
button. It takes approximately 7-8 seconds to
totally release the system.
WARNING
DO NOT unlock brakes when a patient
is on the table. An uneven patient
weight load may cause instability.
Figure 2-3. Brake System Activation
REFLEX
BACK DOWN
TABLE DOWN
SLIDE FOOT
LEG DOWN
RETURN
TO LEVEL
KIDNEY
LIFT UP
FLEX
LEG UP
SLIDE HEAD
TABLE UP
(BRAKE LOCK)
BACK UP
LATERAL
TILT LEFT
KIDNEY
LIFT DOWN
BRAKE
UNLOCK
POWER
INDICATOR
SLIDE/CTR
INDICATOR
REVERSE
TRENDELENBURG
LATERAL
TILT RIGHT
TRENDELENBURG
