Skytron ELITE Series User Manual

17

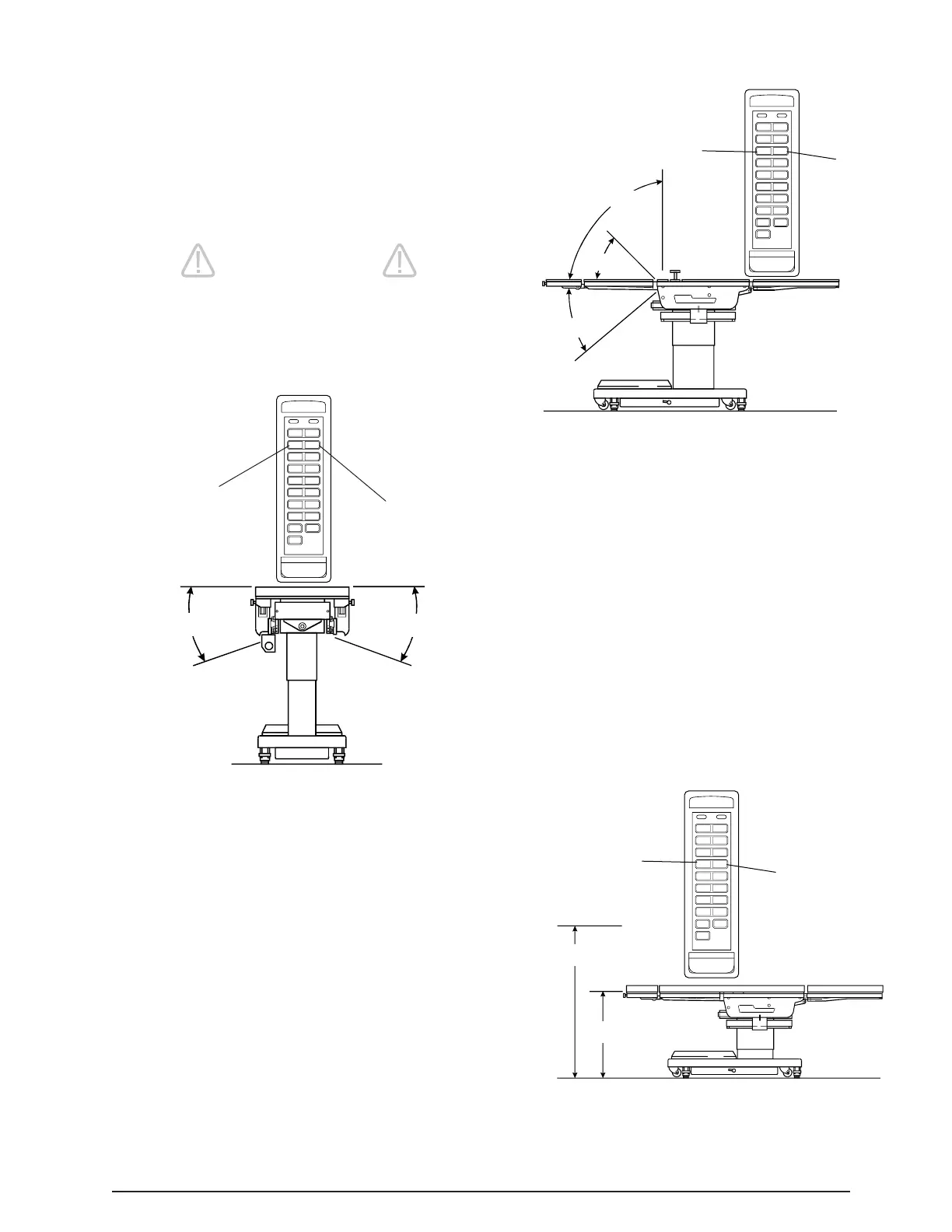

Figure 3-9. Back Section Positioning
d. Back Section. To raise the back section,
press the BACK-UP button (figure 3-9). The back
section will raise up to 90° above horizontal. To
lower the back section, press the BACK-DOWN
button. The back section will go down to 40° below
horizontal.
NOTE
If the table top is slid toward the foot end,
the back section will not go below hori-
zontal.
c. Lateral Tilt. To achieve lateral tilt right (as
viewed from the head end of the table), press the
TILT-RIGHT button (figure 3-8). Tilt of up to 20°
may be obtained. To achieve lateral tilt left, press
the TILT-LEFT button. Tilt of up to 20° may be
obtained.
WARNING
To maximize patient safety, utilize
proper restraint methods during extreme
lateral tilt positioning.
Figure 3-8. Lateral Tilt Positioning
NOTE
To prevent damage to the kidney lift, a
safety interlock prevents the back sec-
tion from going up more than 45° if the
kidney lift is not all the way down.
ELITE/
3500B
CAUTION
HANG PENDANT CONTROL
ON SIDE RAIL WHEN NOT IN
USE. KEEP CORD CLEAR OF
MOVING PARTS.
REV.
TREND
TREND
TILT
LEFT
TILT
RIGHT
BACK
UP
BACK
DOWN
TABLE
UP
TABLE
DOWN
SLIDE
HEAD
SLIDE
FOOT
LEG
UP
LEG
DOWN
FLEX REFLEX
KIDNEY
UP
KIDNEY
DOWN
RETURN
BRAKE
UNLOCK
RETURN/CTR POWER BATT
BATT
*
PRESS TO
LOCK BRAKES
*
TILT
LEFT
TILT
RIGHT
20˚ 20˚
ELITE/
3500B
CAUTION
HANG PENDANT CONTROL
ON SIDE RAIL WHEN NOT IN
USE. KEEP CORD CLEAR OF
MOVING PARTS.
REV.
TREND
TREND
TILT
LEFT
TILT
RIGHT
BACK
UP
BACK
DOWN
TABLE
UP
TABLE
DOWN
SLIDE
HEAD
SLIDE
FOOT
LEG
UP
LEG
DOWN
FLEX REFLEX
KIDNEY
UP
KIDNEY
DOWN
RETURN
BRAKE
UNLOCK
RETURN/CTR POWER BATT
BATT
*
PRESS TO
LOCK BRAKES
*
90˚
40˚
45˚
BACK
DOWN
BACK
UP
e. Elevation. To raise table top, press the
TABLE-UP button (figure 3-10.). The table will lift a
patient weight of 500 pounds up to a maximum
height of 45". To lower the table top, press the
TABLE-DOWN button. The table top will go down
to a minimum height of 26" (minus pad).
Figure 3-10. Elevation Function
ELITE/
3500B
CAUTION
HANG PENDANT CONTROL
ON SIDE RAIL WHEN NOT IN
USE. KEEP CORD CLEAR OF
MOVING PARTS.
REV.
TREND
TREND
TILT
LEFT
TILT
RIGHT
BACK
UP
BACK
DOWN
TABLE
UP
TABLE
DOWN
SLIDE
HEAD
SLIDE
FOOT
LEG
UP
LEG
DOWN
FLEX REFLEX
KIDNEY
UP
KIDNEY
DOWN
RETURN
BRAKE
UNLOCK
RETURN/CTR POWER BATT
BATT
*
PRESS TO
LOCK BRAKES
*
TABLE UP
TABLE DOWN
26"
45"
