Figure 3-13. Flex/Reflex Positioning
CAUTION
The Ieg section may hit the table base
or floor if both the leg and elevation
systems are placed in their full down
position.
NOTE
If the top is slid toward the head end, the
leg section will only go down 45°.
h. Flex Positioning. To place the table top in a
flex position from horizontal, press the FLEX button
(figure 3-13). To return the table top to a horizontal
position or into a reflex position, press the RE-
TURN or REFLEX button.
NOTE
When FLEX button is activated and if
the top is slid toward the foot end, the
back section will not go below horizon-
tal.
g. Leg Section. To lower the leg section, press
the LEG-DOWN button (figure 3-12). The leg
section will go down to 98° below horizontal. To
raise the leg section, press the LEG-UP button.
The leg section will go up to 2° above horizontal.
f. Top Slide. To move the table top toward the
head end, press the SLIDE HEAD button. From
center position, the top will slide up to 7-1/2". See
figure 3-11.
NOTE
If the leg section is positioned more than
45° below horizontal, the top will not
slide toward the head end.
To move the table top toward the foot end, press the
SLIDE FOOT button. From center position, the top
will slide up to 13-1/2". Slide function will stop and
Slide/Ctr Indicator will illuminate when table is cen-
tered.
NOTE
If the back section is positioned below
horizontal, the top will not slide toward
the foot end.

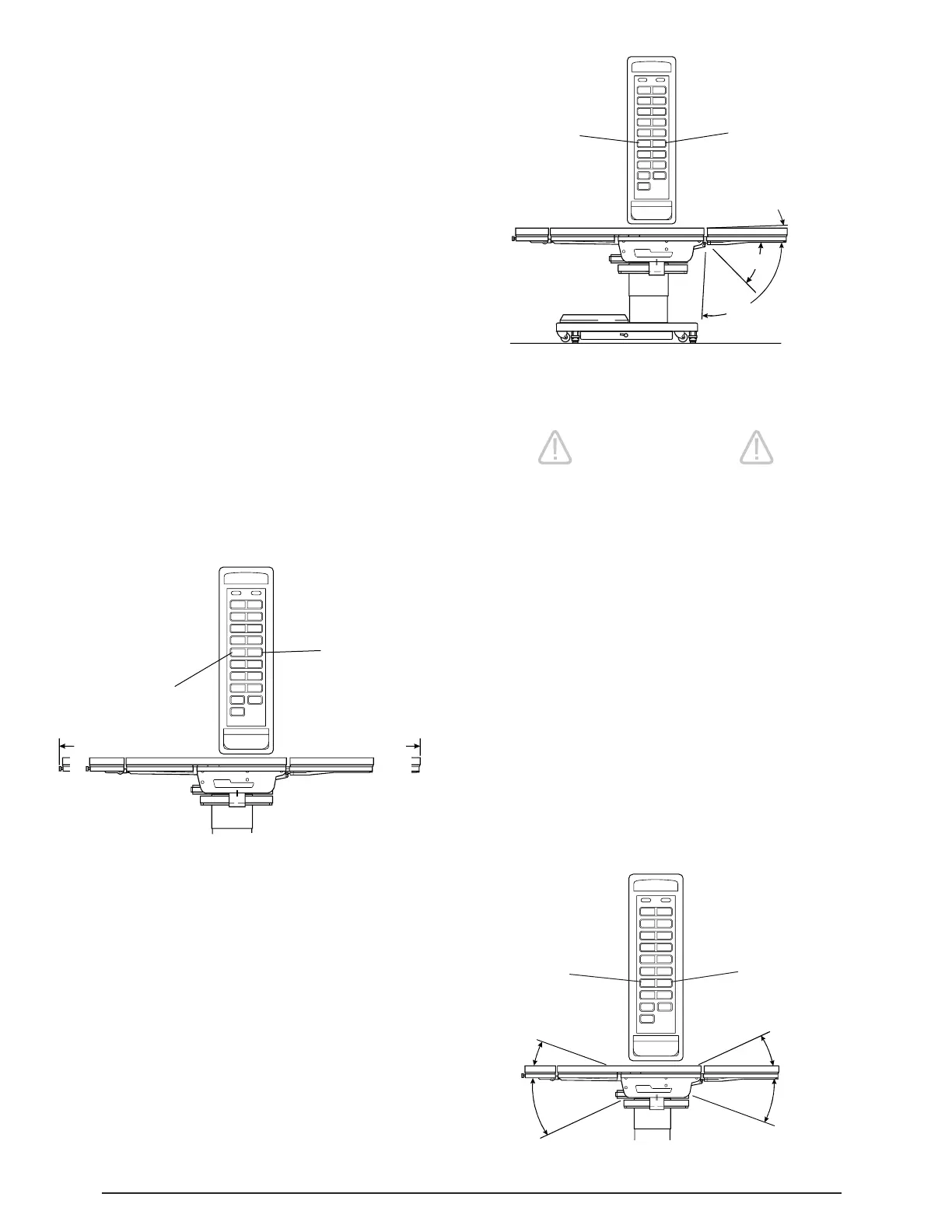

Figure 3-12. Leg Section Positioning
Figure 3-11. Top Slide
ELITE/
3500B
CAUTION
HANG PENDANT CONTROL
ON SIDE RAIL WHEN NOT IN
USE. KEEP CORD CLEAR OF
MOVING PARTS.
REV.
TREND
TREND
TILT
LEFT
TILT
RIGHT
BACK
UP
BACK
DOWN
TABLE
UP
TABLE
DOWN
SLIDE
HEAD
SLIDE
FOOT
LEG
UP
LEG
DOWN
FLEX REFLEX
KIDNEY
UP
KIDNEY
DOWN
RETURN
BRAKE
UNLOCK
RETURN/CTR POWER BATT
BATT
*
PRESS TO
LOCK BRAKES
*
LEG UP
LEG DOWN
2˚
98˚
45˚
