3 Working with the Titrator TitroLine
®
5000
3.1 Front Keyboard

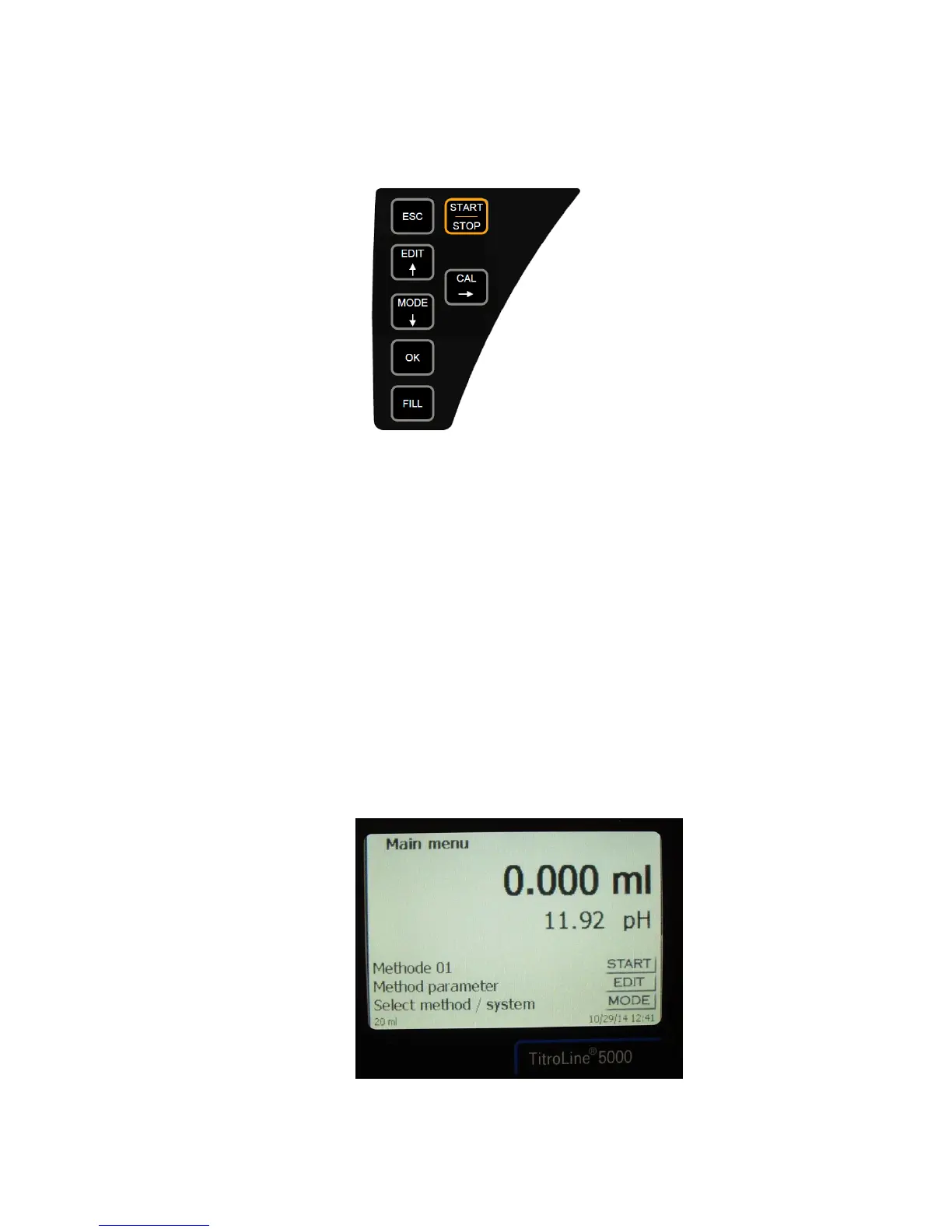

Fig. 16
Apart from alphanumeric input (a-z, A-Z, 0-9) and a few other functions, almost all functions can be
performed using the front keyboard.
<Mode>: Methods selection, rinsing, system settings
<EDIT>: Changing the current method, new method, copy and delete method
<ESC>: <ESC> will take you back to the previous menu level.
<START/STOP>: Start and Stop of a current method
<CAL> <CAL> starts the pH calibration
<FILL>: Filling the unit
< > Arrow up: Selection of individual menus and numeric values
< > Arrow down: Selection of individual menus and numeric values
<→> Arrow right: change position in entry menu
The individual functions are described in detail in Chapter 3.4, External PC Keyboard.
3.2 Display
The display consists of a graphical LCD display with a resolution of 320 x 240 pixels.
It also offers the possibility to display graphics, e.g. the measuring curve while or after the titration
is/was running.
Abb. 17
