(Model K) Page 31
7. Preparing the SLE4000
Caution: the SLE4000 ventilator weighs 21.8kg fully assembled. Care should
be taken when handling the ventilator.
If preparing to work on both the electronic and pneumatic units of the SLE4000 remove the
ventilator from the stand and place it on a flat stable surface. The SLE4000 ventilator is
attached to the trolley or pole by two screws with shake proof washers. Retain the screws
and washers for re-attachment of the ventilator.
If work is to be carried out on the electronic unit only, it is advisable to leave the ventilator
attached to the trolley.

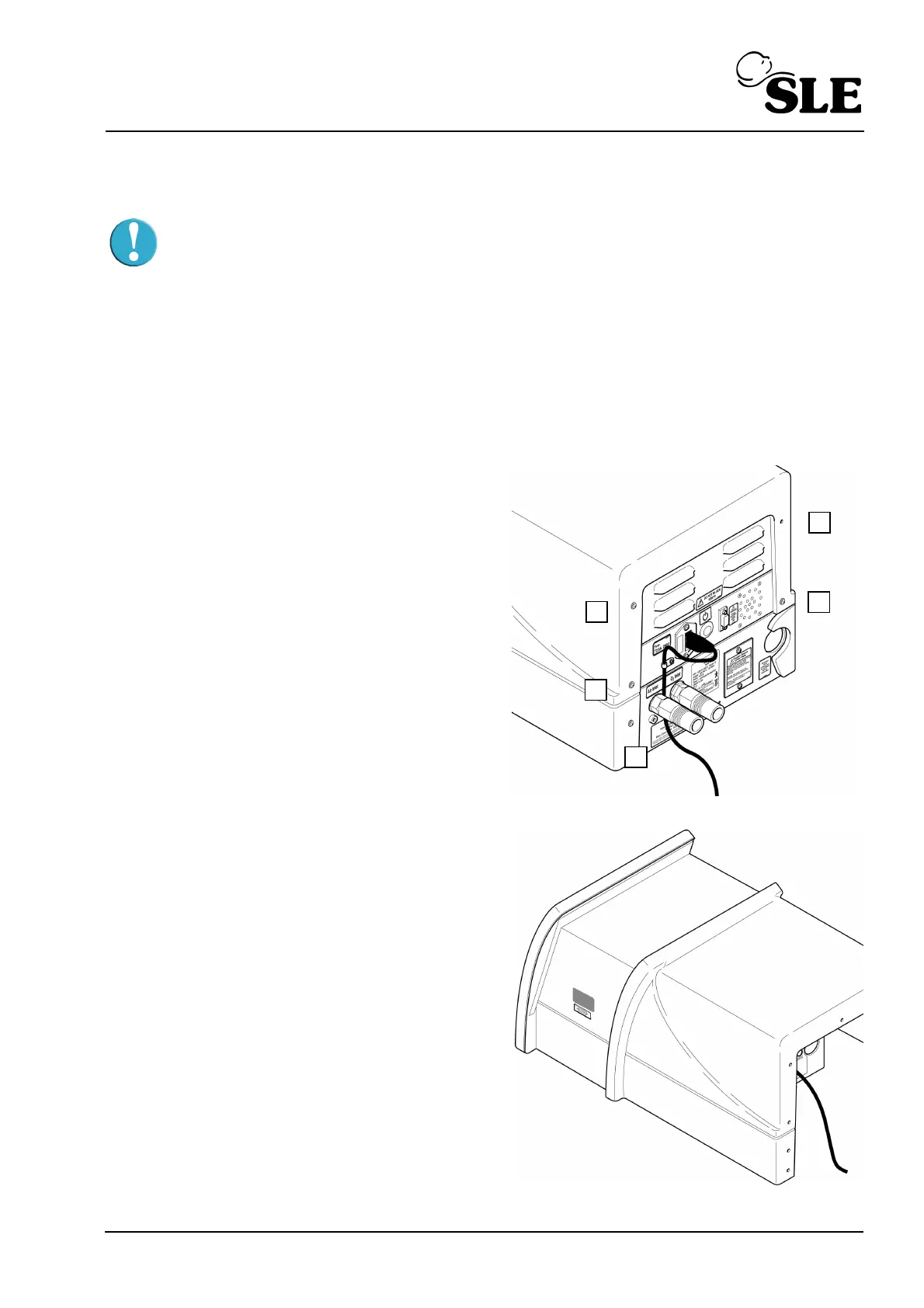

Step 1 Remove the five fixing screws (A) from
the rear cover.
Step 2 Slide the rear cover towards the rear of
the machine. When the lip has been disengaged
lift the cover off.
