SLE SLE4000 - A0763;4 B Board Hardware Identifier

(Model K) Page 53
10.2 A0763/4B Board Hardware Identifier
The A0763/4B board has a group of resistors that allow the software to recognise
the pneumatic unit configuration. There are 10 hardware idents possible on the
board.

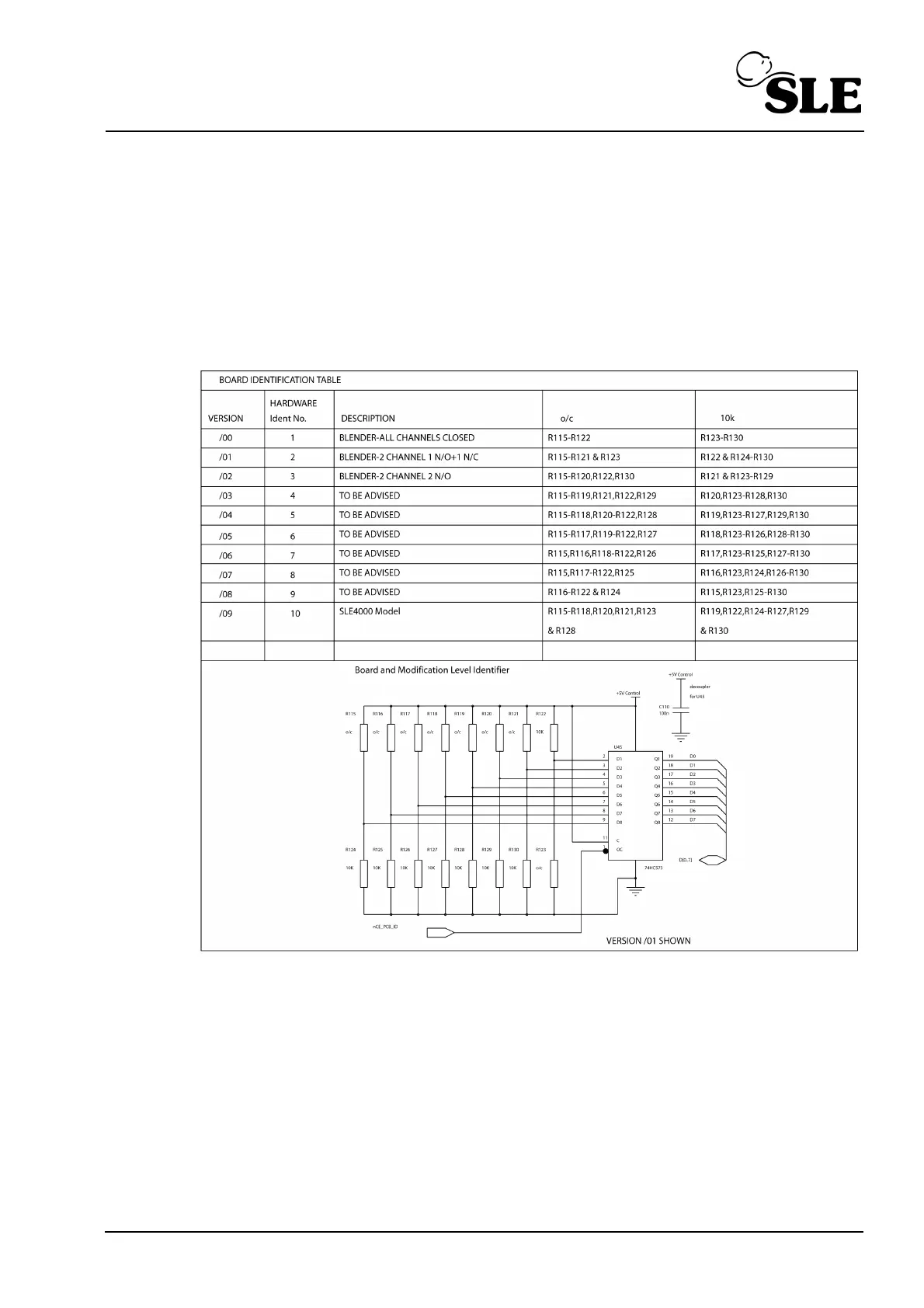

The table below outlines the resistor groups to produce specific hardware ID’s.
The SLE4000 Model B ventilator uses Hardware Ident 10.
