68 MN.00273.E - 004

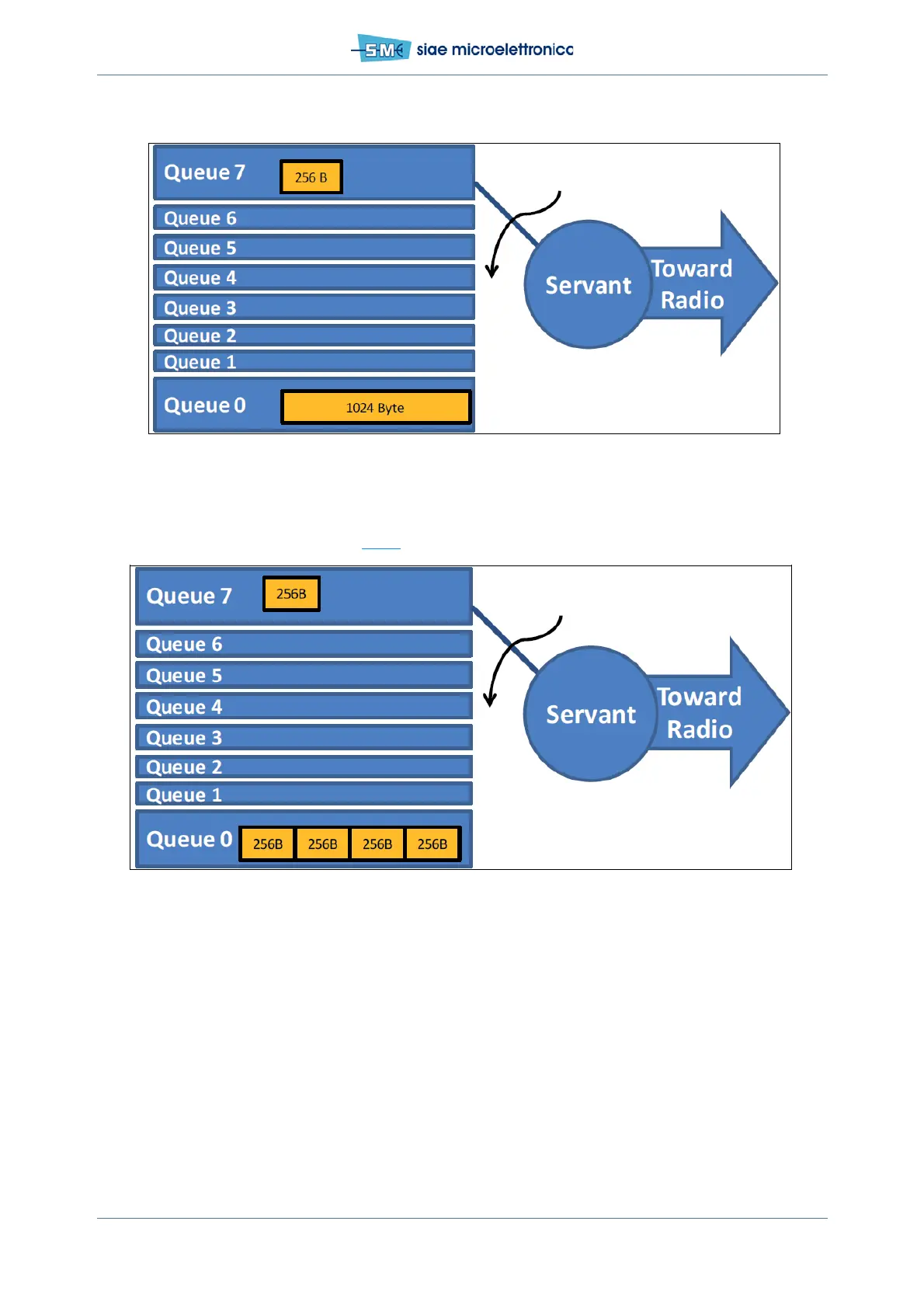

Fig.22 - Ethernet frame fragmentation disabled
With the fragmentation enabled the time that the packet in higher queues have to wait is smaller. With
fragmentation enabled the radio divides the 1024 byte packet into 4 packets of 256 Bytes and the servant
can transmit the first frame of 256 Byte in the lower queue and then transmit the high priority traffic, re-
ducing the jitter in the network, see Fig.23
.
Fig.23 - Ethernet frame fragmentation enabled
Enhanced VLAN Management
The SIAE switch provides the following enhanced VLAN management features:
• VLAN rewriting
• Selective QinQ based on VLAN and IEEE 802.1p priority
