9| INSTALLING YOUR SMART BOARD 685IX PREMIUM INTERACTIVE
WHITEBOARD SYSTEM
Installing SBA speakers and cables
SMART recommends that you install your SMART Board Audio (SBA) speakers on
the wall on each side of the interactive whiteboard instead of attaching them to the
interactive whiteboard.
NOTES
• You can install the speakers now or after you’ve installed the interactive
whiteboard.
• The following procedures show the main speaker mounted to the right of the
interactive whiteboard, which maintains the correct left to right stereo image. If
control module accessibility or proximity to a power outlet requires it, you can
mount the main speaker on the left and change the routing of the speaker
cables accordingly.
To install the SBA
speakers and cables
1. Refer to the SBA Speakers for SMART Board Interactive Whiteboards installation
guide provided with the speakers to install them.
2. Route the 1/8" (3.5 mm) phone plug end of the phone-to-dual-RCA audio cable
(included with the FUWM-600) up to the projector’s wire management clip, and
then open the clip.
3. While holding the other cables in place, place the audio cable beside them,
leaving enough length to connect to the projector’s phone jack.
NOTE
Don’t let the cables cross as they pass through the clip.

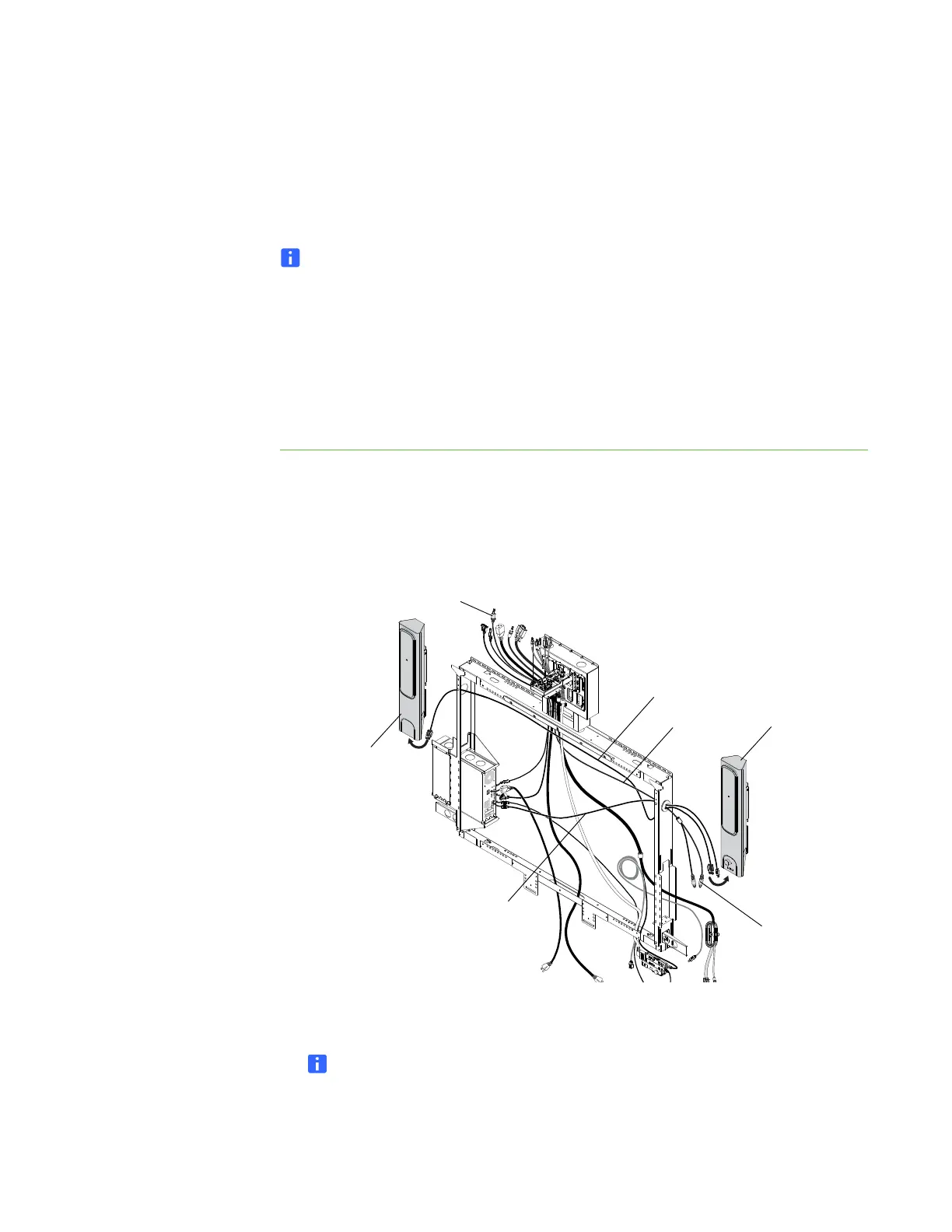

Main Speaker
Dual RCA Plugs
Speaker Cable
Projector
Audio Cable
Phone Plug
Computer USB Cable
Second
Speaker
