8| INSTALLING YOUR SMART BOARD 685IX PREMIUM INTERACTIVE
WHITEBOARD SYSTEM
Installing the computer cables
You’re unable to access the computer’s rear connection panel after you install the
interactive whiteboard, so you must connect the computer cables now.
To install the computer
cables
1. Connect the audio, video, USB and power cables to the computer’s rear
connection panel.
2. Route the power cable through an opening in the bottom or side of the wall mount
closest to your wall outlet.
3. Route the USB cable through the opening in the lower right of the bottom frame of
the wall mount, and then connect it to the ECP’s captive USB connector.
4. Route the audio and video cables up to the projector’s wire management clip, and
then open the clip.
5. While holding the projector’s power cable in place, place the audio and video
cables beside the power cable, leaving enough length to connect them to the
projector’s connectors.
NOTE
Don’t let the cables cross as they pass through the clip.
6. Close the wire management clip.

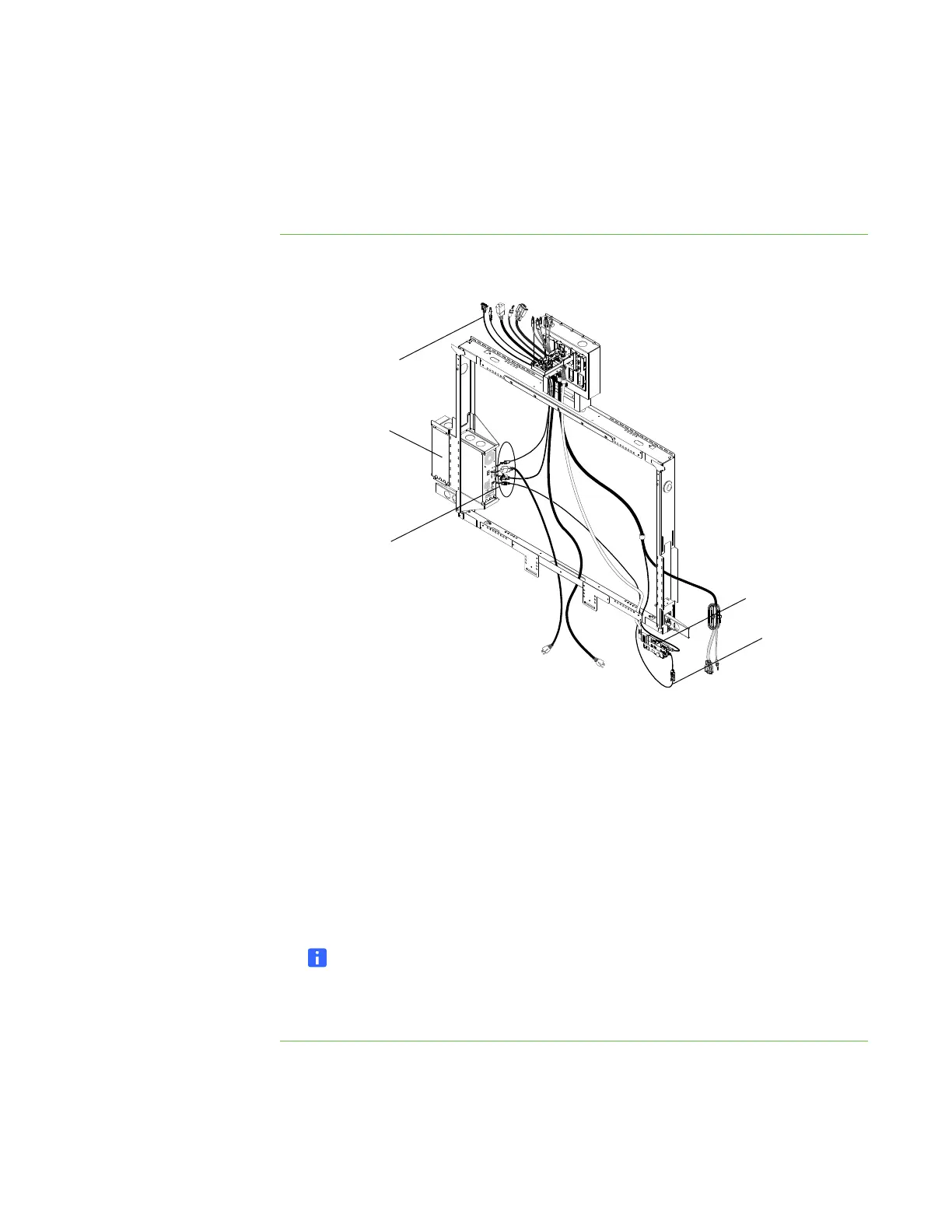

USB Cable
Computer
Audio, Video,
USB and
Power Cables
Computer
ECP
Audio and
Video Cables
To Next Page
