Connector diagrams
Side and bottom connector panels

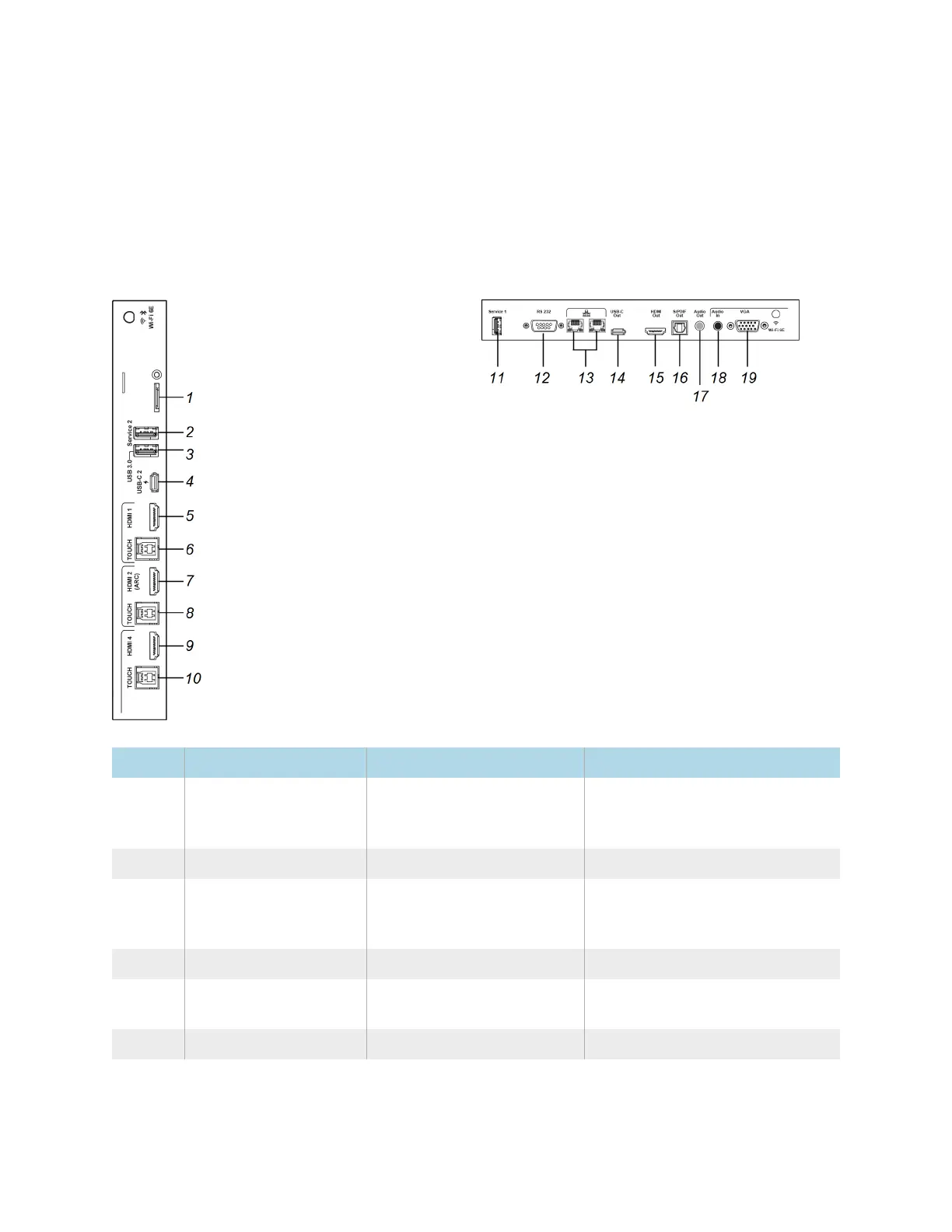

This diagram and table present the connectors on the display’s side and bottom connector panels:
Side Bottom
No. Connector Connects to Notes
1 microSD microSD card This connector features a security
cover to prevent theft of an
installed microSD card.
2 USB 3.2 Gen 1 Type-A N/A This connector is a service port.
3 USB 3.2 Gen 1 Type-A Supported USB drives,
peripherals, and other
devices
SeePage23
4 USB Type-C USB Type-C 2 input
SeePage16
5 HDMI 2.1 In HDMI 1 input
(videoandaudio)
SeePage16
6 USB 3.2 Gen 1 Type-B HDMI 1 input (touch)
SeePage16
