Smart temp Apollo - TYPICAL SYSTEM WIRING DIAGRAMS; COOL ONLY

COOL ONLY
Switch Settings
Sw1 = OFF (Heat / Cool)
Sw2 = ON (Thermostat controls fan)
Sw3 = OFF (No affect on setup)
Sw4 = OFF (Leave OFF)
In Installer Menu, set 4 Fn = C (Cool Only)

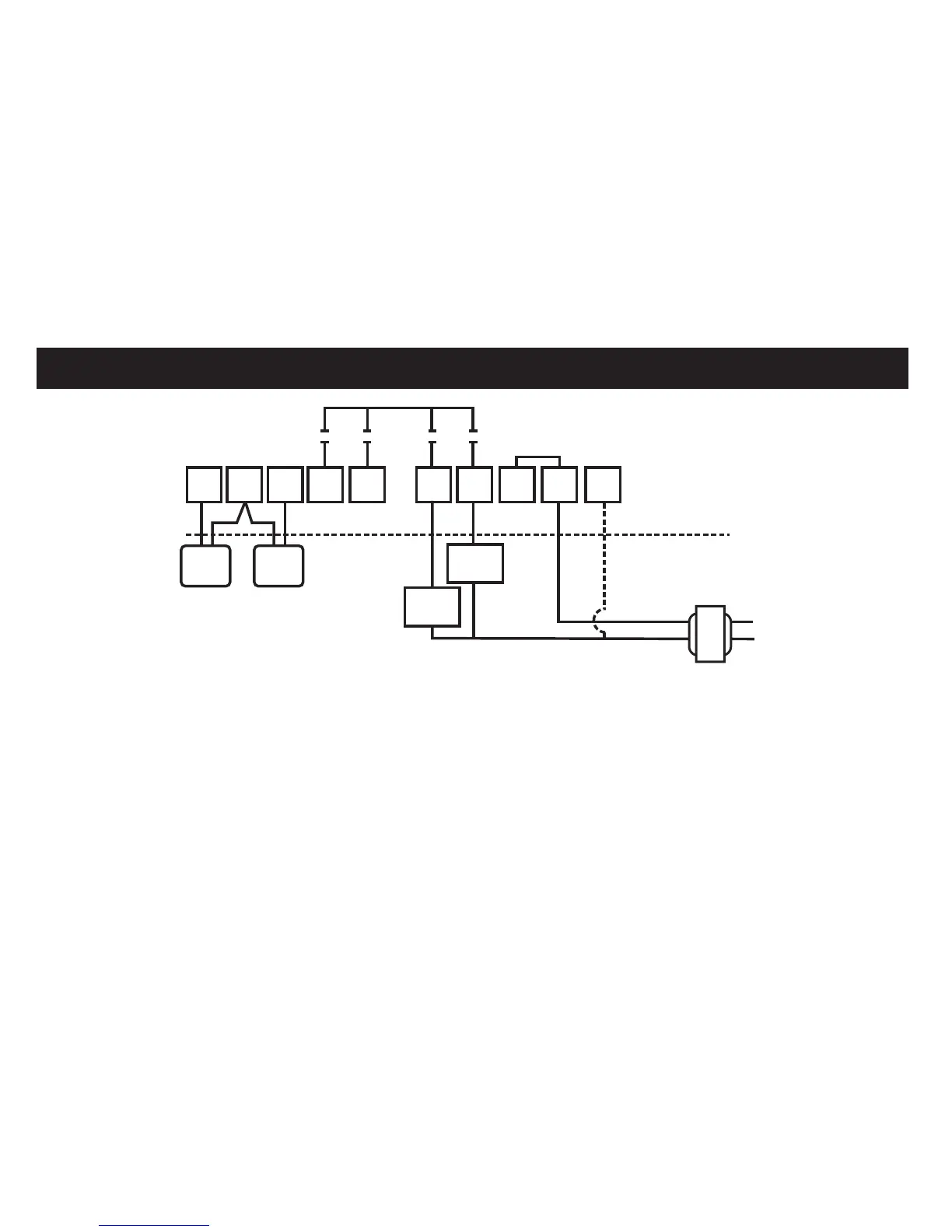

TYPICAL SYSTEM WIRING DIAGRAMS
16
SC
In
A
Y G
R
Com
C
COOL 1
RELAY
FAN 1
RELAY
LINE
24 V
W
Out
OPTIONAL
REMOTE SENSOR
TERMINALS
THERMOSTAT
EQUIPMENT
Factory Link
24C Optional
OUTDOOR
SENSOR
INDOOR
SENSOR
