REMOTE SENSOR INSTALLATION
REMOTE SENSORS
There are two type of remote sensors. The RS-1 is a single sensor that can be used
indoors or outdoors. The RS-2 contains two sensors. A combination of both sensors can be
used for indoor temperature averaging with or without the onboard sensor. Use separate
18-2 shielded cable when wiring sensors.
INDOOR SENSOR WIRING
When the RS-1 is used as an indoor sensor, the 44-800 can be configured to allow only
the remote sensor to control the temperature or a combination of remote and onboard
sensors can be used for temperature averaging. Refer to 16:TT in the installer setup menu

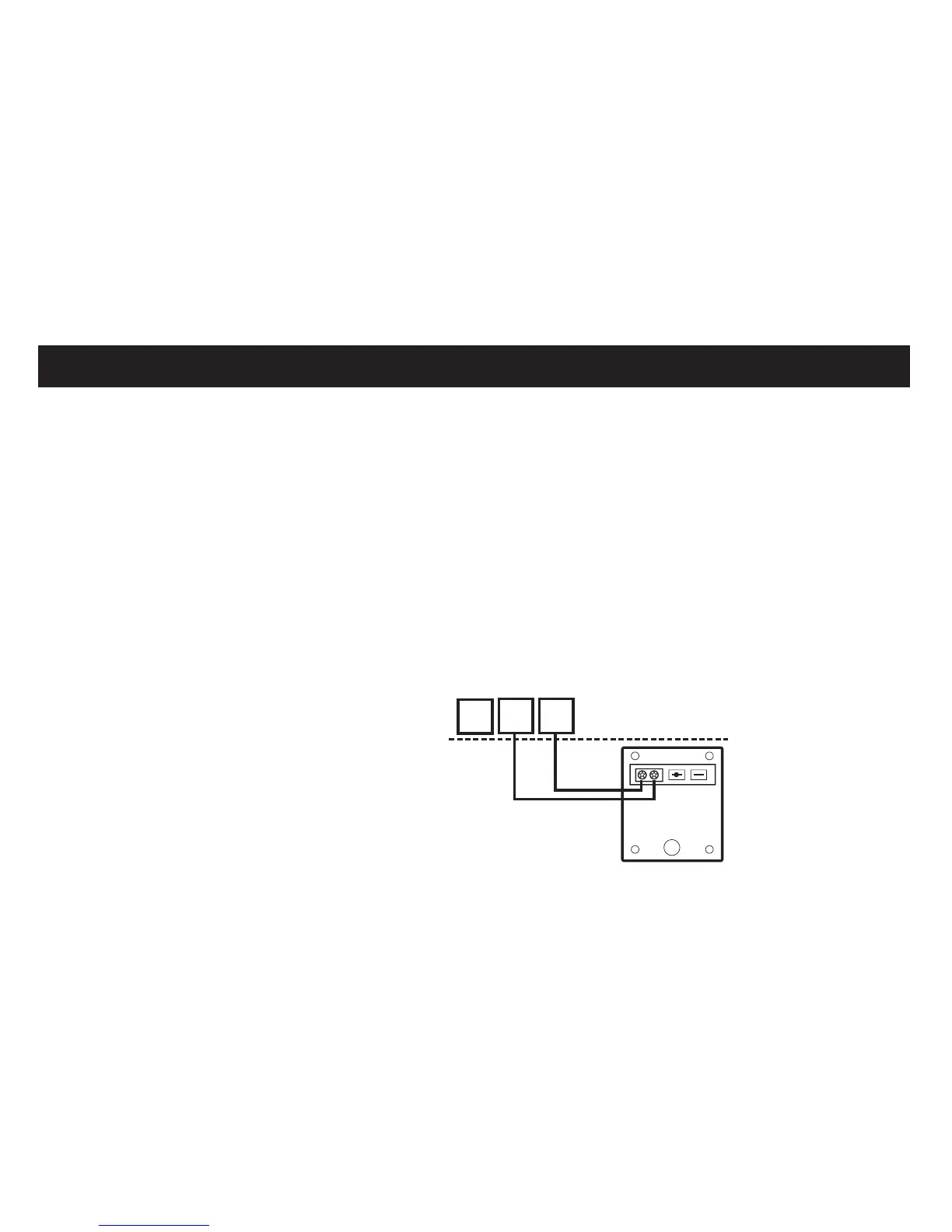

to select the proper remote sensor option. Indoor sensor wires to terminals S1 and SC.
(FIGURE 5)
OUT
SC IN
RS-1
SENSOR
FIGURE 5
47
Note
If using outside air or remote room
temperature sensor(s) battery life will be
drastically reduced.
If using remote sensors it is highly
recommended to power the 44-800 from 24V
