OUTDOOR SENSOR WIRING
When the RS-1 is used as an outdoor sensor, the 44-800 will display the outside air
temperature as well as control high and low balance points for fossil fuel systems. Refer to
16:TT in the installer setup menu to select the proper sensor option. The outdoor sensor
wires to the Sensor Common and Outside air terminals. Figure 7 illustrates both an indoor
and outdoor sensor configuration.
Out
SC
In
RS-1
SENSOR
RS-1
SENSOR
INDOOR SENSOROUTDOOR SENSOR

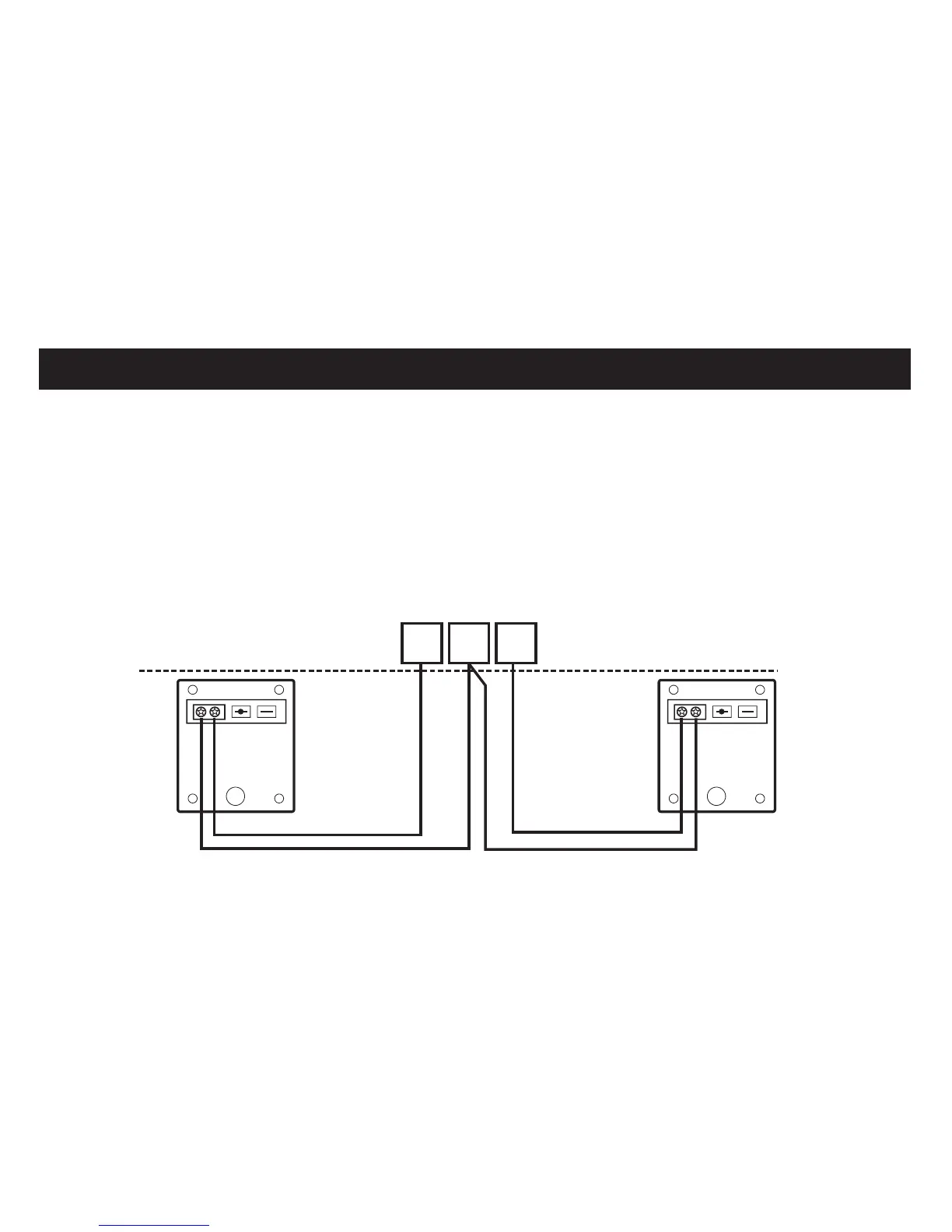

REMOTE SENSOR INSTALLATION
FIGURE 7
