CHAPTER 3
CONNECTING POWER AND DEVICES
29 smarttech.com/kb/171167
Connectorpanel

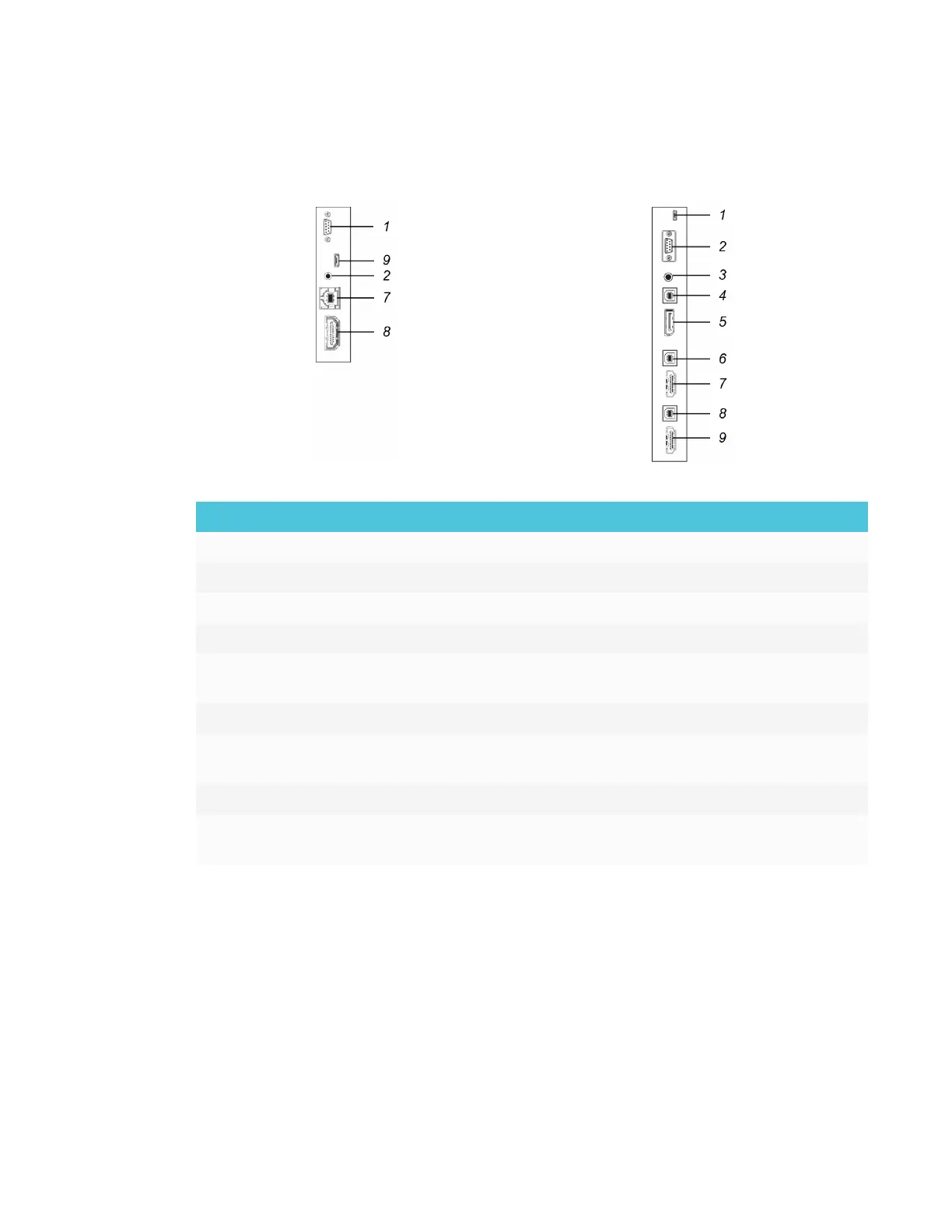

The following diagram and table present the connectors on the display’s connector panel:
SPNL-6055 and SPNL-6075 All other models
No. Connector Connects to Notes
1 USB Micro-B [N/A] This connector is a service port.
2 RS-232 Room control system See page97.
3 Stereo 3.5 mm External speakers See page25.
4 USB Type-B DisplayPort input (touch) See page25.
5 DisplayPort in DisplayPort input
(videoandaudio)
See page25.
6 USB Type-B HDMI2 input (touch) See page25.
7 HDMI in HDMI2 input
(videoandaudio)
See page25.
8 USB Type-B HDMI1 input (touch) See page25.
9 HDMI in HDMI1 input
(videoandaudio)
See page25.
