SMART EQ forfour 2018 - Fuse Allocation

Tail lamps
Bulb Type
Tail lamp and brake lamp P21 5 W
Rear foglamp P21 W
Bulb Type
Reversing lamp W 16 W
Turn signals PY 21 W

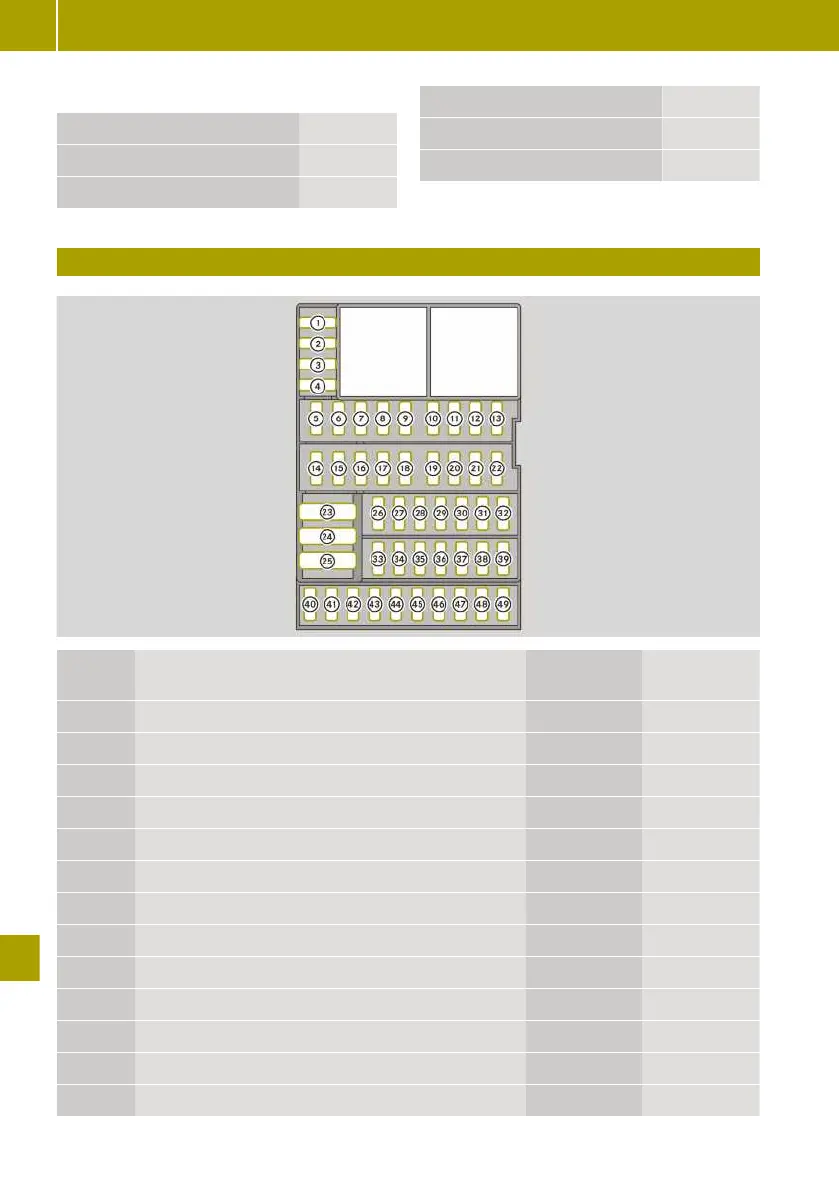

Fuse allocation
No. Consumer Current Colour cod-
ing
1 Starter motor 5 A Brown
2 Power steering control unit 5 A Brown
3 Multifunction lever 5 A Brown
4 Airbag 5 A Brown
5 ‑ ‑ ‑
6 Instrument cluster 10 A Red
7 Horn, alarm system 15 A Blue
8 Power supply control unit 10 A Red
9 Power supply control unit 10 A Red
10 Central control unit 20 A Yellow
11 Central control unit 15 A Blue
12 Central control unit 10 A Red
13 Central control unit 15 A Blue
216
Fuse allocation
>> Technical data.
