MGC300 Genset Controller User Manual
MGC300 Genset Controller Version 1.1 2020-01-04 Page 24 of 27
11 TYPICAL APPLICATION

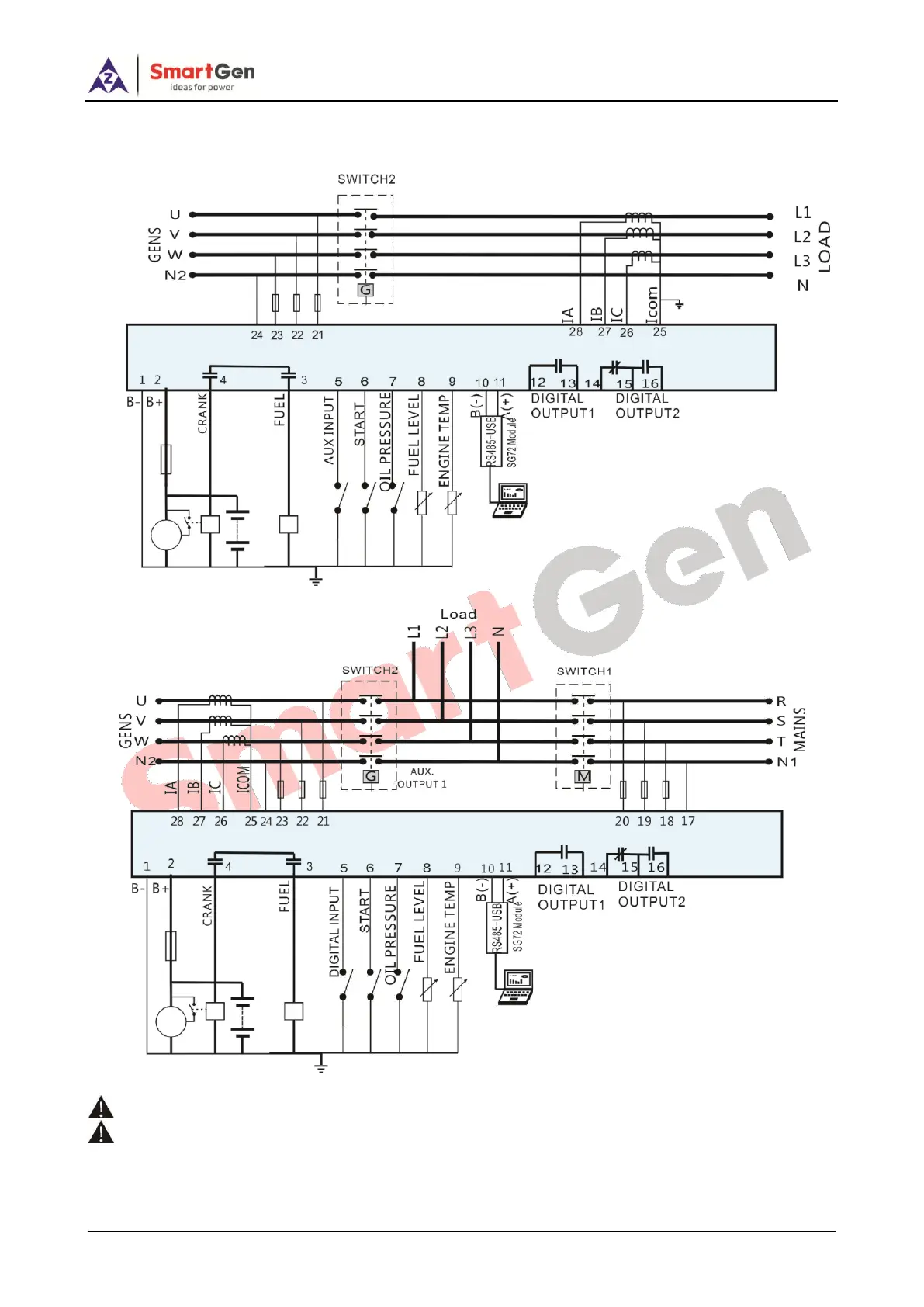

Fig. 5 MGC310 Typical Application Diagram
Fig. 6 MGC320 Typical Application Diagram
CAUTION! Crank, fuel output ports shall expand big capacity relays;
CAUTION! When sensor port is configured to "Figure High Input Active", hung up means High Electrical Level, and
Power positive connected is prohibited.
