4.3 INDICATOR DESCRIPTION

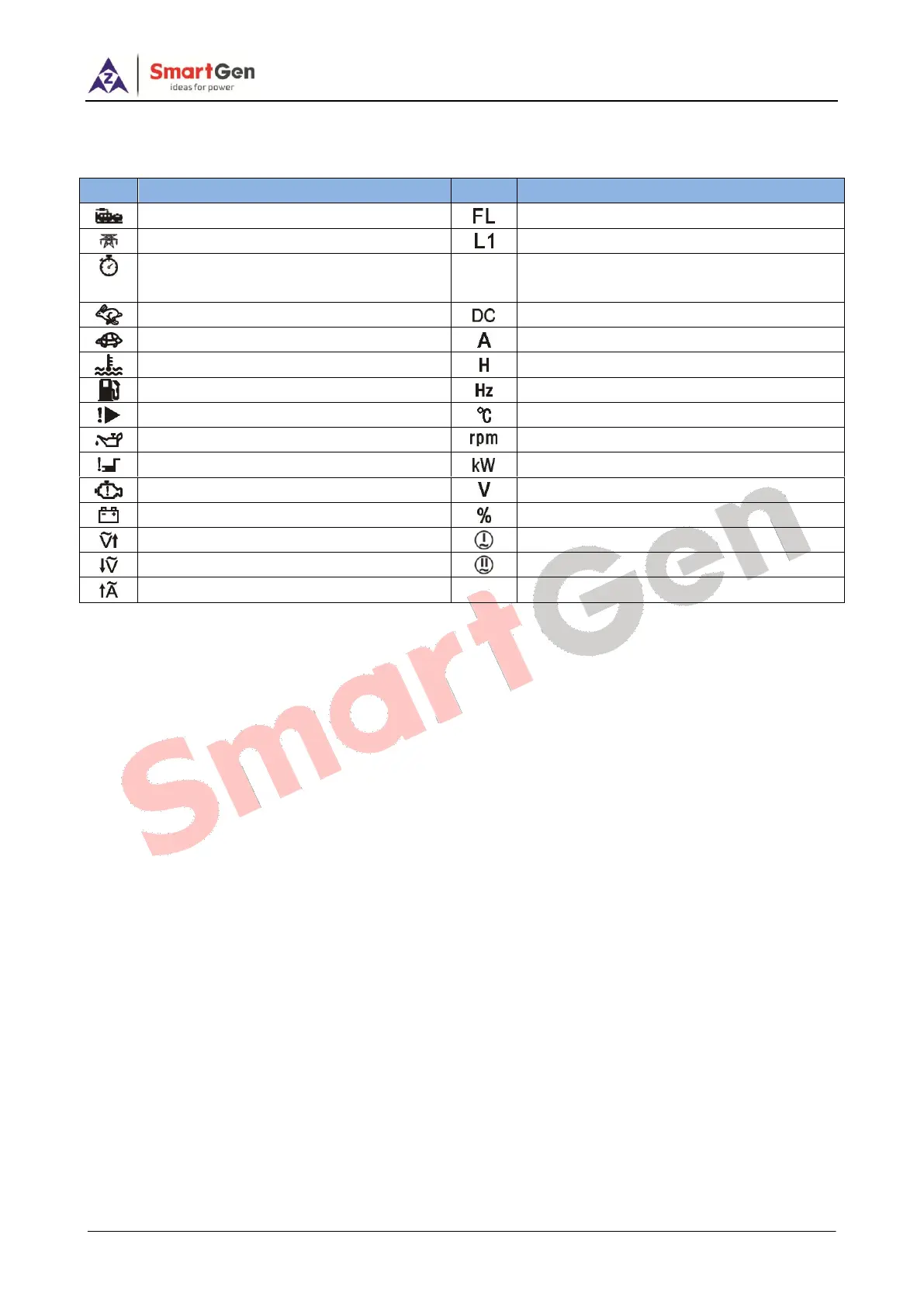

Table 4 LCD Icons
Icon
Definition
Icon
Definition
Generating power indicator
Level sensor indicator
Mains power indicator
AC phase voltage indicator
Start countdown (crank disconnect is
satisfied)
L12
AC line voltage indicator
Over frequency alarm
Battery voltage indicator
Under frequency alarm
Load current unit
Temp high alarm
Accumulated running time unit
Fuel level low
Frequency unit
Outside input alarm
Temperature unit
Engine oil pressure low alarm
Speed unit (r/min)
Crank failure
Active power unit
Stop failure
Voltage unit
Battery voltage abnormal
Percentage
Gen voltage high
I# Mains Close
Gen voltage low
II# Gen Close
Load over current
