HGM6100U Series Automatic Control Module

HGM6100U Automatic Genset Controller ISSUE 2014-10-28 Version 1.2 Page 8 of 39

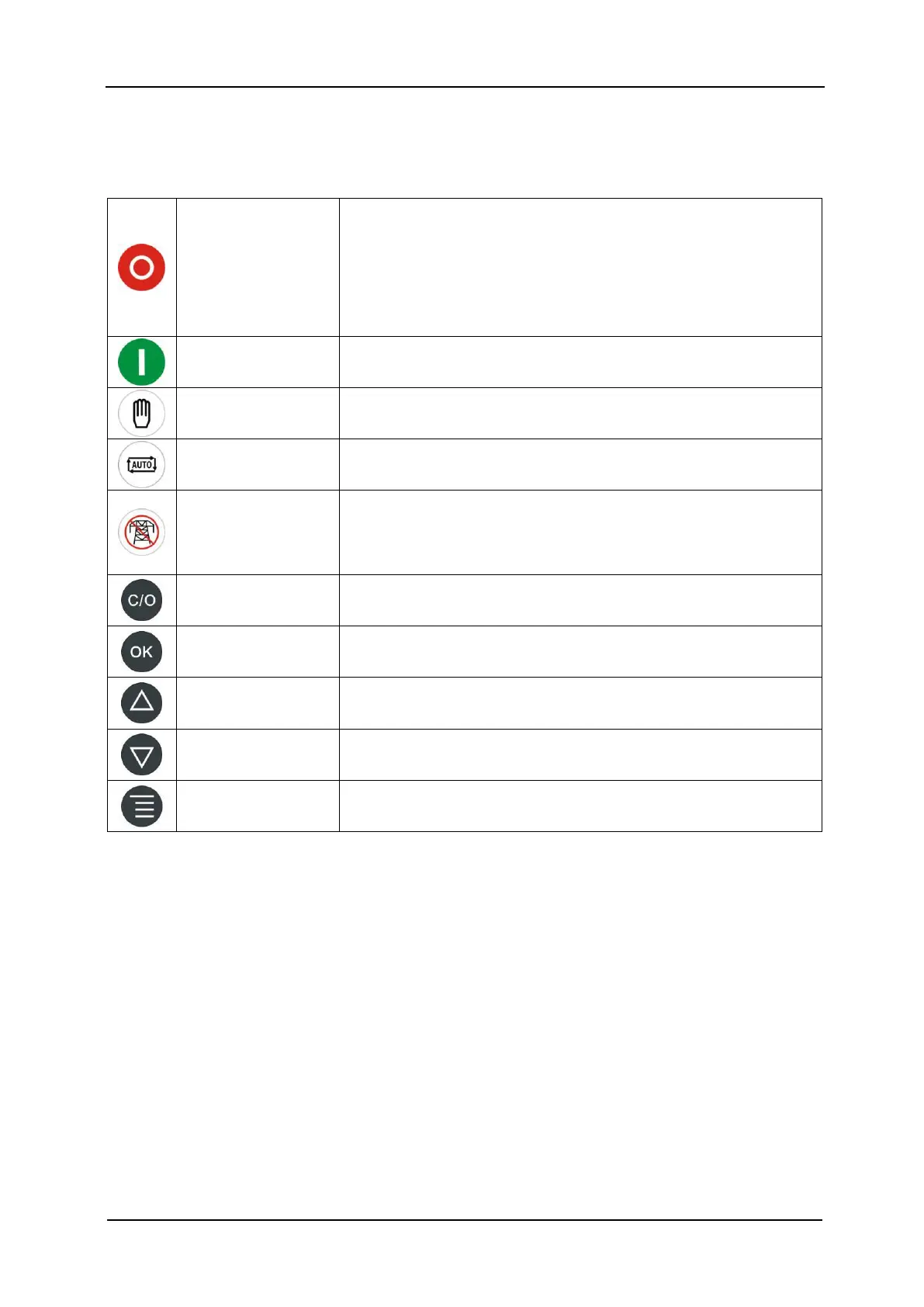

4 OPERATION

4.1 KEYS DSCRIPTION

Stop/ Reset

Can stop generator under Manual/Auto mode; Can reset

shutdown alarm; Press this key at least 3 seconds to test

panel indicators are OK or not(lamp test);

During stopping process, press this key again can stop

generator immediately.

Start Start genset under Manual or Manual Test mode.

Manual Pressing this key will set the module as Manual mode.

Auto Pressing this key will set the module as Auto mode.

Running with load

Controller is under manual testing mode.

Under this mode, gen-set will run automatically with load

when gens normal. (HGM6110UC without)

Gens Close/Open Can control gens to switch on or off in Manual mode.

Set/ Confirm

Shift cursor to confirm In parameters setting menu.

Up/Increase

Screen scroll;

Up cursor and increase value in setting menu.

Down/Decrease

Scroll screen;

Down cursor and decrease value in setting menu.

Pressing this key will set menu;

Again pressing this key can return main interface.
