6 CONNECTIONS

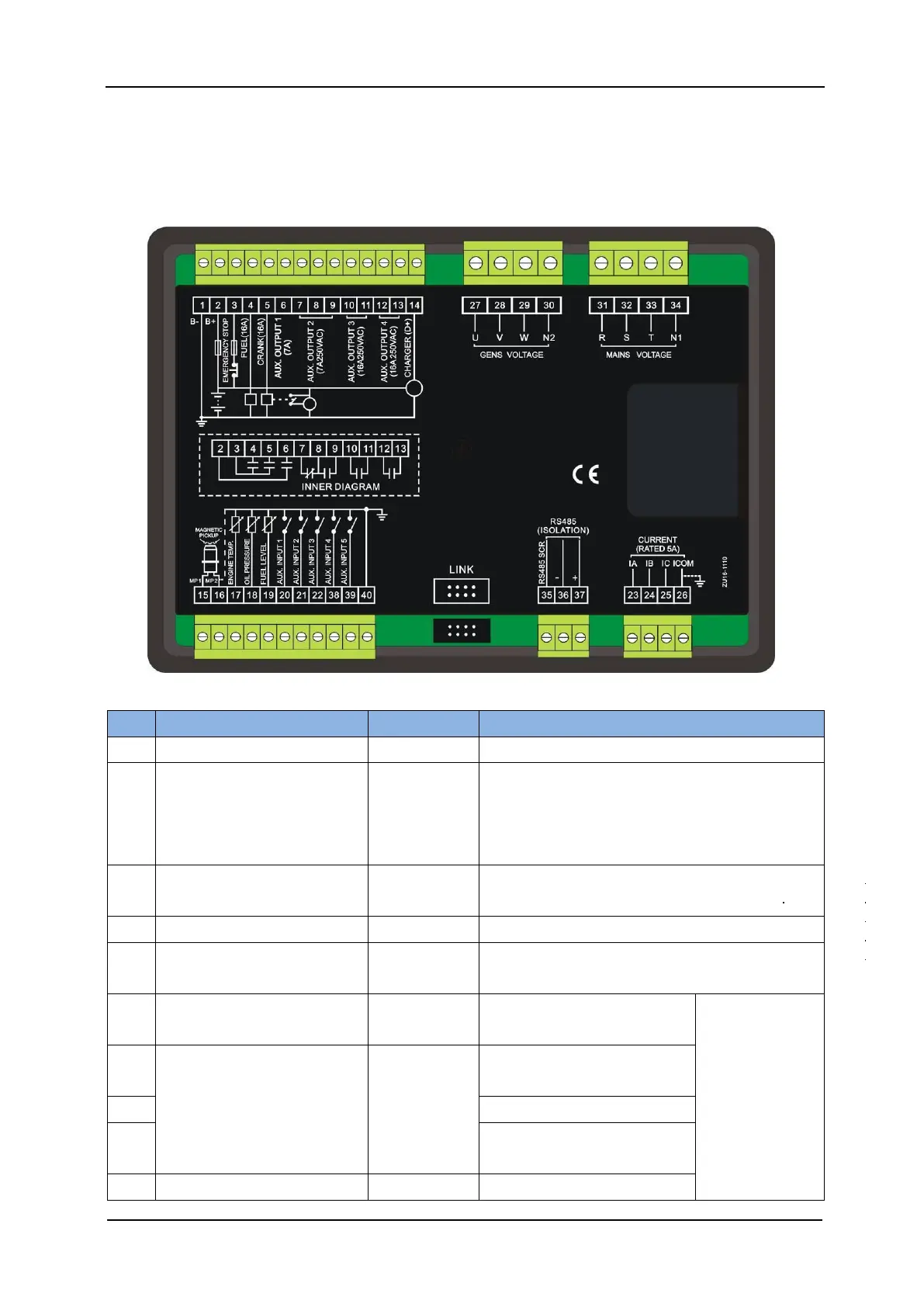

Compared with HGM6120UC, HGM6110UC doesn’t have 3-phase input terminal of
mains voltage. The back panel of HGM6110UC and HGM6120UC is as below.
Descriptions of terminal connection as following,
No. Function Cable Size Description
1 DC input B- 2.5mm
2
Connected to negative of starter battery
2 DC input B+ 2.5mm
2
Connected to positive of starter battery.
If wire length is over 30m, better to
double wires in parallel. Max. 20A fuse
is recommended.
3 Emergency Stop 2.5mm
2
Connected to B+ via emergency stop
button.
4 Fuel Relay Output 1.5mm
2
B+ is supplied by 3 points, rated 16A
5 Start Relay Output 1.5mm
2
B+ is supplied by 3 points, rated 16A
Connect to starter coil
6 Aux. Relay Output 1 1.5mm
2
B+ is supplied by 2
points, rated 7A
Reference
table 2
7
Aux. Relay Output 2 1.5mm
2
Normal close output, 7
A rated.
8 Relay common port
9
Normal open output, 7
A rated.
10 Aux. Relay Output 3 2.5mm
2
Relay normal open
