HGM7100N GENSET CONTROLLER USER MANUAL
HGM7100N Genset Controller 2020-09-10 Version1.2 Page 41 of 47
11 SENSOR SETTING
When reselect sensors, the sensor curve will be transferred into the standard value. For example,
if temperature sensor is SGH (120°C resistor type), its sensor curve is SGH (120°C resistor type);
if select the SGD (120°C resistor type), the temperature sensor curve is SGD curve.
When there is difference between standard sensor curves and using sensor, user can adjust it in
“curve type”.
When input the sensor curve, X value (resistor) must be input from small to large, otherwise,
mistake occurs.
If sensor is select as “Not Used”, sensor curve will not work.
The corresponding sensor must configured as “Not Used”if sensor only has alarm switch,
otherwise, alarm shutdown or warning may occur.
The headmost or backmost values in the vertical coordinates can be set as same as below,

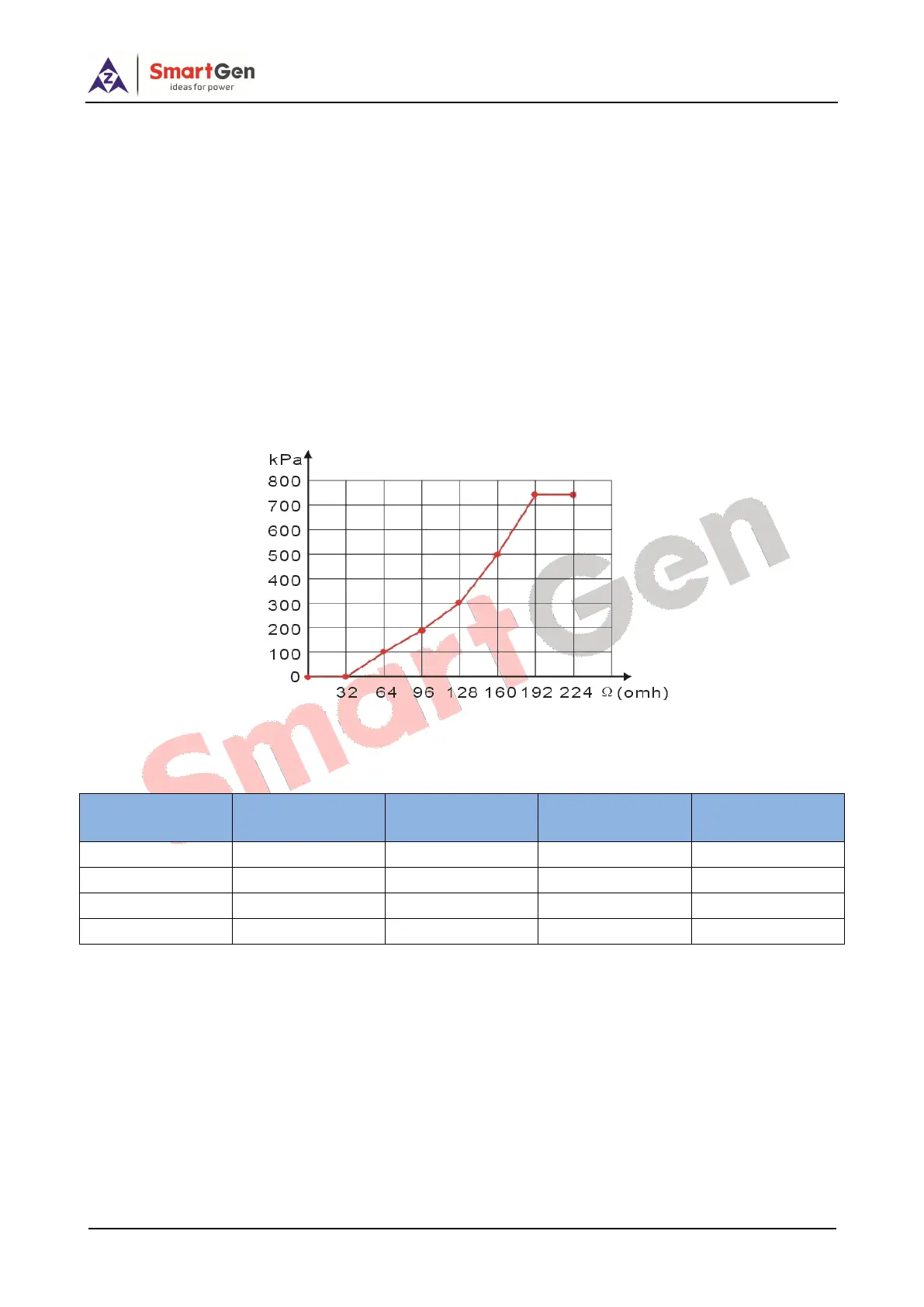

Fig. 4 – Curve Setting
Table 15 - Common unit conversion table
