FLEXIBLE ASSEMBLY SYSTEM FAS200
User Manual for FAS200 - 20 -
• Verification of position:
The body contains a housing in which the other
components are fitted. This housing must always be
facing upwards when the base is placed on the pallet
(in the next module). To check correct body
orientation, a check is made by a cylinder which
advances and inserts a cylindrical part in the body
housing. If the body is inverted, this part cannot enter
the housing, the cylinder cannot complete its stroke
and the magnetic detector on the cylinder is not
activated. A signal to this effect enters the PLC,
resulting in an indication that the position of the body
is incorrect.

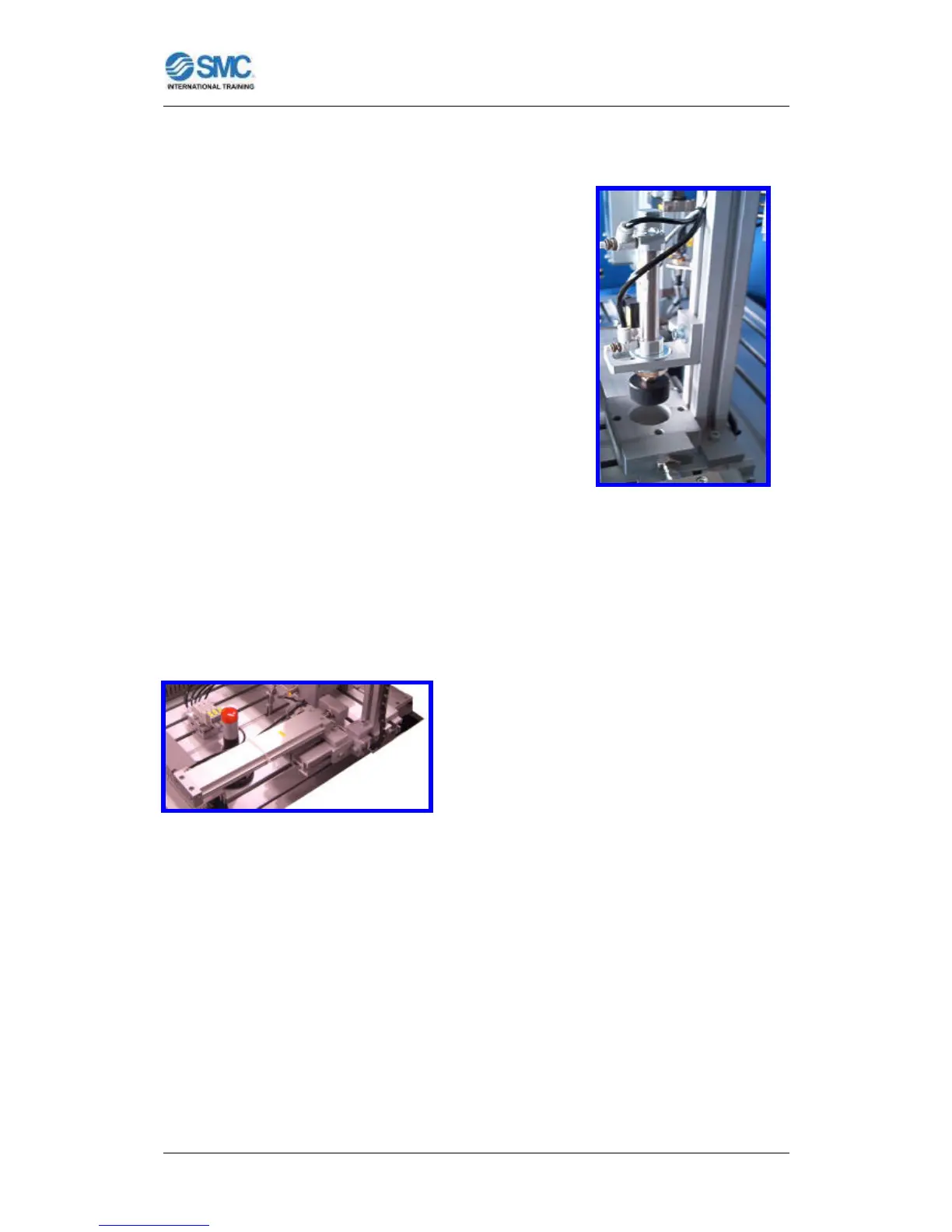

Figure 24: Orientation checker.
• Movement to transfer point:
A pneumatic cylinder with a pusher at its end is used to situate the body at the
point from which it will be loaded on the pallet on the following module.
The cylinder is rectangular, to prevent the
pusher from turning.
Figure 25: Cylinder with a pusher.
TECHNICAL DATA:
Dimensions:
Table of slotted aluminium, 450 x 582 mm. Height 900 mm.
Air treatment unit:
Filter to 5 µm, pressure regulator and pressure gauge.
