Chapter 5 Display and Setting of Various Functions
5.22 Communication Function HRSH Series
5-74

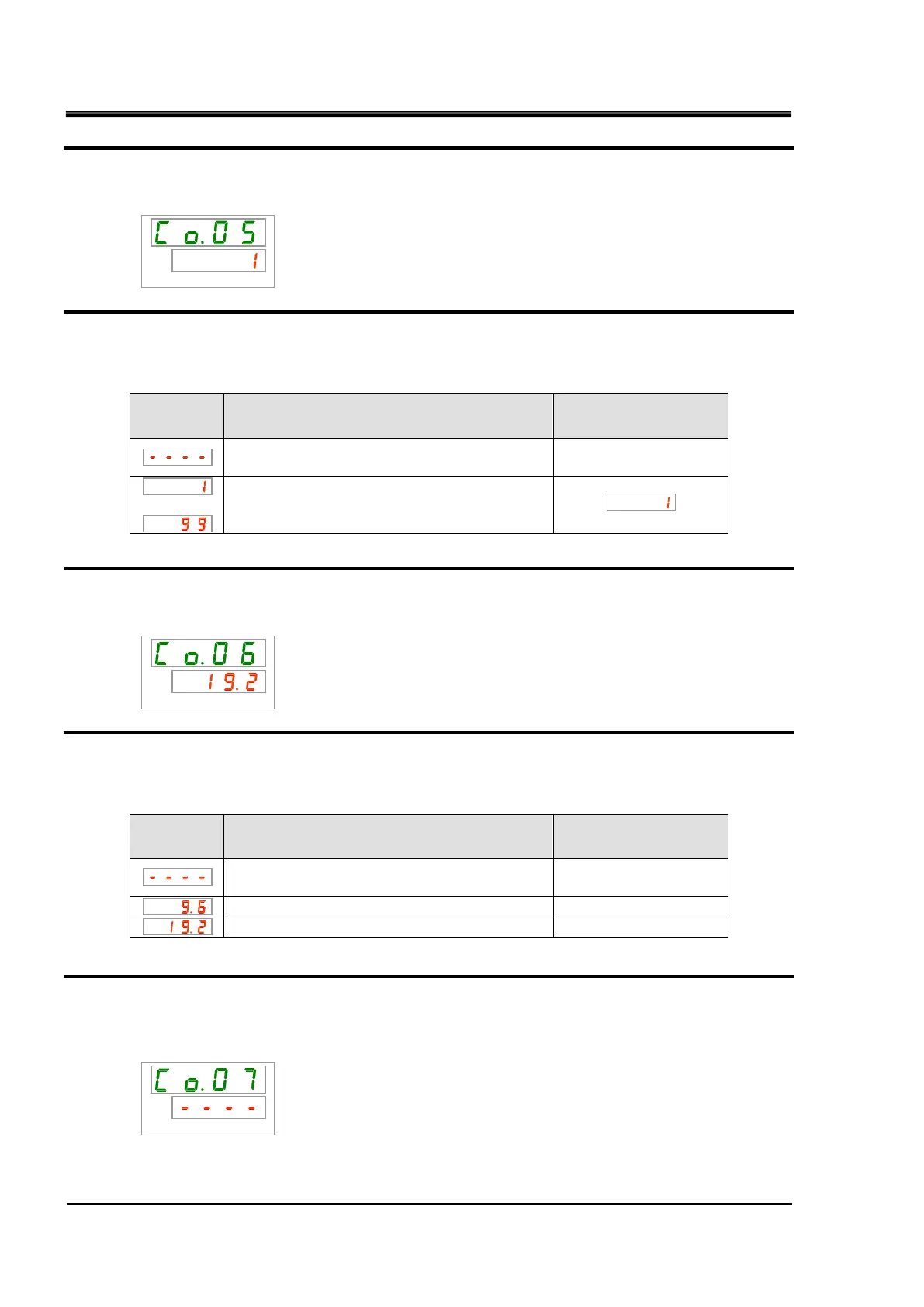

Setting/Checking: Slave addresses (MODBUS)
9. Press the [SEL] key once.
Setting screen of slave addresses (MODBUS) is displayed on the digital display.
10. Set slave addresses (MODBUS) with [▲] key or [▼] key, and press [SEL] key to enter.
Table 5.22-6 Slave address settings
Set value
Explanation
Default
Setting/checking is possible only when the serial
protocol is MODBUS.
to
Slave address setting for MODBUS
Setting range: 1 to 99
Setting/Checking: Communication speed (MODBUS)
11. Press the [SEL] key once.
Setting screen of the communication speed (MODBUS) is displayed on the digital display.
12. Set communication speed (MODBUS) with [▲] key or [▼] key, and press [SEL] key to
enter.
Table 5.22-7 Communication speed setting
Set value
Explanation
Default
Setting and checking is possible only when the
serial protocol setting is MODBUS.
9600bps
19200bps
✓
Setting/Checking: Settings of slave addresses (simple communication protocol)
13. Press the [SEL] key once.
Setting screen of slave addresses (simple communication protocol) is displayed on the digital
display.
PV
SV
PV
SV
PV
SV
