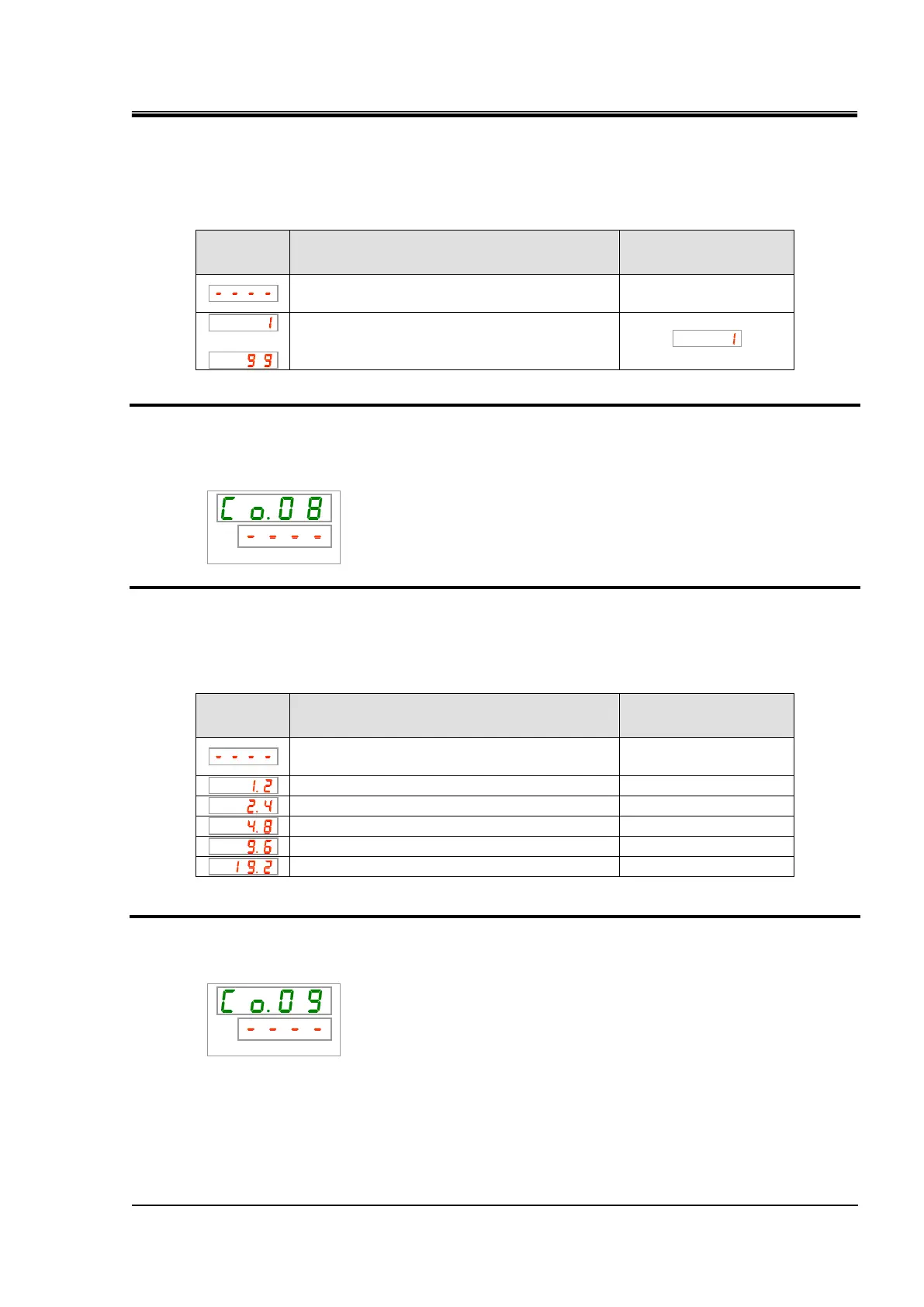

14. Set slave addresses (simple communication protocol) with [▲] key or [▼] key, and
press [SEL] key to enter.
Table 5.22-8 Setting of slave addresses
Set value
Explanation
Default
Setting/checking is possible only when the serial
protocol setting is simple communication protocol.
to
Setting of slave addresses for simple
communication protocol
Setting range: 1 to 99
Setting/Checking: Communication speed (simple communication protocol)
15. Press the [SEL] key once.
Setting screen of communication speed (simple communication protocol) is displayed on the
digital display.
16. Set communication speed (serial communication protocol) with [▲] key or [▼] key, and
press [SEL] key to enter.
Table 5.22-9 Communication speed setting
Set value
Explanation
Default
Setting/checking is possible only when the serial
protocol setting is simple communication protocol.
1200bps
2400bps
4800bps
9600bps
✓
19200bps
Setting/Checking: BCC (simple communication protocol)
17. Press the [SEL] key once.
Setting screen of BCC (simple communication protocol) is displayed on the digital display.
PV
SV
PV
SV
