SMC Networks HRSH250-W*-20 Series

HRX-OM-Q026
Chapter 5 Display and Setting of Various Functions
5.22 Communication Function HRSH Series
5-76

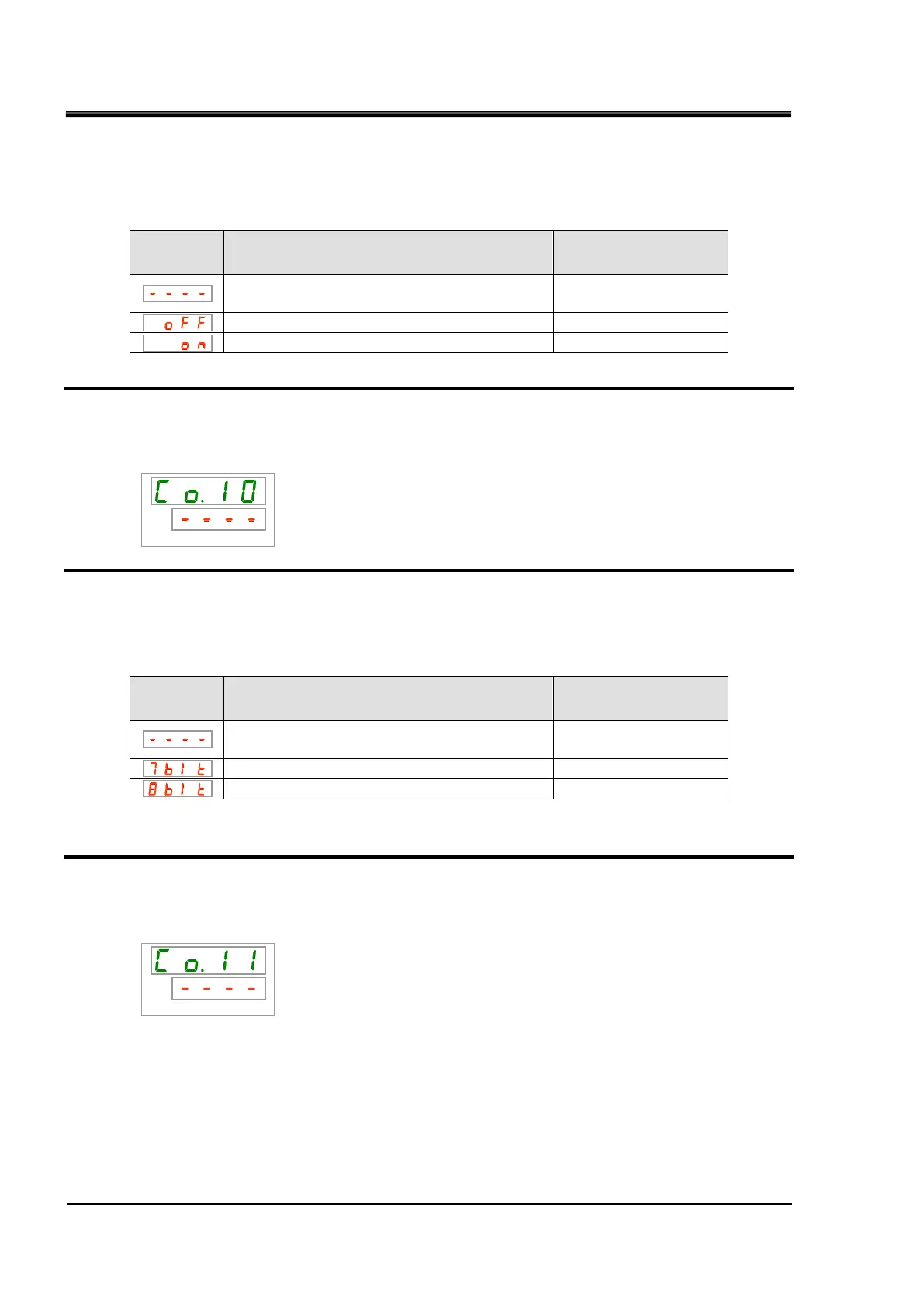

18. Set BCC (simple communication protocol) with [▲] key or [▼] key, and press [SEL] key
to enter.
Table 5.22-10 BCC setting
Set value
Explanation
Default
Setting/checking is possible only when the serial
protocol setting is simple communication protocol.
Without BCC
With BCC
✓
Setting/Checking: Data length (simple communication protocol)
19. Press the [SEL] key once.
Setting screen of data length (simple communication protocol) is displayed on the digital
display.
20. Set data length (simple communication protocol) with [▲] key or [▼] key, and press
[SEL] key to enter.
Table 5.22-11 Data length setting
Set value
Explanation
Default
Setting/checking is possible only when the serial
protocol setting is simple communication protocol.
7 bit
8 bit
✓
Setting/Checking: Parity check (simple communication protocol)
21. Press the [SEL] key once.
Setting screen of parity check (simple communication protocol) is displayed on the digital
display.
PV
SV
PV
SV
