SMC Networks HRSH250-W*-20 Series

HRX-OM-Q026
Chapter 5 Display and Setting of Various Functions
HRSH Series 5.22 Communication Function
5-77

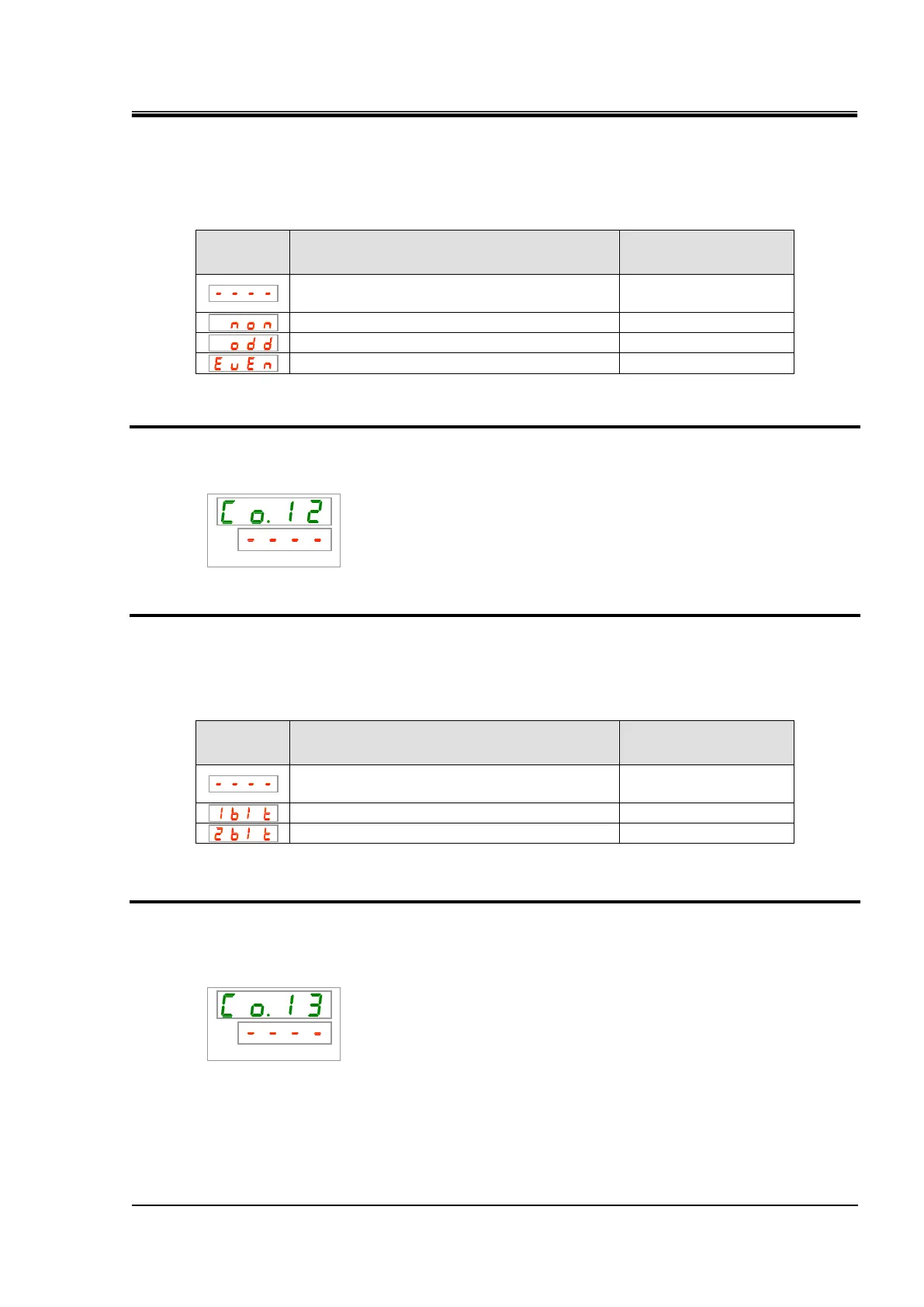

22. Perform setting for parity check (simple communication protocol) with [▲] key or [▼]
key, and press [SEL] key to enter.
Table 5.22-12 Parity check setting
Set value
Explanation
Default
Setting/checking is possible only when the serial
protocol setting is simple communication protocol.
No parity check
✓
Parity check with odd number
Parity check with even number
Setting/Checking: Stop bit (simple communication protocol)
23. Press the [SEL] key once.
Setting screen of stop bit (simple communication protocol) is displayed on the digital display.
24. Set stop bit (simple communication protocol) with [▲] key or [▼] key, and press [SEL]
key to enter.
Table 5.22-13 Stop bit setting
Set value
Explanation
Default
Setting/checking is possible only when the serial
protocol setting is simple communication protocol.
1 bit
2 bit
✓
Setting/Checking: Response delay time (simple communication protocol)
25. Press the [SEL] key once.
Setting screen of response delay time (simple communication protocol) is displayed on the
digital display.
PV
SV
PV
SV
