SMC Networks HRSH250-W*-20 Series

HRX-OM-Q026
Chapter 5 Display and Setting of Various Functions
5.22 Communication Function HRSH Series
5-78

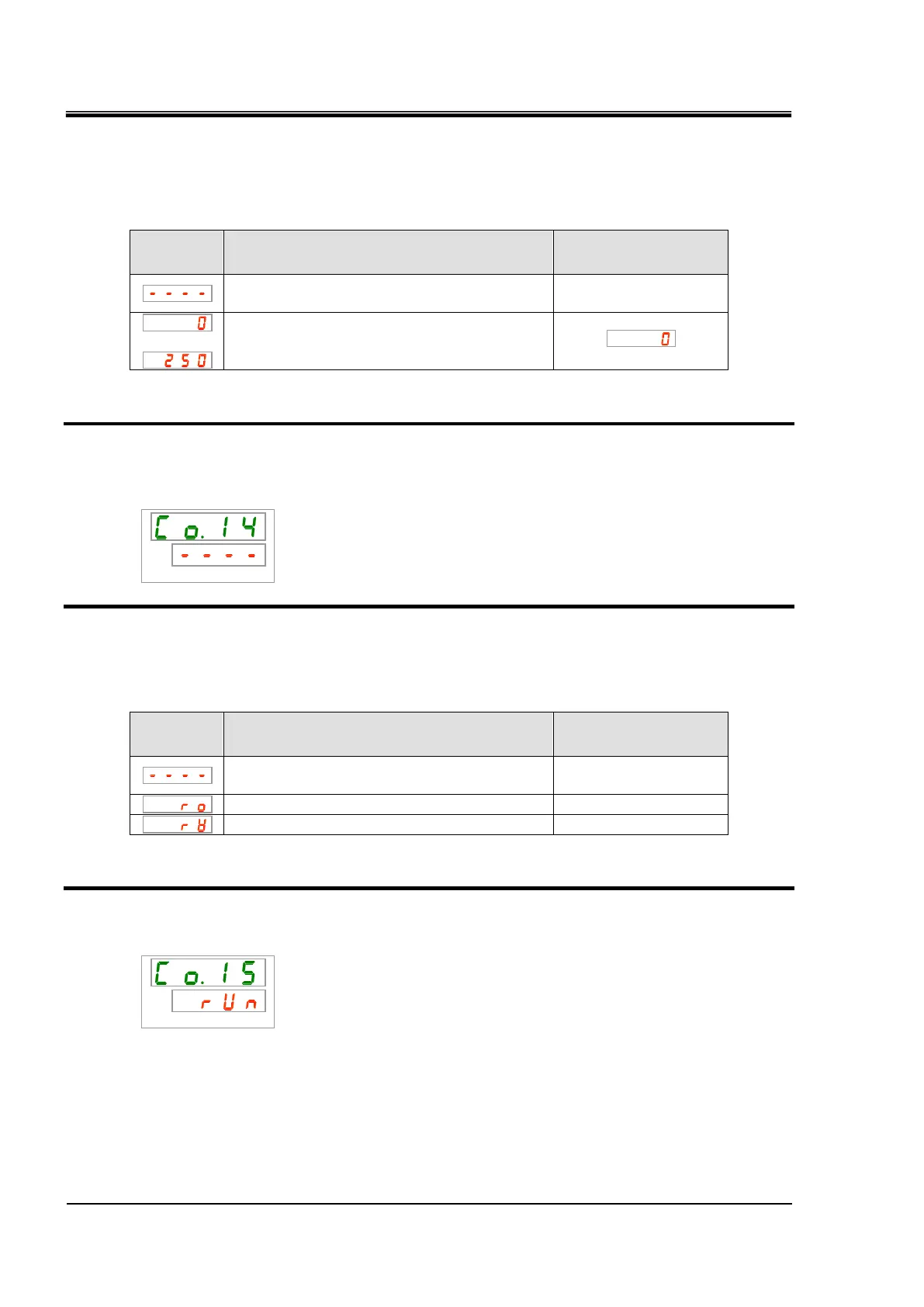

26. Set responce delay time (simple communication protocol) with [▲] key or [▼] key, and
press [SEL] key to enter.
Table 5.22-14 Setting of response delay time
Set value
Explanation
Default
Setting/checking is possible only when the serial
protocol setting is simple communication protocol.
to
Setting of response delay time
Setting range: 0 to 250 ms
Setting/Checking: Communication range (simple communication protocol)
27. Press the [SEL] key once.
Setting screen of communication range (simple communication protocol) is displayed on the
digital display.
28. Set communication range (simple communication protocol) with [▲] key or [▼] key,
and press [SEL] key to enter.
Table 5.22-15 Setting of communication range
Set value
Explanation
Default
Setting/checking is possible only when the serial
protocol setting is simple communication protocol.
Only reading is available
Reading and writing are available
✓
Setting/Checking: Contact input signal 1
29. Press the [SEL] key once.
Setting screen of contact input signal 1 is displayed on the digital display.
PV
SV
PV
SV
