■Characteristics graph
○Supply pressure dependence characteristics
The detection distance for turning ON the output depends on the supply pressure.

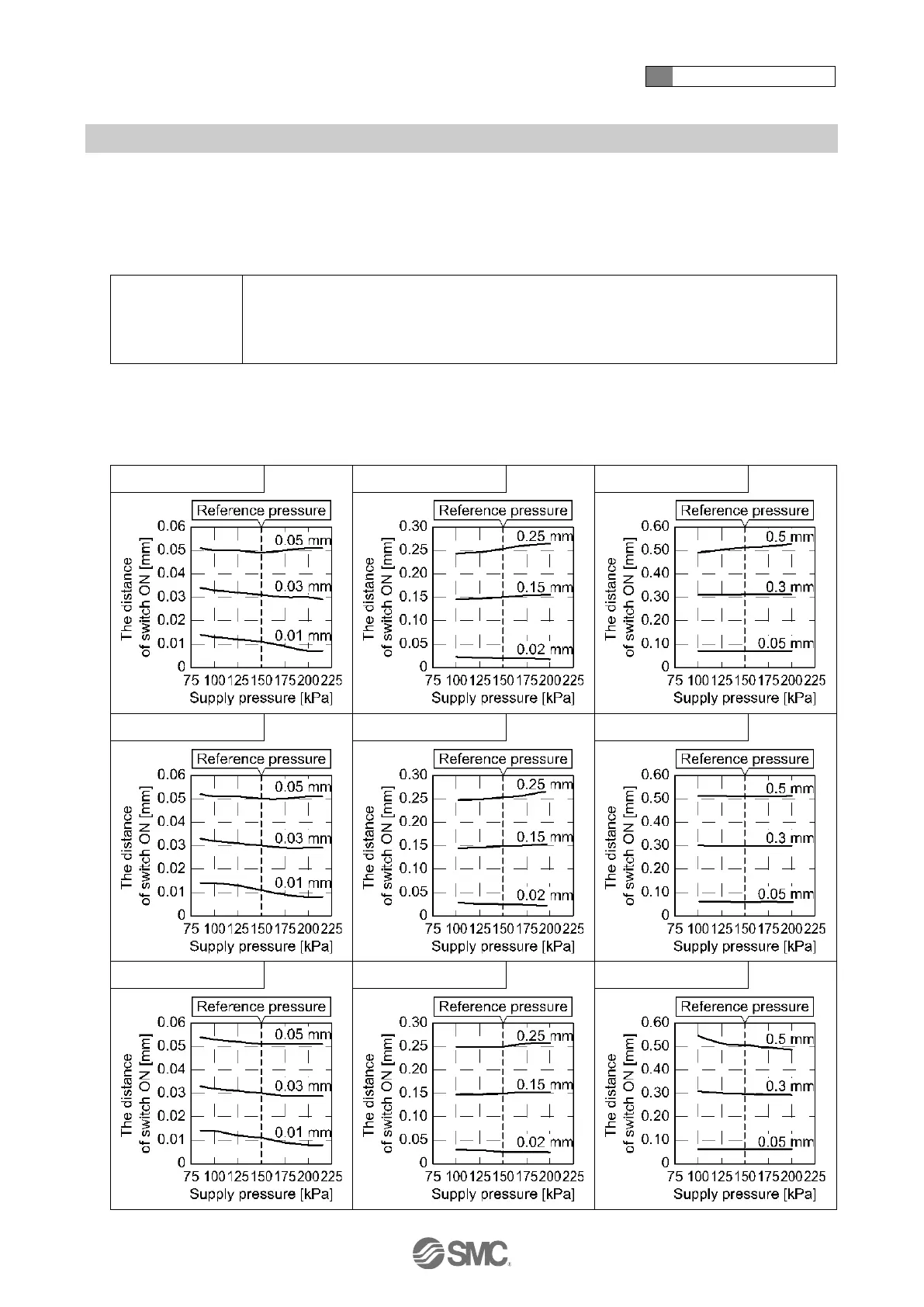

The graphs below show the variation of the distance for the product to turn ON, for 3 types of gap, by
changing the supply pressure (50 kPa) when the product is set to turn ON at 150 kPa supply pressure.
Test conditions
Detection nozzle: ø1.5
Piping: F type: ø4 x ø2.5 tube
G, H type: ø6 x ø4 tube
Reference pressure: 150 kPa
: Use within the rated pressure range (100 kPa to 200 kPa).
It will be impossible to measure the gap when the operating pressure is less than 80 kPa or more than 220 kPa. And the output will
be OFF. (Refer to the relationship between the supply pressure and display on page 114.)
ISA3-F
ISA3-G
ISA3-H
Piping length: 1 m
Piping length: 1 m
Piping length: 1 m
Piping length: 3 m
Piping length: 3 m
Piping length: 3 m
Piping length: 5 m
Piping length: 5 m
Piping length: 5 m
