SMC Networks ISA3 Series

3 Installation
-32-
No.PS※※-OMW0009-A
○Bracket

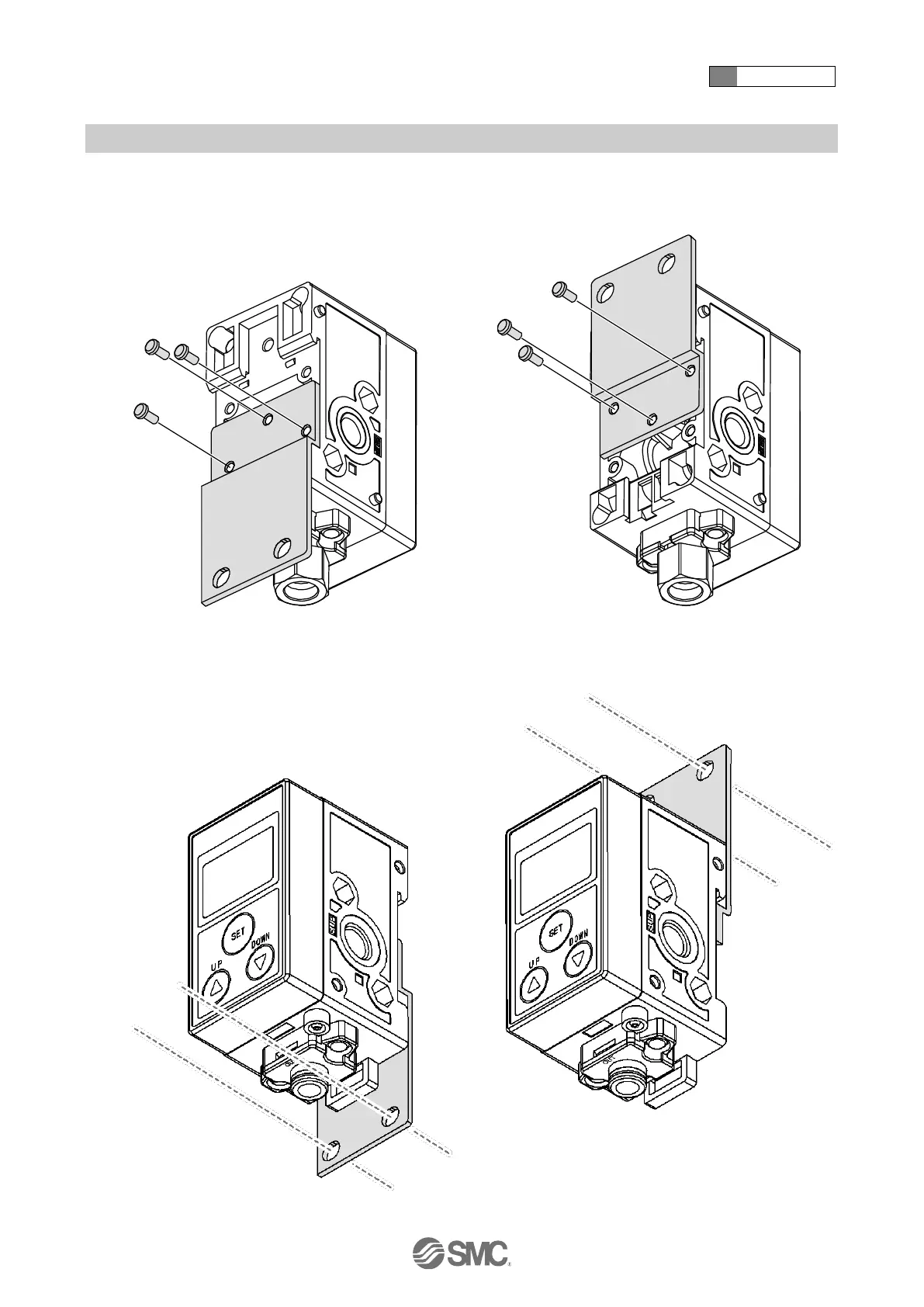

Mount the bracket using the mounting screws supplied.
The tightening torque of the mounting screw must be 0.45 Nm ±10%.
When the product is mounted using the bracket, fix with M5 screws (2 pcs.) or equivalent.
The Bracket thickness is approx. 1.6 mm.
Refer to the bracket dimension drawing (page 21) for the mounting hole dimensions.
