4 How to use
-49-
No.PS※※-OMW0009-A

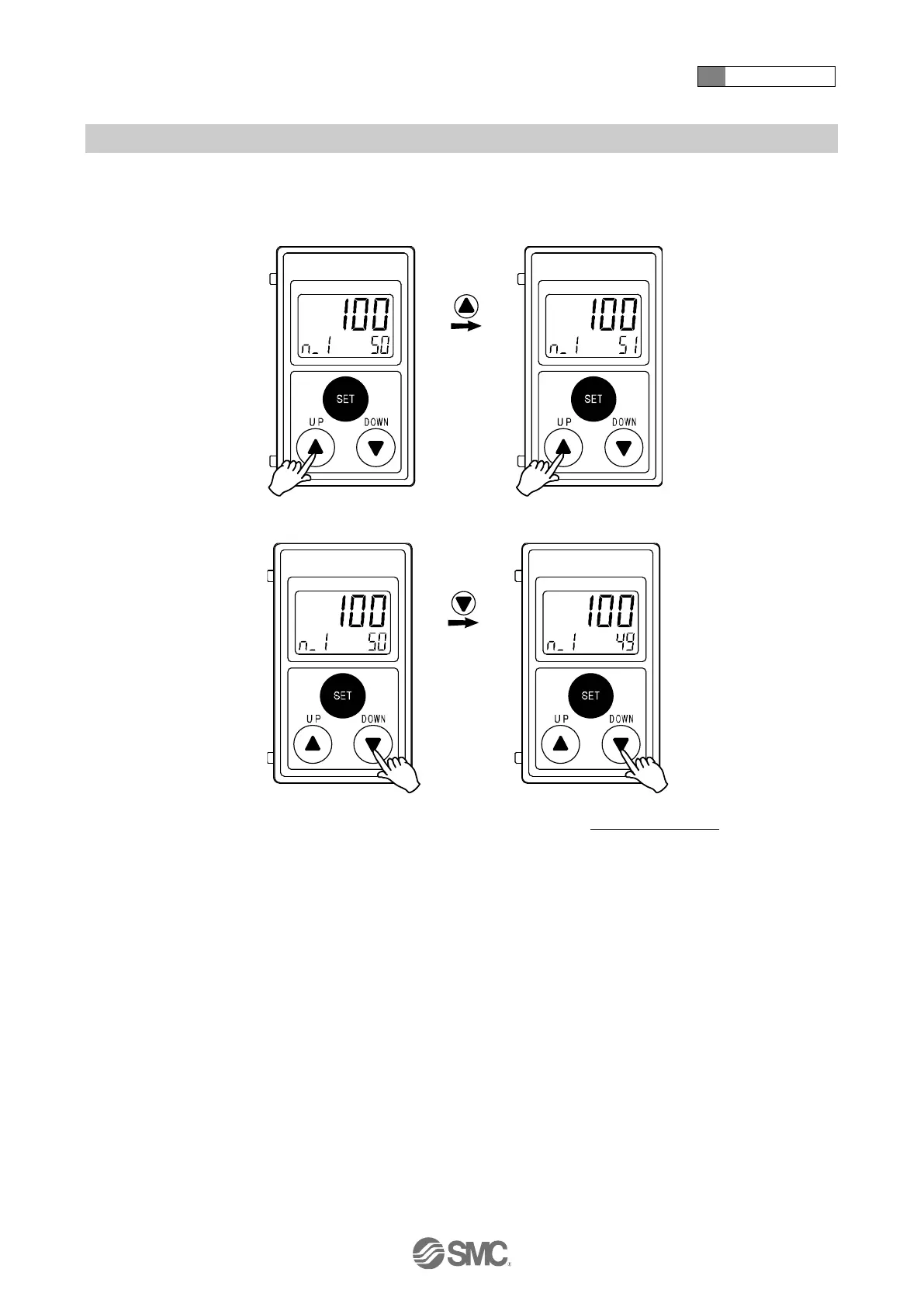

(2) Press the UP or DOWN button to change the set value.
The set value can be increased with the UP button and can be reduced with the DOWN button.
●Press the UP button once to increase the value by one digit, press and hold to continuously increase.
●Press the DOWN button once to reduce the value by one digit, press and hold to continuously reduce.
●When the UP and DOWN buttons are pressed simultaneously for 1 second or longer, the set value is
displayed as [- - -] and the set value will be the same as the displayed value automatically (snap shot
function (Refer to page 86)). Afterwards, it is possible to adjust the value by pressing the UP or DOWN
button.
(3) Press the SET button to complete the setting.
In window comparator mode, the switch operates within the set range (from P1L to P1H).
Set P1L, the lower limit of the switch operation, and P1H, the upper limit of the switch operation and WH1
(hysteresis) following the instructions given on page 48.
(When reversed output is selected, the sub display (left) shows [n1L] and [n1H].)
Please refer to the "List of output modes" on page 60 for the relationship between the set values and
operation.
: Set OUT2 in the same way.
Setting of the normal/reverse output switching and hysteresis/window comparator mode switching are performed with the function
selection mode [F 1] OUT1 setting and [F 2] OUT2 setting.
