4 How to use
-81-
No.PS※※-OMW0009-A

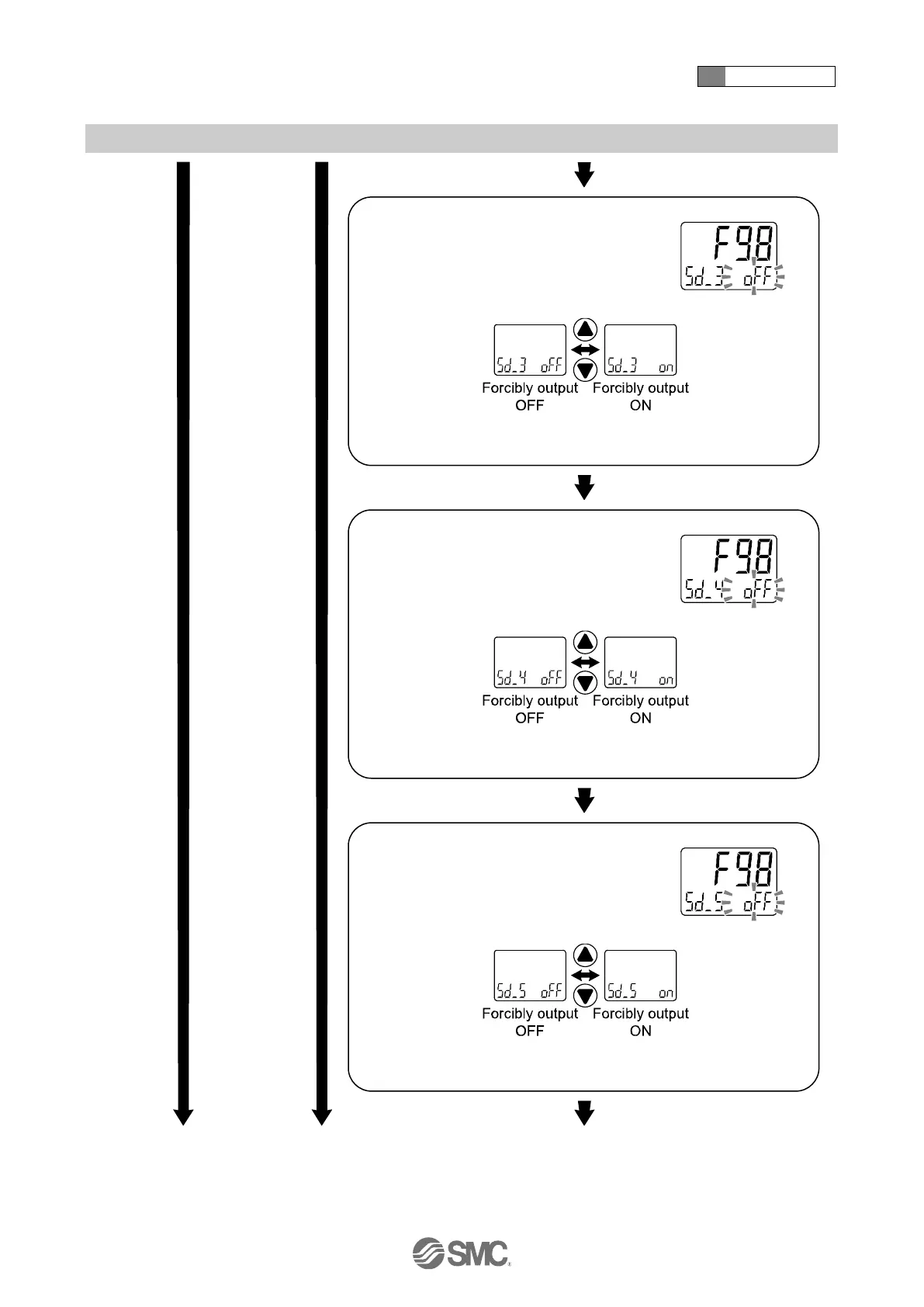

Pressure switch output 1 on the SUP
port side
Press the UP or DOWN button to select
forcibly output ON/OFF to check the
output condition.
: Bit offset: 2 in the process data will change to 0 (Forcibly output OFF)/
1 (Forcibly output ON).
Press the SET button to set.
Pressure switch output 2 on the SUP
port side
Press the UP or DOWN button to select
forcibly output ON/OFF to check the
output condition.
: Bit offset: 3 in the process data will change to 0 (Forcibly output OFF)/
1 (Forcibly output ON).
Press the SET button to set.
Pressure switch output 1 on the SUP
port side
Press the UP or DOWN button to select
forcibly output ON/OFF to check the
output condition.
: Bit offset: 4 in the process data will change to 0 (Forcibly output OFF)/
1 (Forcibly output ON).
Press the SET button to set.
