SMC Networks JXC Series - Dimensions

141 134 150
Ø 4.5
31
35
17.3
4.5
1
66
64.235
(91.7)

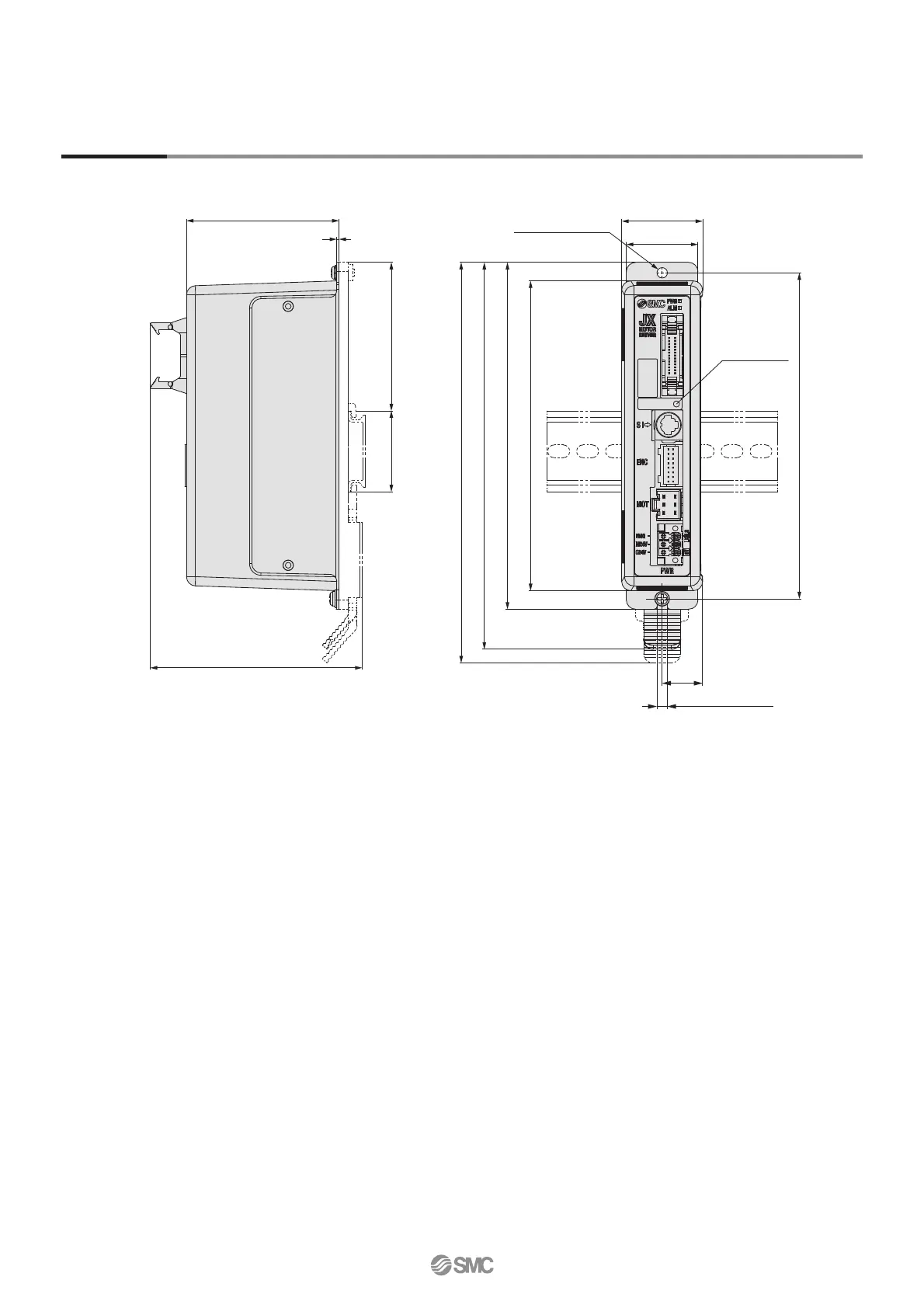

Dimensions
10
Controller (Step Data Input Type)
JXC51/61 Series
∗ Mountable
on DIN rail
(35 mm)
For body mounting
(Screw mounting)
For body mounting
(Screw mounting)
Actuator part
number label
173.2 (When removing DIN rail)
167.3 (When locking DIN rail)
