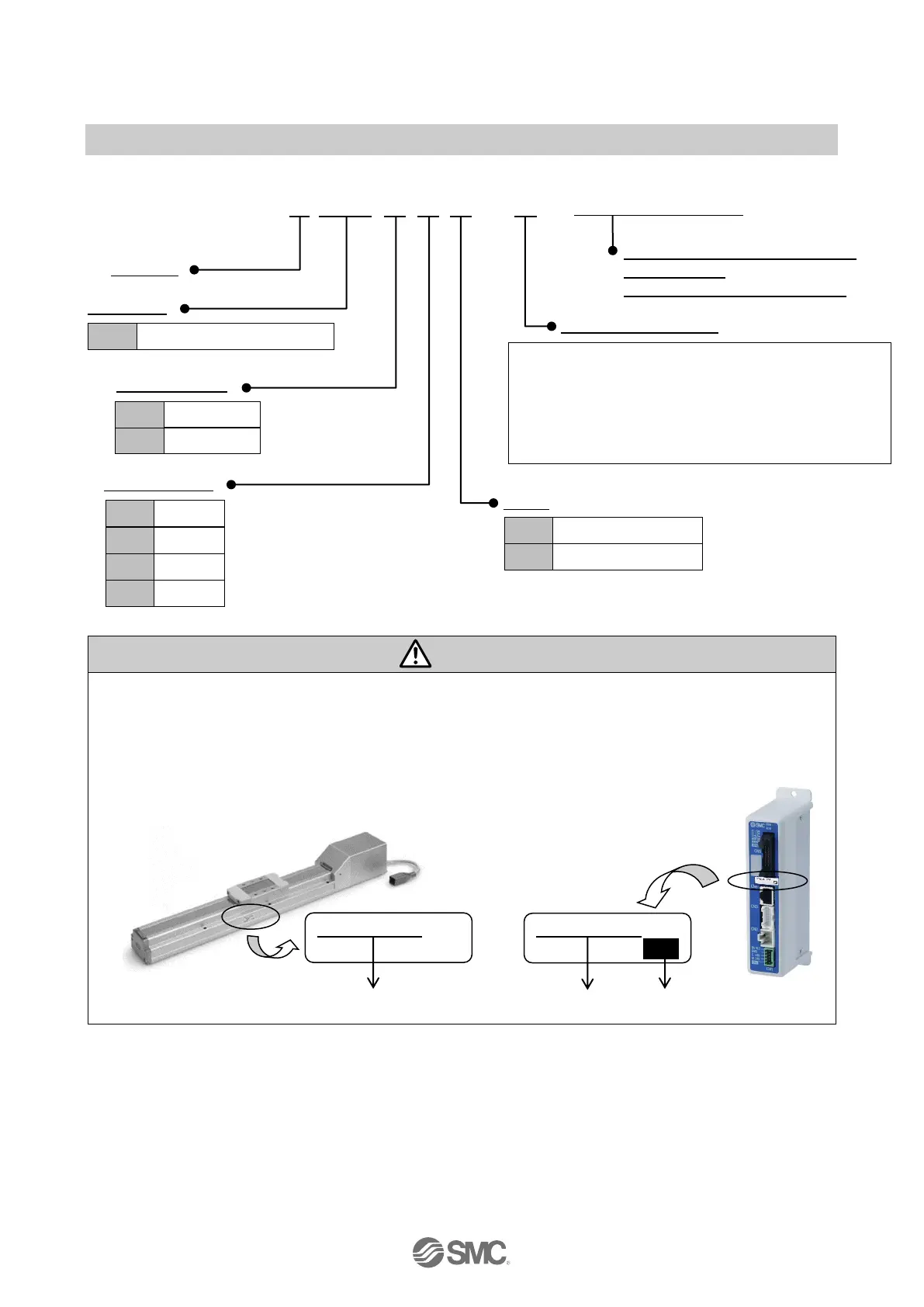

2.2 How to Order
The part number construction for this product is as follows:
ＬＥＣＰ６Ｎ□□－□－ ＸＢ１２０
U
Controller
UCompatible
Electric actuator model
U Parallel I/O type
I/O cable length
Option
Caution
Products are shipped after setting the electric actuator specification parameters.
Confirm the combination of the controller and the electric actuator is correct.
<Check the following before use.>
(1) Check the electric actuator label for the model number. Check that this matches the controller.
(2) Check Parallel I/O configuration matches (NPN or PNP)
Controller
(1) (1) (2)
With JOG input terminal, WAREA
output function
(Number of step data: 32 points)
Stroke example: For LEFS25B-100B-S36N1,
specify LEFS25B-100.
Rotating angle: For LER10K-2L-R16N1D,
specify LER10K-2.
(Enter from the electric actuator part number “LE” to
“stroke / rotating angle”)
DIN rail mounting
D
Screw mounting
Nil
1.5m
1
None
Nil
3m
3
5m
5
PNP type
P
NPN type
N
Step motor(Servo / 24VDC)
P6
LEFS25B-100
NPN
LEFS25B-100
Electric actuator
