SMC Networks LECP6 Series Supplementary Operation Manual

- 9 -
No.JXC※-OMW1019-A

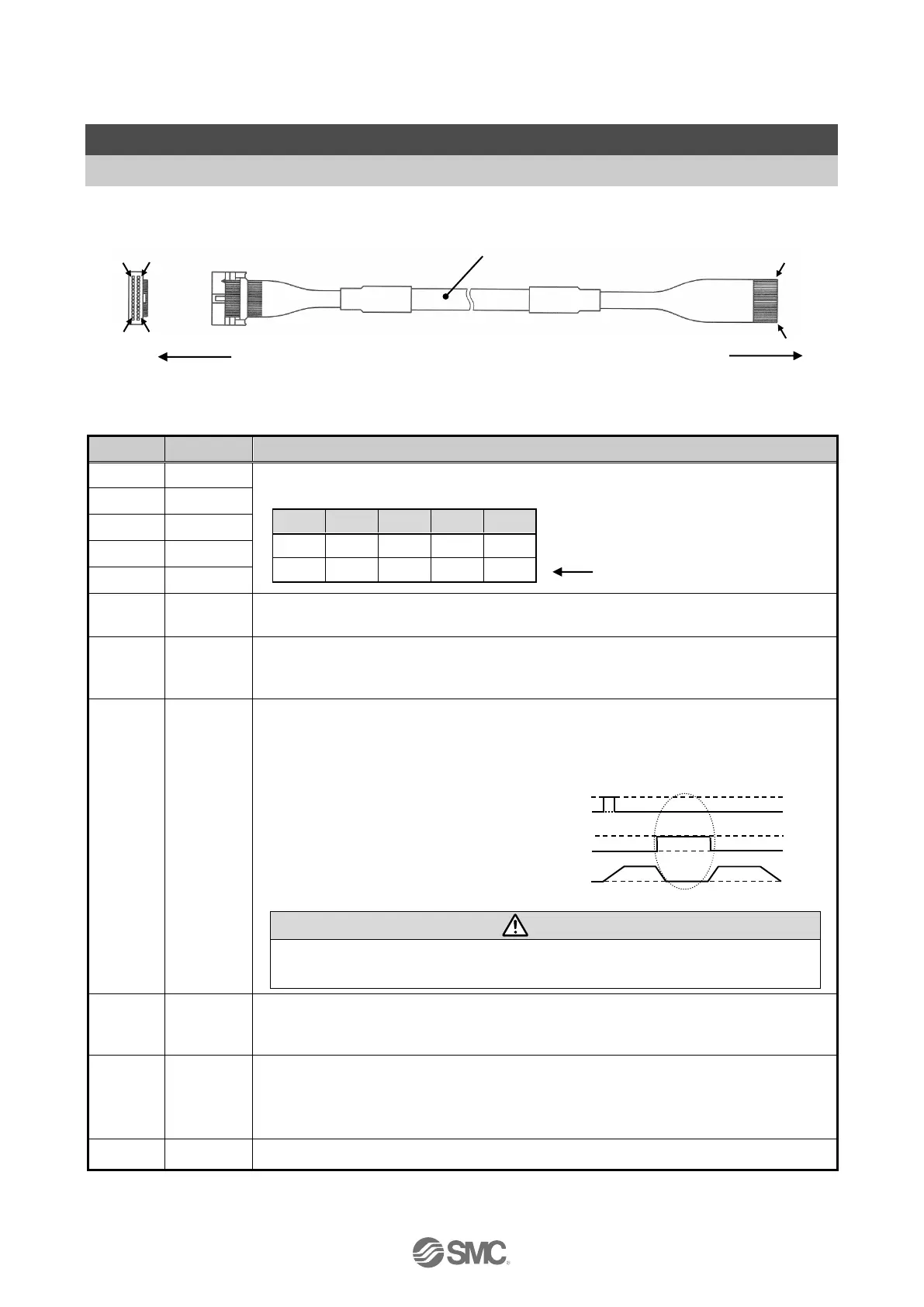

4. CN5: Parallel l/O Connector
4.1 Parallel I/O signals (changed)
Parallel input / output signal functions can be switched using the MODE input (terminal No. A8).
Functions when the MODE input is OFF and ON are explained as follows.
I/Ocable
Connector for CN5 of the controller The end to be connected to a PLC, etc.
(1) When the MODE input (Terminal No. A8) is OFF
- Input terminal-
No.
Function
Description
A3
INO
Bit no. to specify the step data
(Specify the number by combining On / Off of the terminals.)
IN4
IN3
IN2
IN1
IN0
OFF
OFF
OFF
ON
ON
0
0
0
1
1
A4
IN1
A5
IN2
A6
IN3
A7
IN4
A8
MODE
The input / output signal functions are changed using this terminal.
This table shows the case when the MODE is OFF.
A9
SETUP
When SVRE (B11) is ON, the SETUP operation (return to origin operation) will be performed.
During the SETUP operation, BUSY (B7) will be turned ON and after completion of the
SETUP operation, SETON (B9) and INP (B10) will be turned ON.
A10
HOLD
If HOLD input is ON during operation, the speed decreases at maximum deceleration speed
of the basic parameter until the electric actuator stops. The remaining stroke will be on hold
as long as HOLD is ON and when HOLD is turned OFF, the electric actuator restart to travel
the remaining stroke.
● When DRIVE or SETUP is ON:
Caution
As long as HOLD is ON, the DRIVE input will be disabled.
The output signals are rendered invalid whilst hold is in operation.
A11
DRIVE
When DRIVE is turned ON, the system scans the input IN0 to IN4 and starts the operation of
the electric actuator. Then, when this terminal is turned OFF, the number of the active step
data will be output via the terminals OUT0 to OUT4.
A12
RESET
The terminal to reset the alarm and the operation. After RESET, the speed decreases at
maximum deceleration speed of the basic parameter until the electric actuator stops. INP
and OUT0 to OUT4 will be turned OFF (however, if the electric actuator is stopped within the
in-position range, the INP will be turned ON).
A13
SVON
The SVON signals turns the servomotor ON / OFF.
*1)
*1) When power is applied, it may take up to 10 seconds (max. 20 sec.) from SVON input to SVRE output depending on the electric
actuator position.
B1 A1
B13 A13
A1
･
・
・
A13
B1
･
・
・
B13
Binary code
On hold
ON
OFF
ON
OFF
F
Restart
DRIVE
or
SETUP
HOLD
Speed
