6-3. To fit the belt back, mount the belt in reversed order of 6-1 to 6-2. Points to be Noted
for Assembly
Caution 1): For LEFS inline motor type, before tightening the screw (9), move the
table after temporarily tightening the screw (9) and confirm that the motor
can rotates smoothly.
If there is a play of the motor assembly, insert the motor assembly correctly
to the spider.
Caution 2): For step motor (servo 24VDC) and servo motor (24VDC), please be

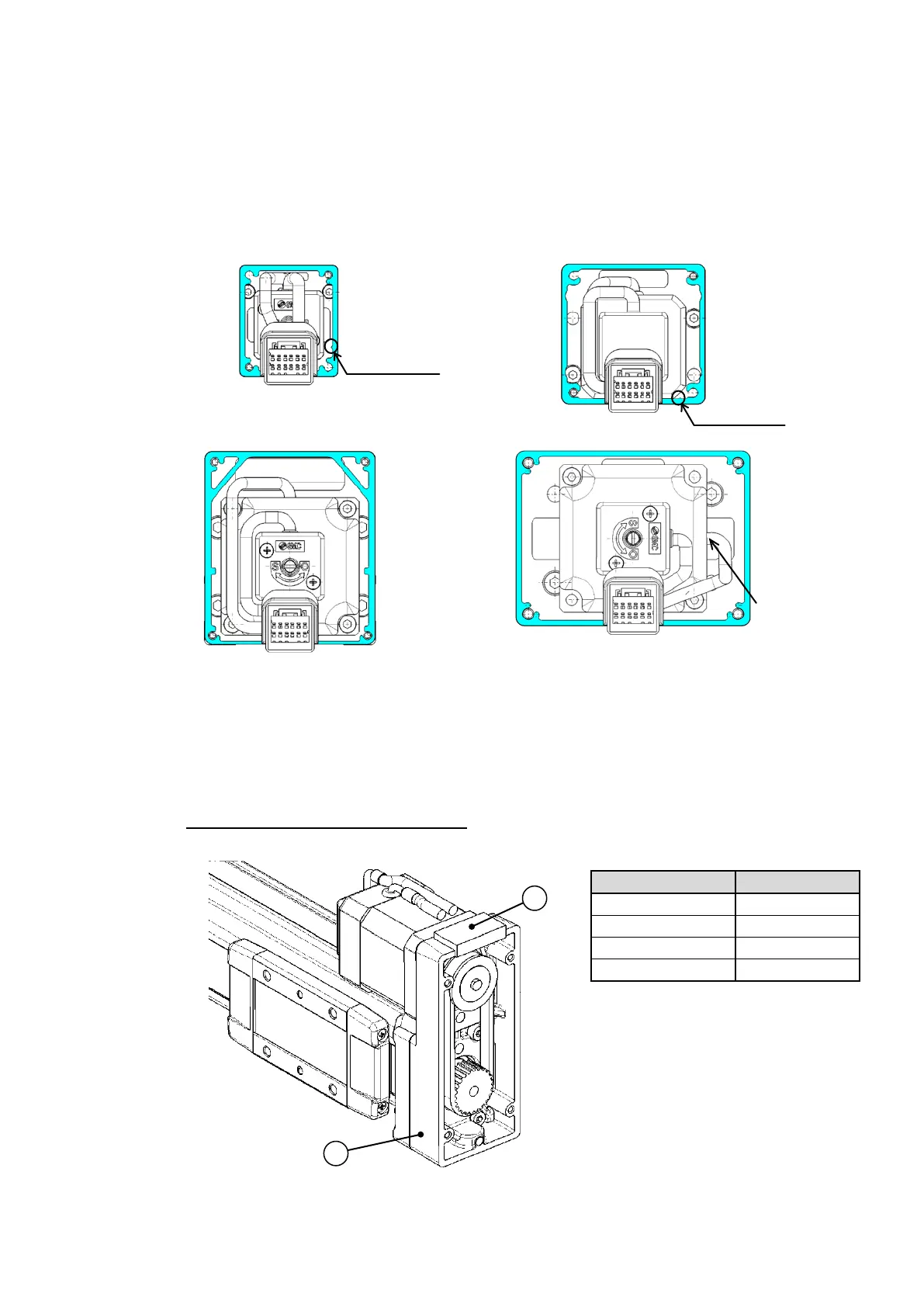

careful with the wiring of the cable and the mounting direction of the motor
cover.
Caution 3): Dispose of the used screws. For new screws without adhesive, apply
Loctite 262.
Caution 4): If the motor is parallel mounting type, it is necessary to adjust the belt
tension.
Adjustment using belt tension tool
Place the plate (23) onto the return plate (22).
S
LEFS40 is
Table.6-6 Tension adjustment jig
