- 22 -

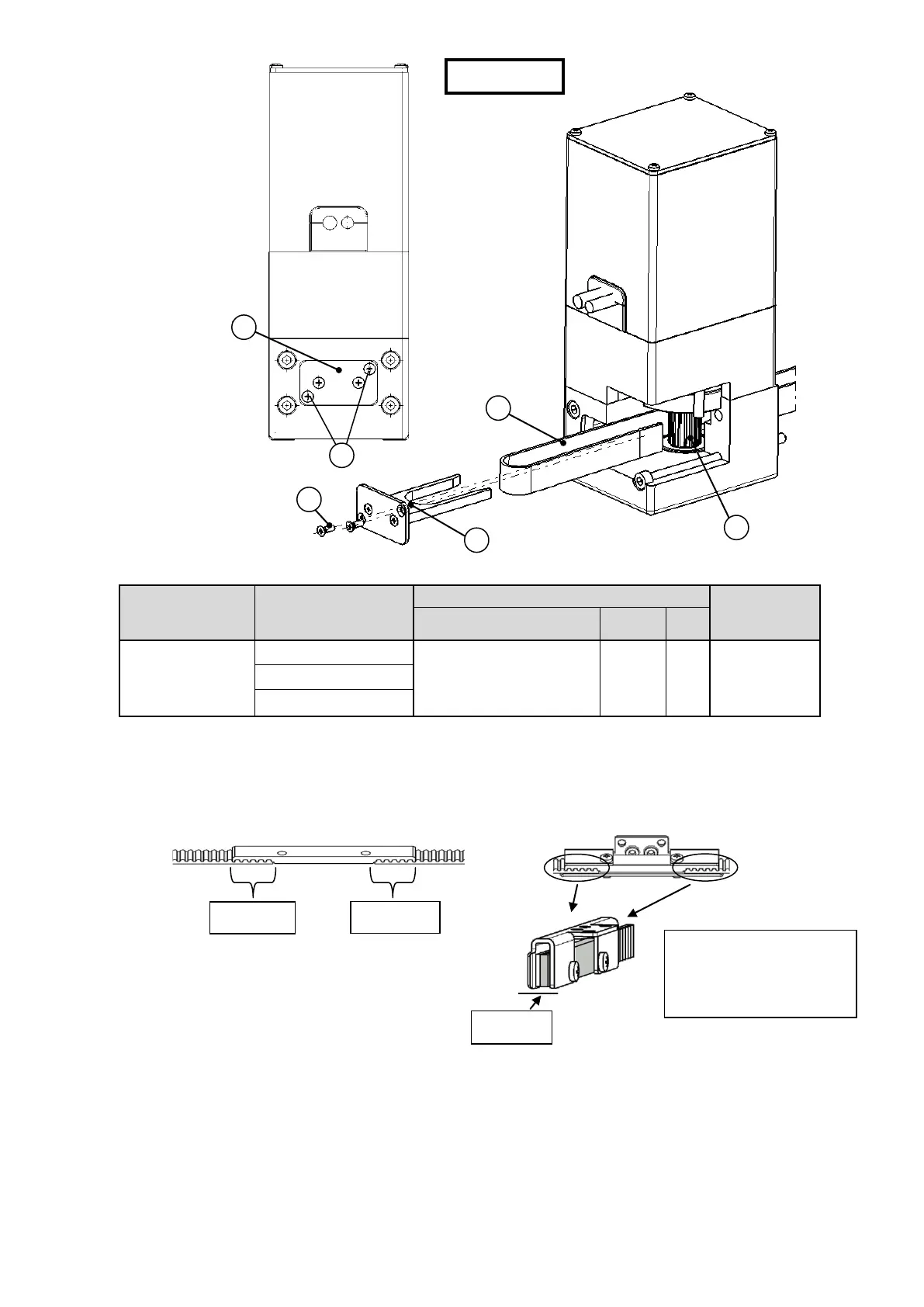

Note 2) Mount both ends of the belt in the loop shape to the belt holder. Engage five belt
teeth each at both ends of the belt holder. Align the positions of the belt and the
belt holder to be on the same bottom level, and tighten the screws using the
specified tightening torque.
* It is strongly recommended to use new screws, but if the screws are re-used, a locking
agent must be used to prevent the screws becoming loose.
Locking agent, however,
may have no effect. Use new screws as much as possible.
For the replacement of the pulley holder assembly, stopper, order the parts referring to
the spare parts list in the attachment.
Part to be
tightened
Model
torque +/-
Type Size Qty.
(12) Belt stopper
assembly
LEFB25∗(S/T/V)∗S
(11) Cross recessed
countersunk head screw
M3x8 2 0.32
LEFB32∗(S/T/V)∗S
∗
∗
Table.8-3 Belt stopper assembly fixing screws
the belt holder and the
belt to be on the same
To Next Page
