SMC Networks LEF Series Maintenance Manual

- 21 -
LEFB32, 40
∗(S/T/V)∗S
Remove cross recessed countersunk head screws (11) holding the belt stopper
assembly diagonally to remove the belt stopper assembly (12). Loop the belt around
the end side pulley (13), then the motor side pulley (14) to hold the belt to the belt
holder.
9
Stopper
Pulley holder assembly
fixing bolt
Stoppe
9
6
Pulley

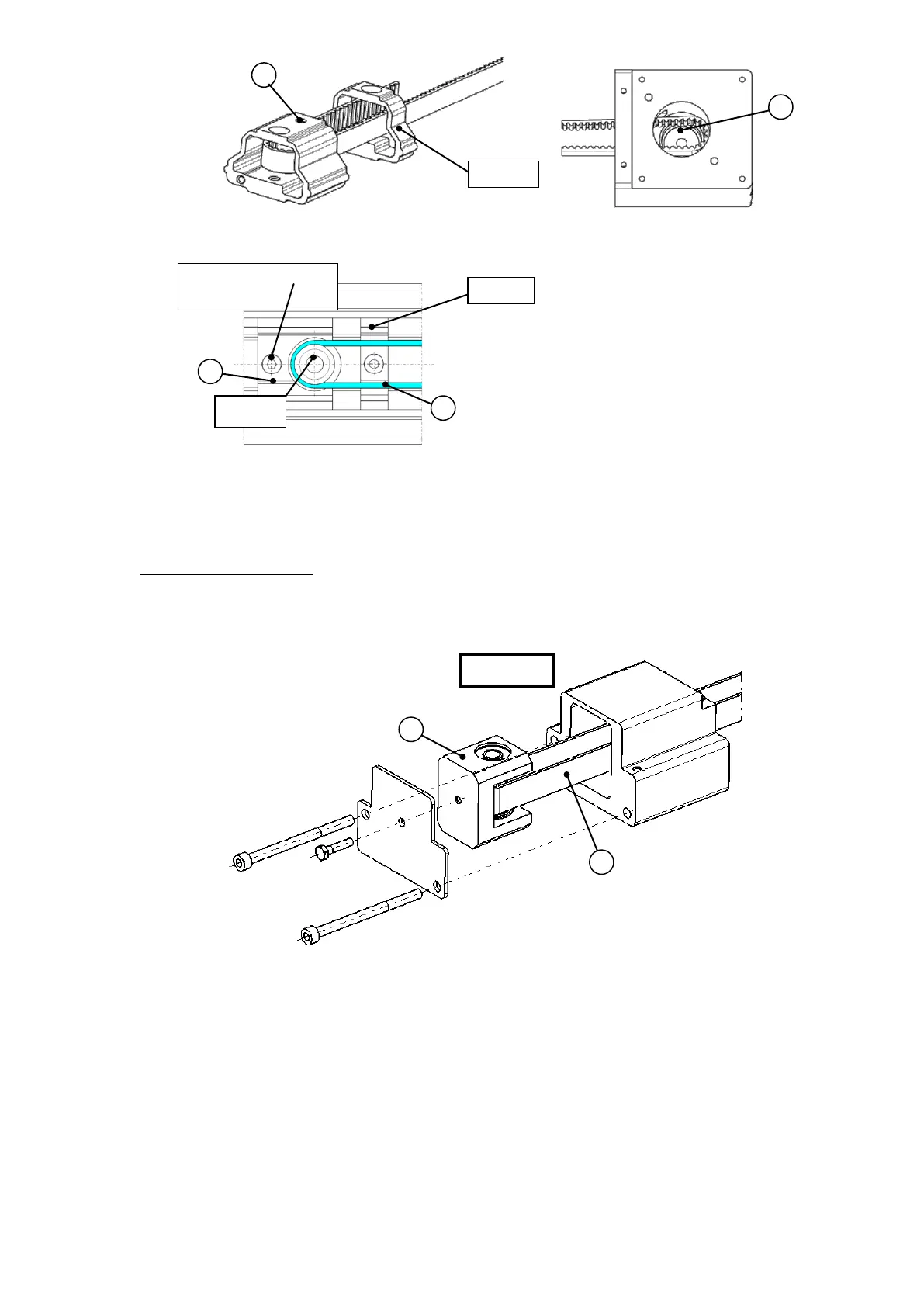

Fig.8-1 Sectional view of the pulley holder
End side
6
10
13
