SMC Networks PFM7 Series User Manual

-15-
No.PF※※-OMJ0006-G

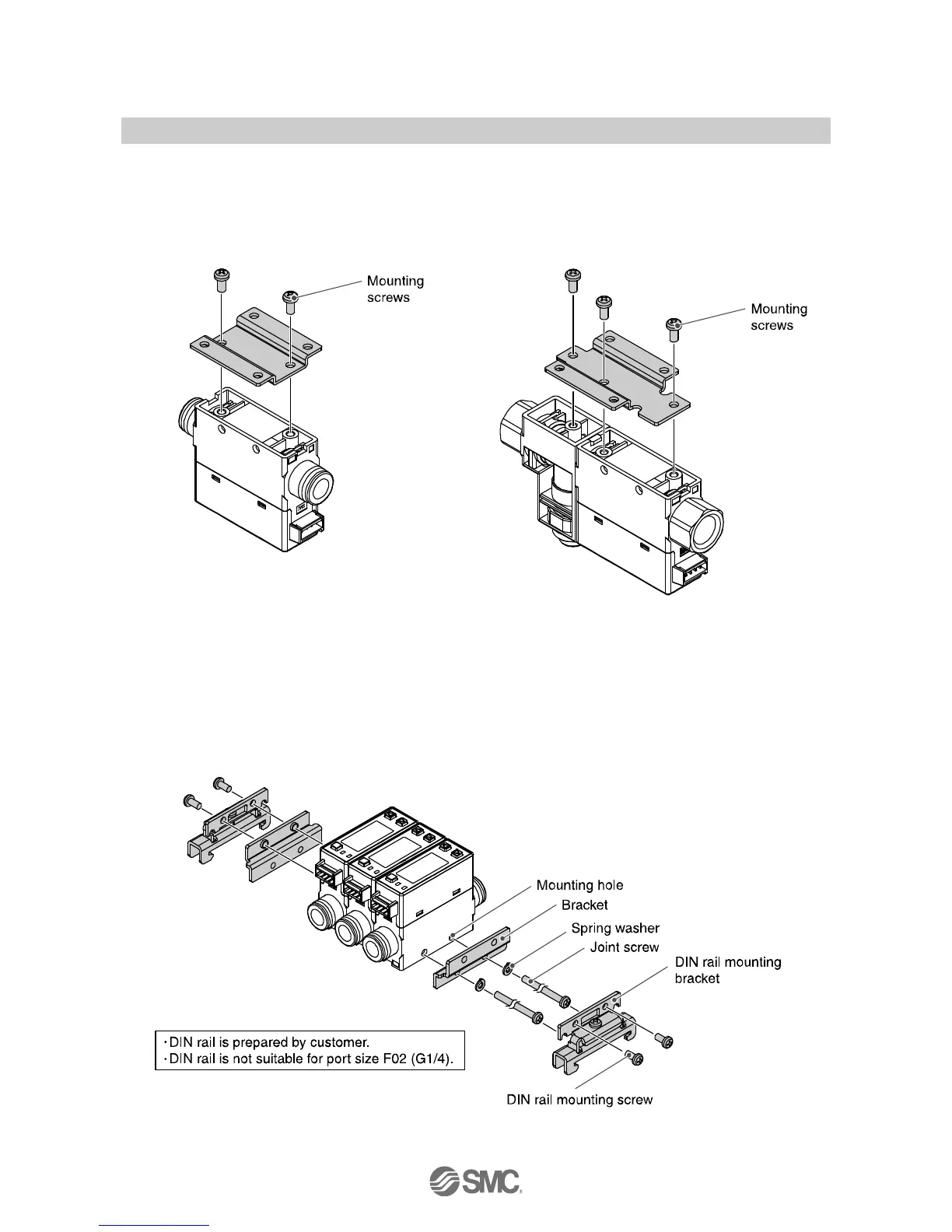

Bracket mounting
Mount the bracket using the mounting screws supplied.
The required tightening torque is 0.5±0.05 Nm.
Without flow adjustment valve
(using ZS-33-M)
With flow adjustment valve
(using ZS-33-MS)
Install the product (with bracket) using the M3 screws (4 pcs.).
Bracket thickness is approximately 1.2 mm.
Refer to the dimension drawing of the bracket (page 71) for mounting hole dimensions.
DIN rail mounting (using ZS-33-R)
Mount the DIN rail mounting parts using DIN rail mounting screws and joint screws supplied.
The required tightening torque of the DIN rail mounting screws and joint screws is 0.4±0.05 Nm.
