-71-
No.PF※※-OMJ0006-G

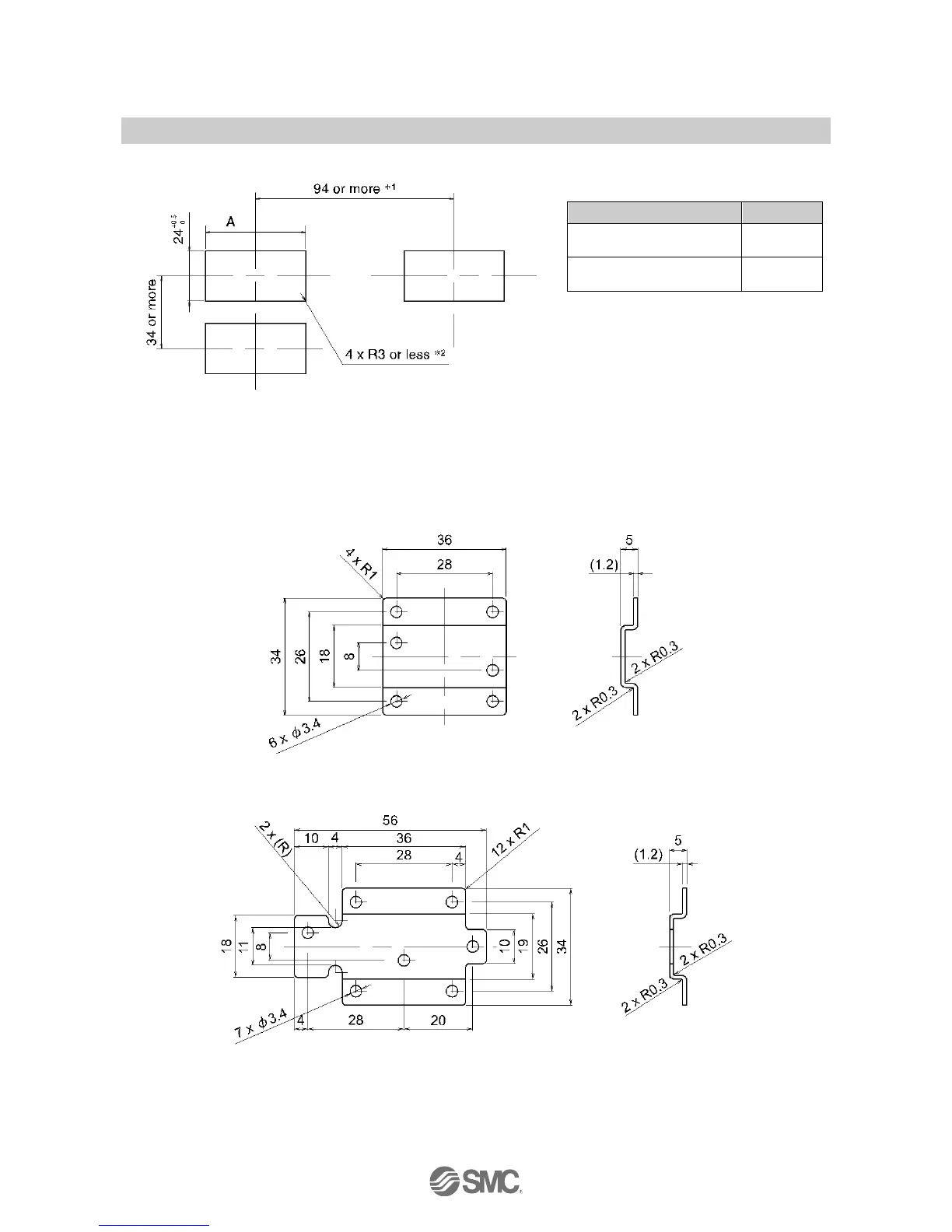

Panel cut-out dimensions
Flow adjustment valve
A
None
54
+0.5
0
With flow adjustment valve
74
+0.5
0
1: Piping entry direction: These are the minimum dimensions for bottom entry piping. If using straight entry piping, the material and
tubing need to be taken into consideration when deciding panel cut-out spacing.
2 If a bend (R) is used, limit it to R3 or less.
3: Suitable for panel thickness of 1 to 3.2 mm.
Bracket (ZS-33-M)
Bracket (ZS-33-MS)
