W
EB
C
ONFIGURATION
23
Web – Click System, Static MAC.

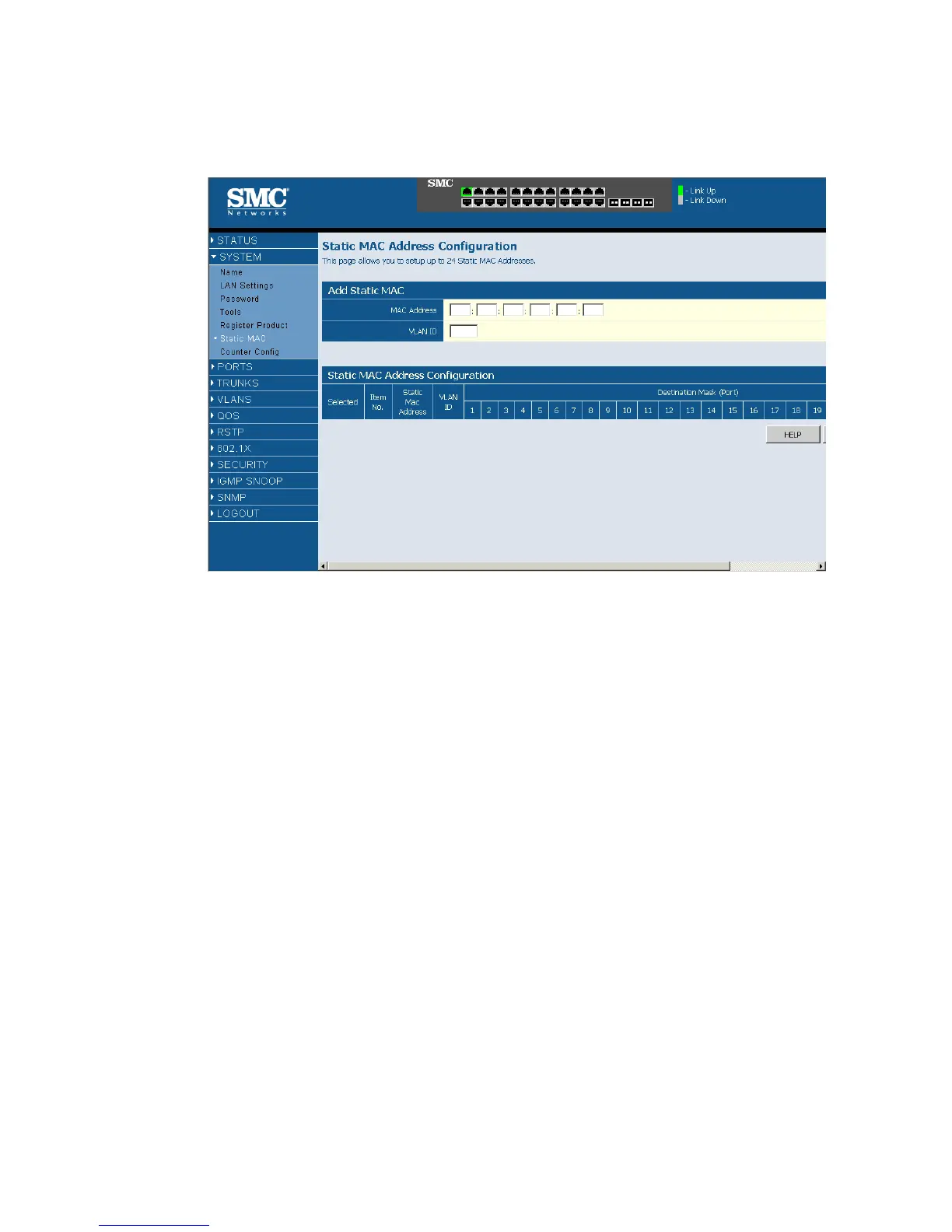

Figure 13 Static MAC Address Configuration
Counter Config
This page allows the customer to select the statistics to count and display.
It is possible to monitor 5 Transmit counters,5 receive counters as well as 1
transmit byte counter and receive byte counter at the same time. Please
also note the following restrictions.
Received Unicast Packets can be enabled after Received Multicast Packets
and Received Broadcast Packets are enabled.
Received Multicast Packets and Received Broadcast Packets can be
disabled after Received Unicast Packets is disabled.
The above 2 rules are also applied to Transmitted Multicast Packets,
Transmitted Unicast Packets and Transmitted Broadcast Packets.
