C
ONFIGURING
THE
S
WITCH
22

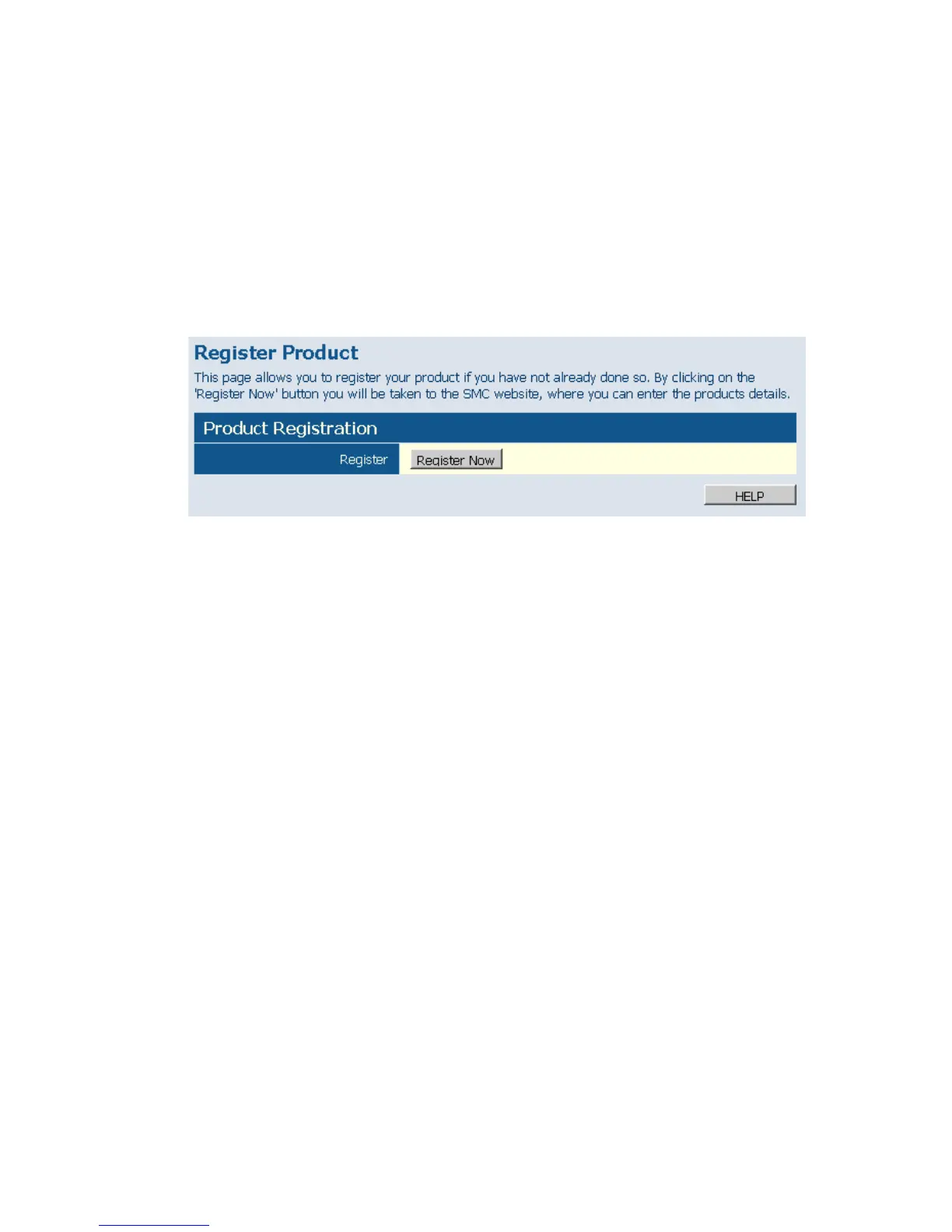

Register Product
Register your product if you have not already done so.
Web – Click System, Register Product. By clicking the Register Now
button you will be taken to the SMC website, where you can enter the
products details.
Figure 12 Register Product
Static MAC
A static MAC address is an entry in MAC table which can not be aged out.
Add Static MAC
Type the static MAC address and associated VLAN ID (1-4095) into
corresponding fields in the Add Static MAC table. After pressing ADD
button, you will be navigated to a new page to configure the Destination
Mask for this MAC entry. Only one static MAC address can be added per
time.
Static MAC Address Configuration
This table shows the stored static MAC entries in MAC table. Symbol X
indicates that the corresponding bit for the port the symbol X respresents
is set to 1 in the destination mask. Click the radio button which is
associated with the static MAC entry that is displayed immediately at its
right side and use Modify or Delete button can modify or delete this entry.
Modify button will navigate to a web page for reconfiguring the
Destination Mask.
