W
EB
C
ONFIGURATION
47

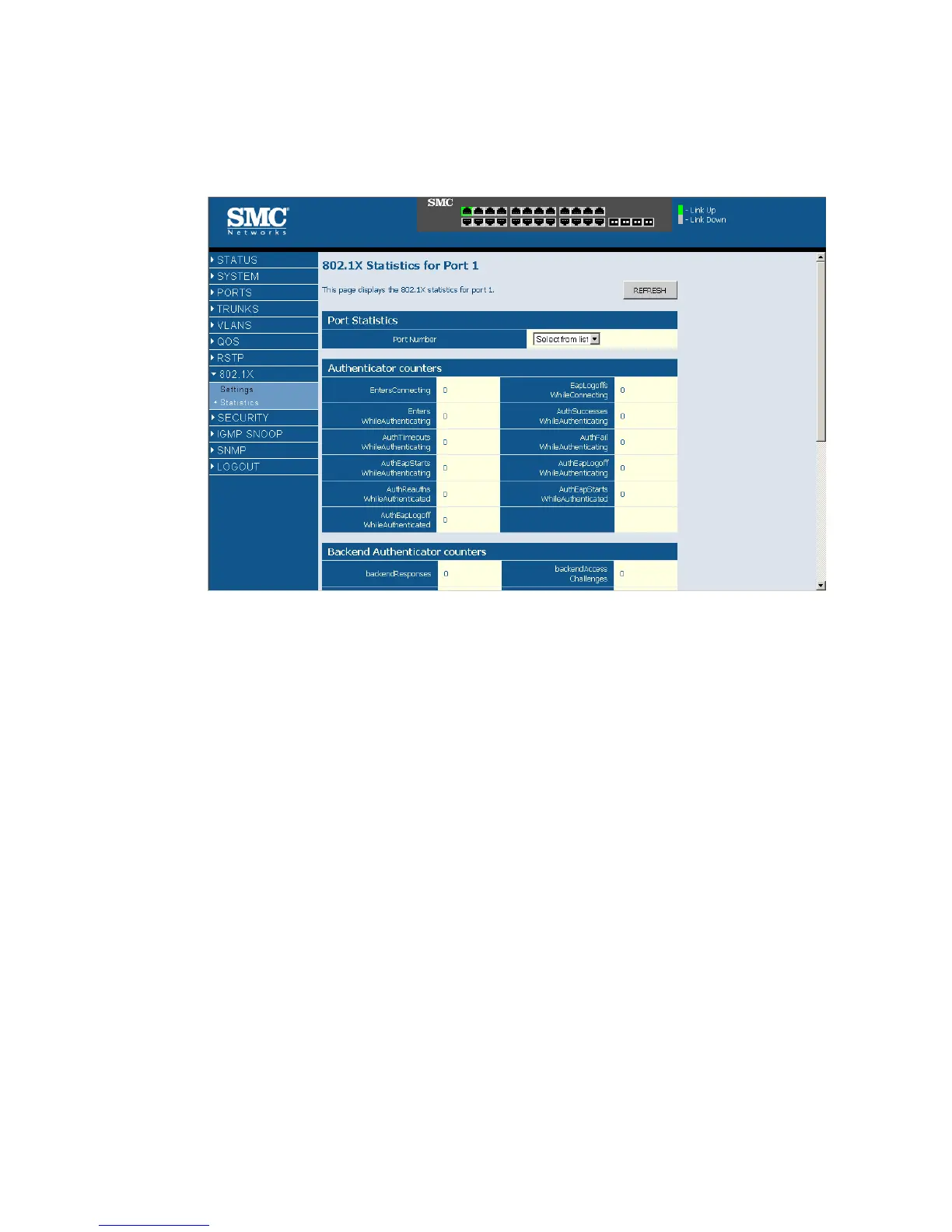

Web – Click 802.1X, Statistics.
Figure 30 802.1X Statistics
Security
IP Filter
On this page, you can setup the source IP Filter on all or some ports. It is
used to block unwanted access and provide access to the network for
either a specific source IP address or a specific subnet. The IP Filter
Configuration table has one row for each port and five columns.
Field Attributes
• Port - The front-panel port-number of the port. This cannot be changed.
• Source IP Filter - Set mode and IP addresses for IP filter.
• Mode - Select the mode for this port.
• Disabled - Disable source IP filter.
