C
ONFIGURING
THE
S
WITCH
24
Web – Click PORTS, Settings.

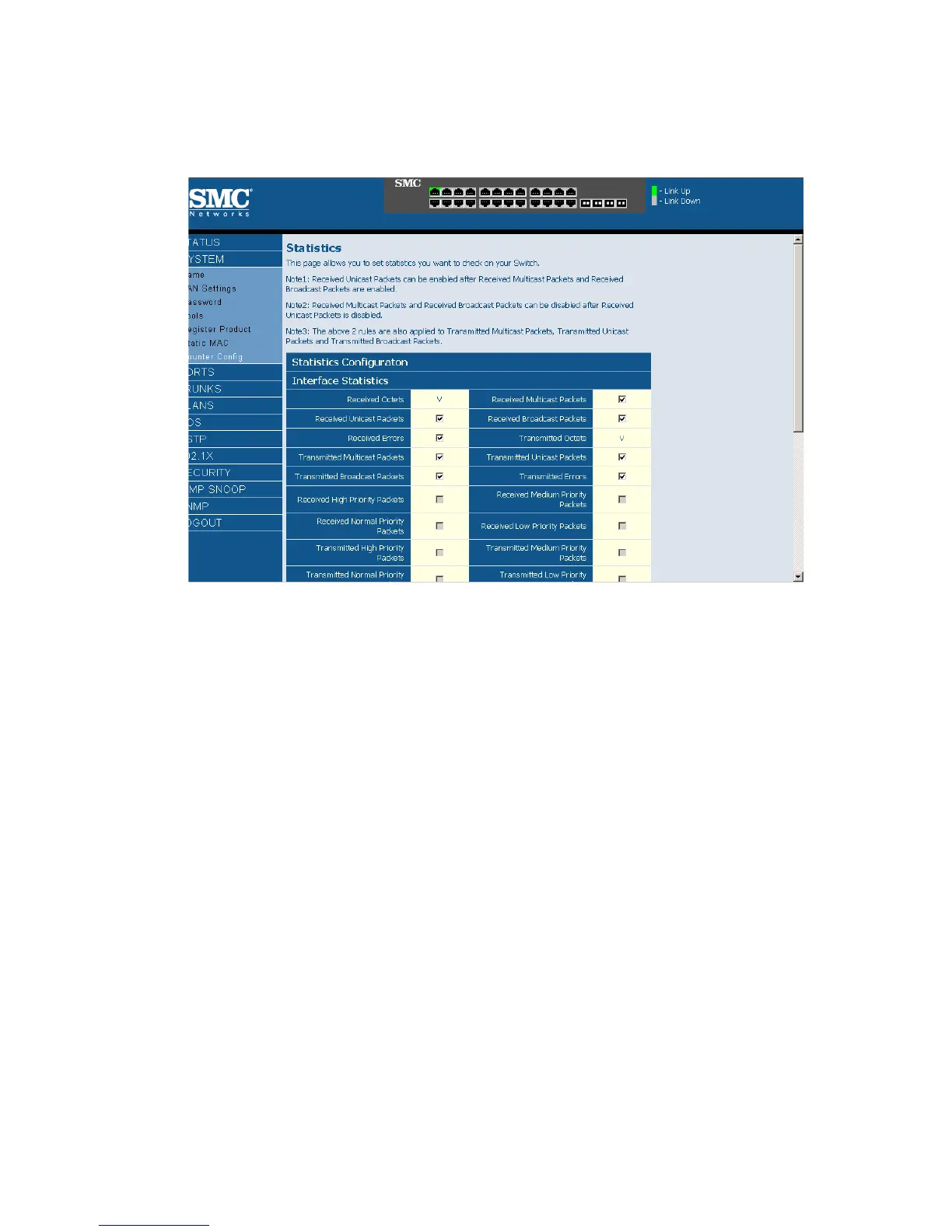

Figure 14 Counter Configuration
Port Configuration
You can use the Port Configuration page to manually fix the speed, duplex
mode, and flow control.
Field Attributes
• Speed/Duplex – Allows you to manually set the port speed and duplex
mode.
•Flow Control – Allows flow control to be enabled or disabled. When the
box is checked, flow control is enabled.
• Trunk – Indicates if a port is a member of a trunk.
