C
ONFIGURING
THE
S
WITCH
38
Web – Click VLANS, VLAN Settings. Fill in the required settings for each
interface, click Apply.

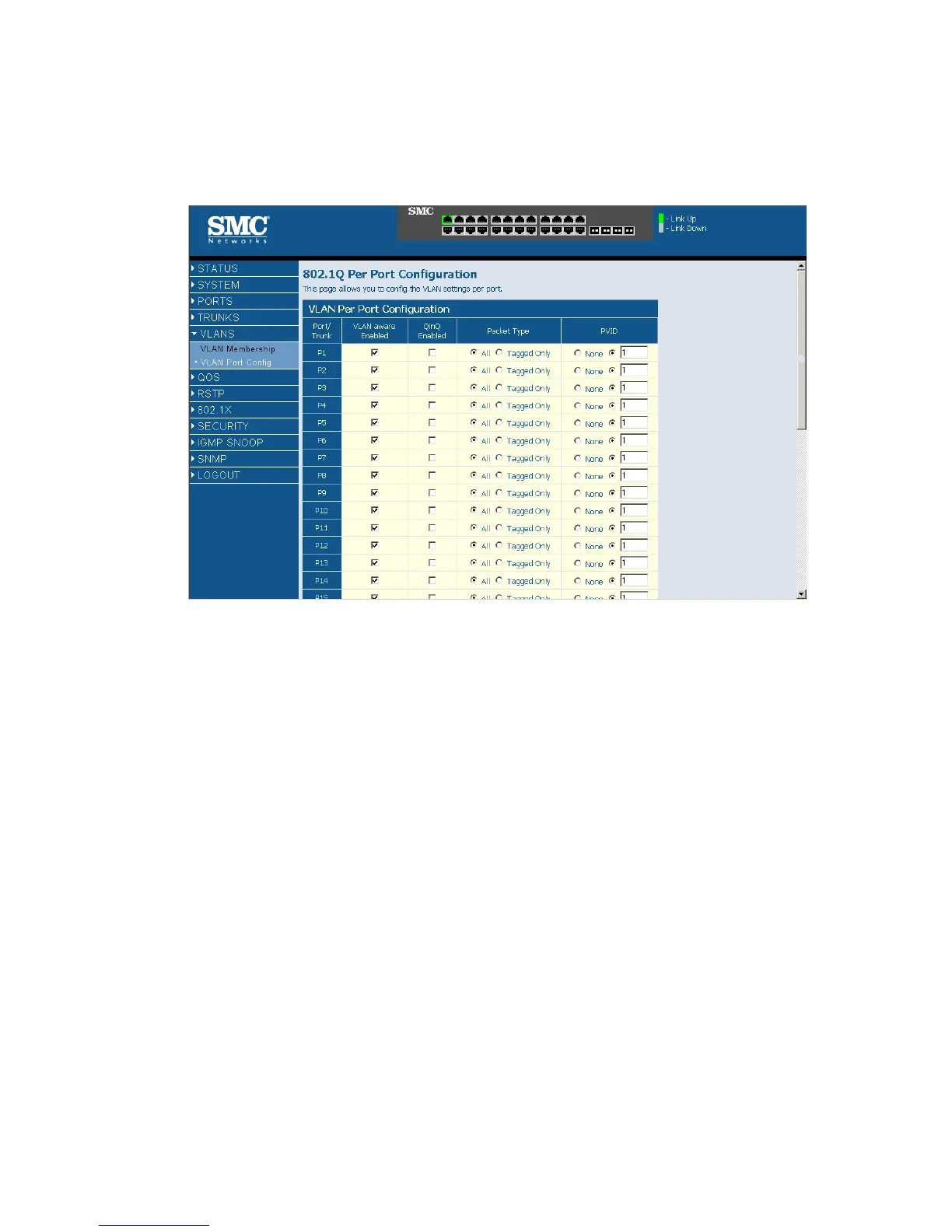

Figure 25 VLAN Settings
QOS Settings
QoS (Quality of Service) is a mechanism which is used to prioritize certain
traffic as it is moves through the switch. Traffic can be classified as High or
Normal priority and, when the switch is heavily loaded, it is the Normal
priority packets that are dropped first. You can select how traffic is
prioritized by using one of the four QoS modes which is selected using the
QoS Mode drop-down list.
Note: Only one QoS mode can be active at one time. It is not possible,
for example, to prioritise traffic using the IP Port number and
802.1p tag.
QoS Disabled
QoS is turned off and all packets have equal priority.
