W
EB
C
ONFIGURATION
33
Web – Click TRUNKS, Settings.

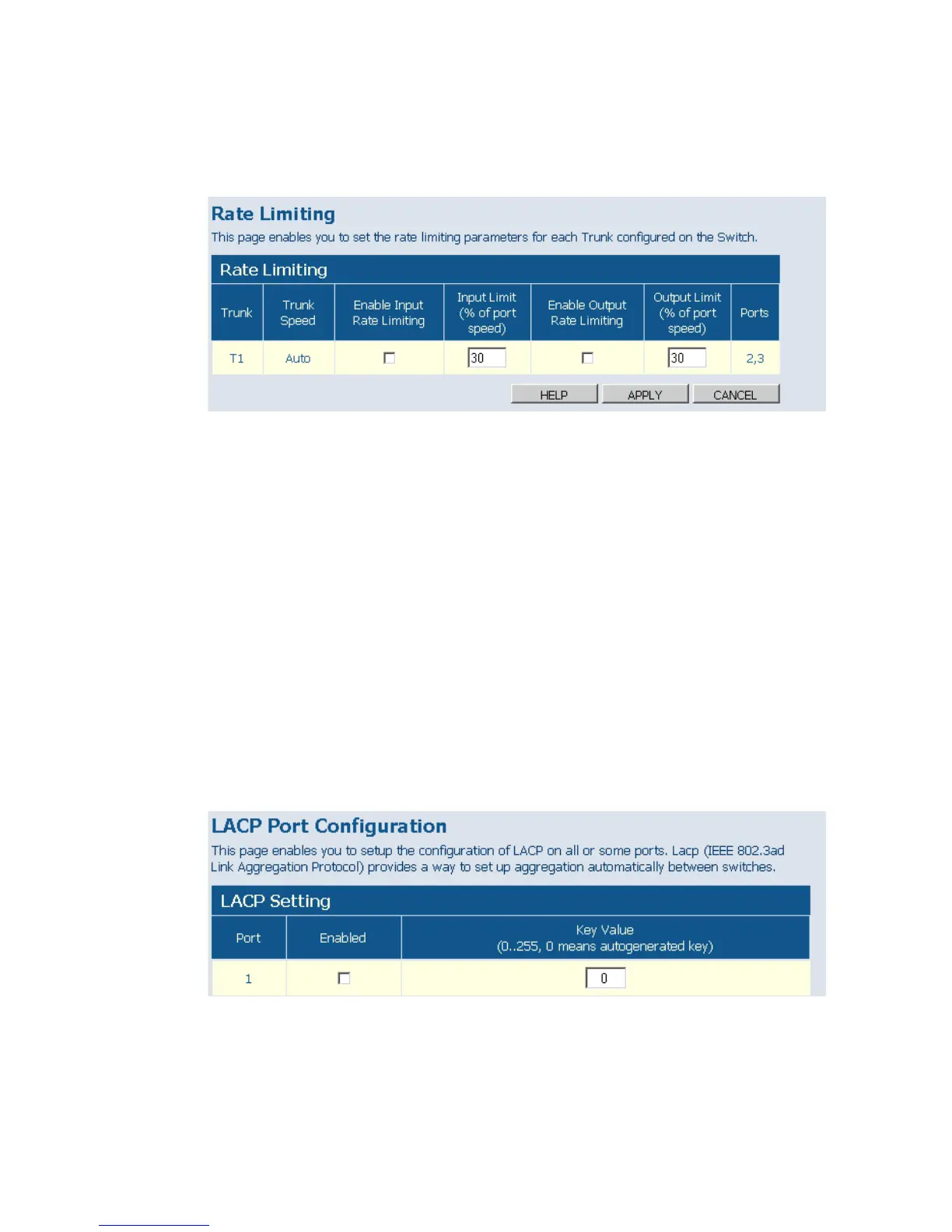

Figure 22 Trunk Rate Limiting
LACP Setup
This page enables you to setup the configuration of LACP on all or some
ports. LACP (IEEE 802.3ad Link Aggregation Protocol) provides a way to
set up aggregation automatically between switc
Field Attributes
• Port – The front-panel port-number of the port. This cannot be
changed.
• Enabled – Enable LACP on the associated port.
• Key Value – Setup key value for each port.
Web – Click TRUNKS, Settings.
Figure 23 LACP Port Configuration
