W
EB
C
ONFIGURATION
43
Field Attributes
• Port/Trunk - Port/Trunk ID number.
• VLAN ID - VLAN IDs of the port.
• Path Cost - Show the path cost on this port.
• Edge Port - Yes if the port is an edge port which connects to an end
station.
• P2p Port - Yes if the port link is connected to another STP device.
• Protocol - Show the running protocol, RSTP or STP.
• Port State - Show the current port state, blocking, forwarding, learning
etc...

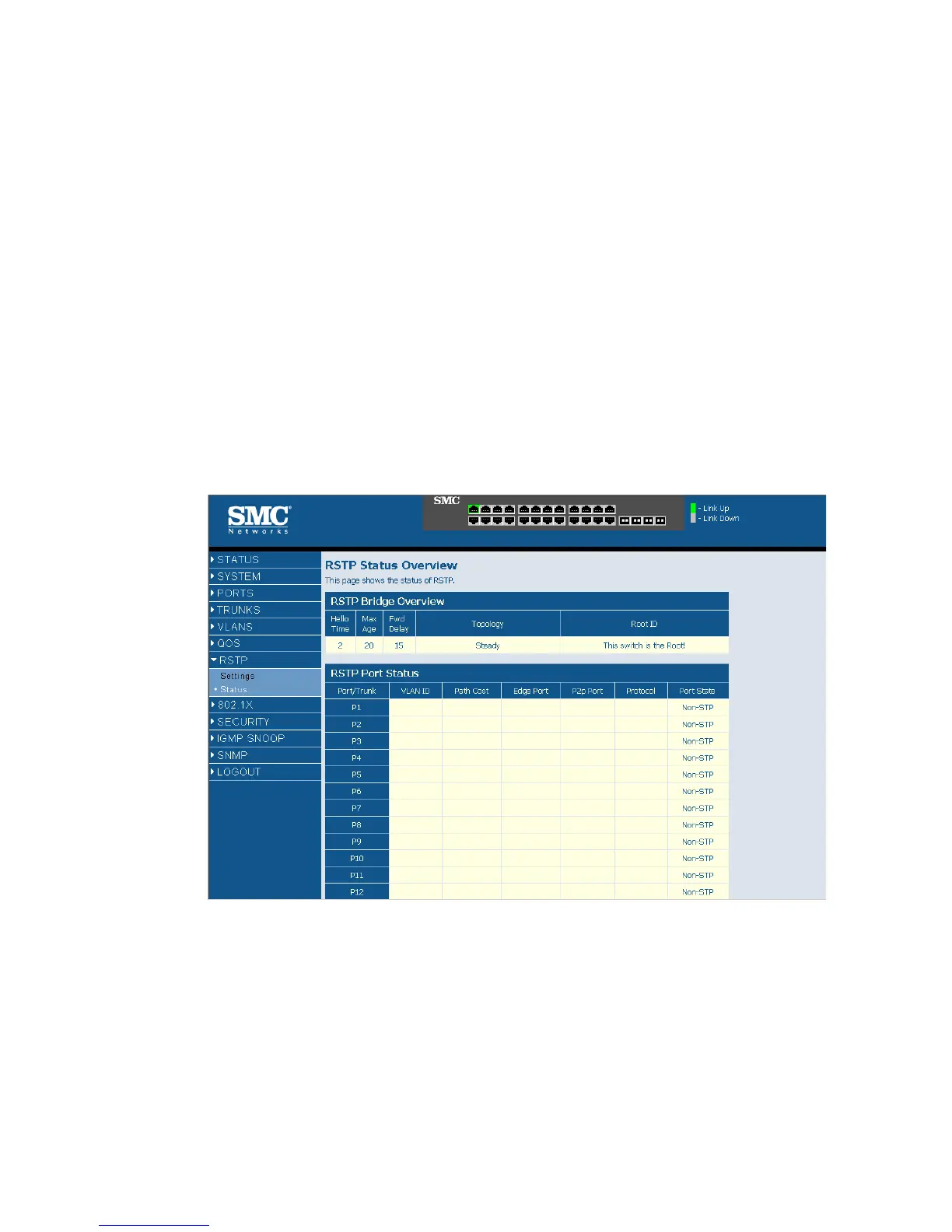

Web – Click RSTP, Status.
Figure 28 RSTP Status Overview
802.1X
Network switches can provide open and easy access to network resources
by simply attaching a client PC. Although this automatic configuration and
access is a desirable feature, it also allows unauthorized personnel to easily
