A BOUT THE T IGER S TACK II 10/100/1000
1-2
These switches can be used to augment or completely replace slow legacy
routers, off-loading local IP traffic to release valuable resources for non-IP
routing or WAN access. With wire-speed performance, these switches can
significantly improve the throughput between IP segments or VLANs.

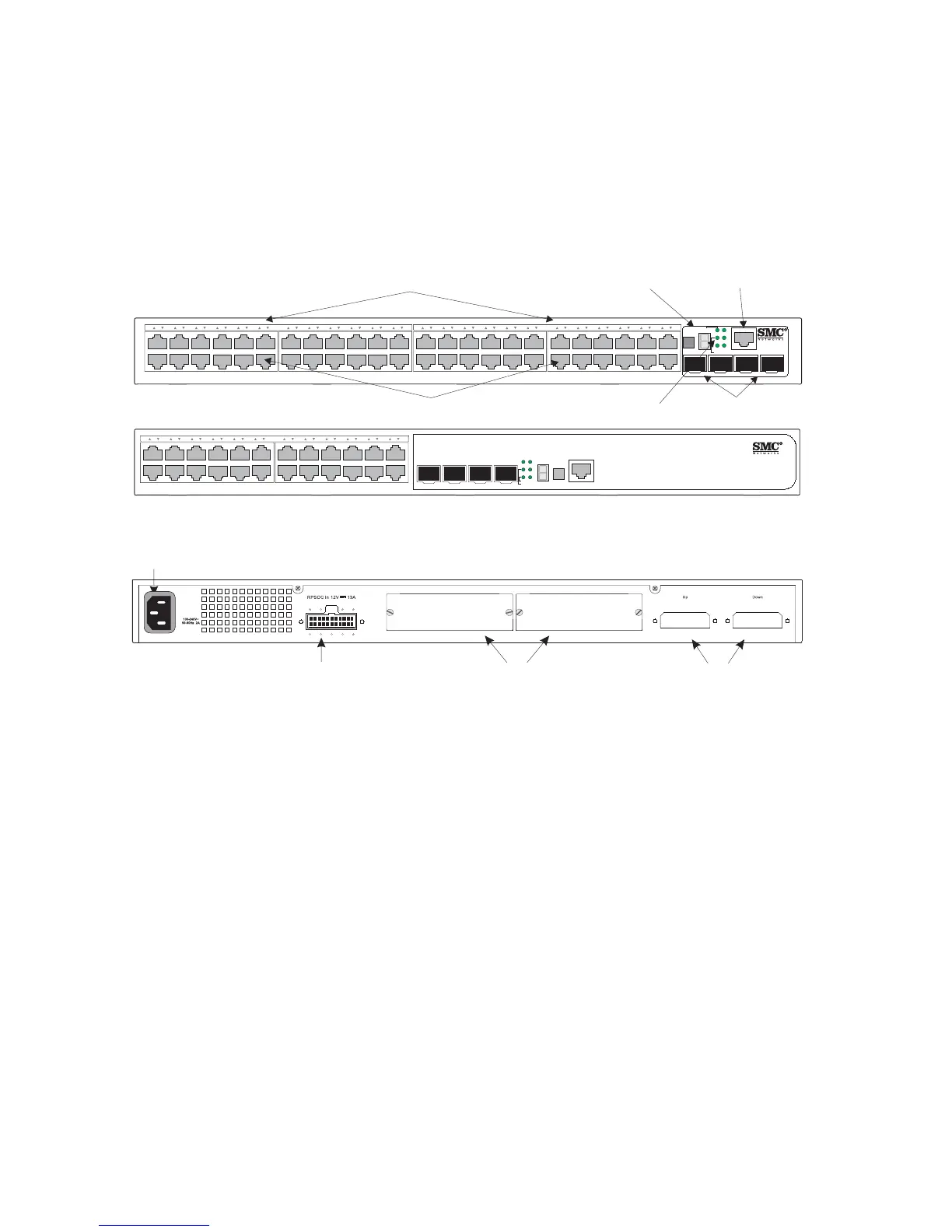

Figure 1-1 Front Panels
Figure 1-2 Rear Panel
Switch Architecture
These Gigabit Ethernet switches employ a wire-speed, non-blocking
switching fabric. This permits simultaneous wire-speed transport of
multiple packets at low latency on all ports. The switches also feature
full-duplex capability on all ports, which effectively doubles the bandwidth
of each connection.
For communications between different VLANs, these switches use IP
routing. For communications within the same VLAN, they use
store-and-forward switching to ensure maximum data integrity. With
store-and-forward switching, the entire packet must be received into a
buffer and checked for validity before being forwarded. This prevents
errors from being propagated throughout the network.
1
2
3
4
5
6
7
8910
11
12
13
14
15
16
17
18 19 20
21 22
23
24
37
38
39
40
41
42 43 44
45 46
47
48
25
26
27
28
29
30 31 32
33 34
35
36
Master
Select
Stack ID
45 46
47
48
Console
Pwr
RPS
Diag
Stack Master
TigerStack II
10/100/1000
8848M
Module
Stack Link
SMC8848M
10/100/1000 Mbps RJ-45 Ports
System Indicators
Port Status LEDs
Console Port
Stack ID
SFP Slots
SMC8824M
Master
Select
Stack ID
Pwr
Stack
Master
RPS
Diag
21 22
23
24
Console
TigerStack II
10/100/1000
8824M
Stack Link
Module
1
2
3
4
5
6
7
8910
11
12
13
14
15
16
17
18 19 20
21 22
23
24
Stacking Ports
Power Socket
Redundant Power Socket
Module Slots
M1 M2
