To rack-mount devices:
1. Attach the brackets to the device using the screws provided in the
Bracket Mounting Kit.

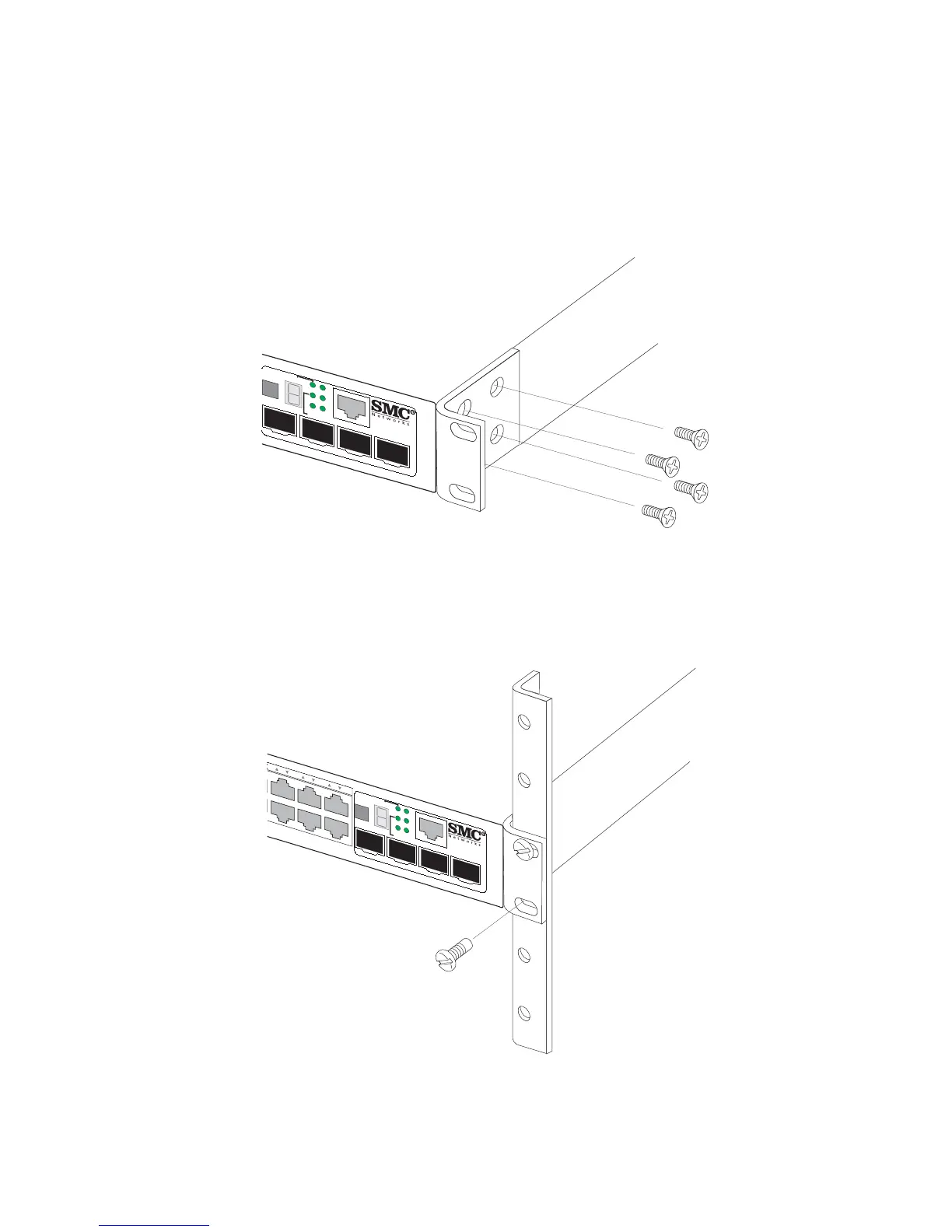

Figure 3-2 Attaching the Brackets
2. Mount the device in the rack, using four rack-mounting screws (not
provided).
Figure 3-3 Installing the Switch in a Rack
