SMC Networks TigerStack II SMC8848M

I NSTALLING THE S WITCH
3-8
6. The Module LED on the switch’s front panel should turn green to
confirm that the module is correctly installed and ready to use.
Installing an Optional
SFP or XFP Transceiver into the Switch

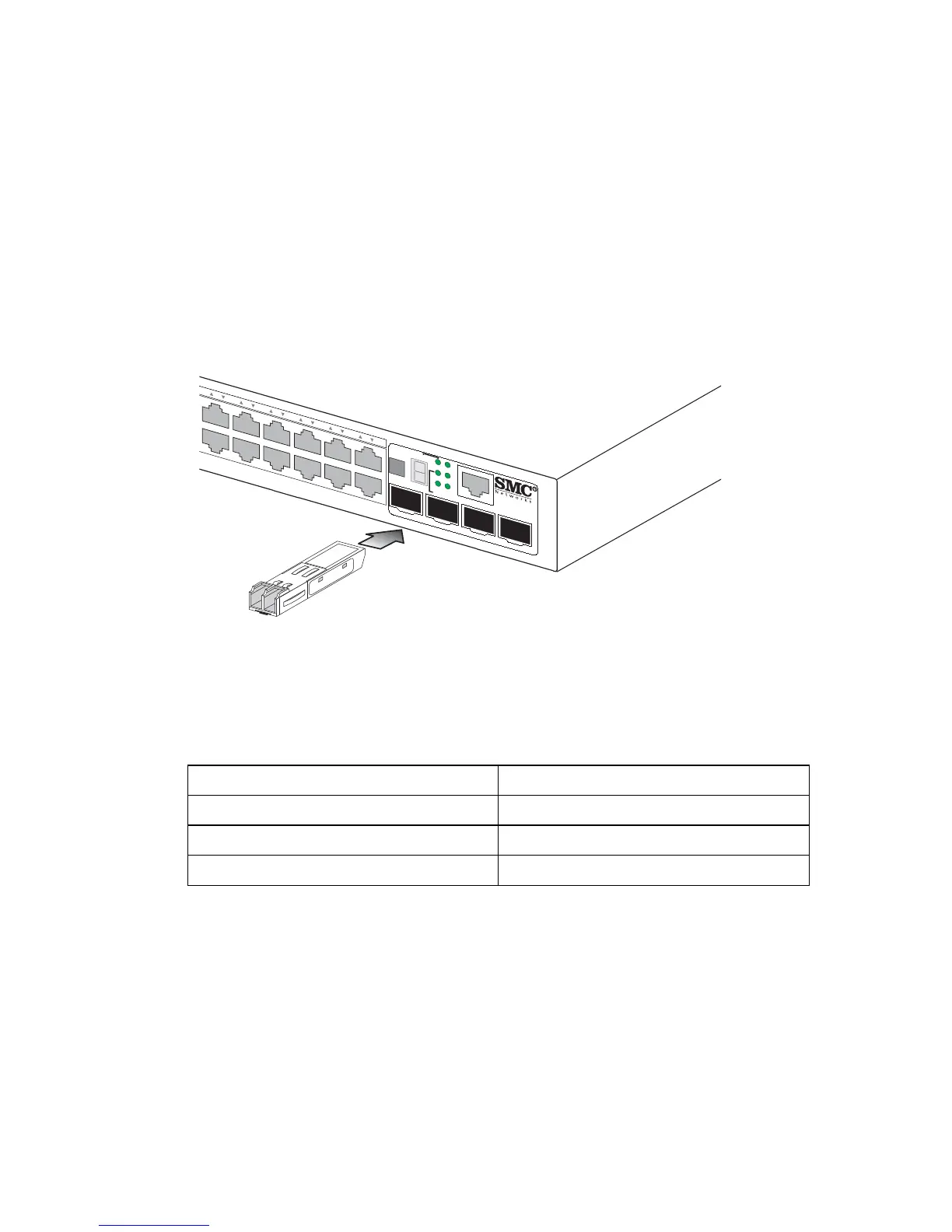

Figure 3-6 Inserting an SFP Transceiver into a Slot
The switch support the following optional transceivers:
To install an SFP or XFP transceiver, do the following:
1. Consider network and cabling requirements to select an appropriate
transceiver type. Refer to “Connectivity Rules” on page 4-8.
2. Insert the transceiver with the optical connector facing outward and
the slot connector facing down. Note that SFP and XFP transceivers
are keyed so they can only be installed in one orientation.
Table 3-1 Optional Transcievers
SFP XFP
1000BASE-SX (SMCBGSLCX1) 10GBASE-SR (SMC10GXFP-SR)
1000BASE-LX (SMCBGLLCX1) 10GBASE-LR (SMC10GXFP-LR)
1000BASE-ZX (SMCBGZLCX1) 10GBASE-ER (SMC10GXFP-ER)
