SMC Networks TigerStack II SMC8848M Installation Guide

A BOUT THE T IGER S TACK II 10/100/1000
1-6

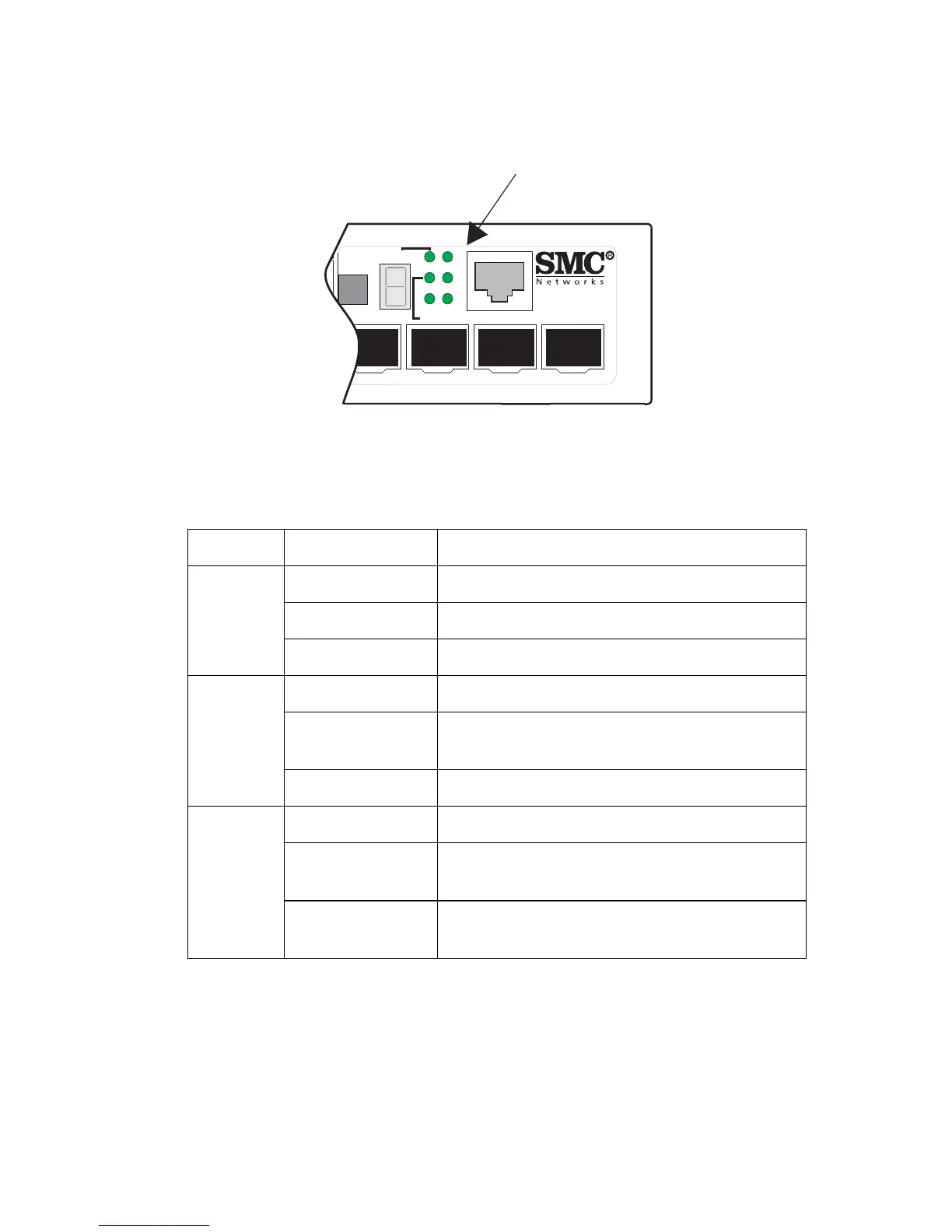

Figure 1-4 System LEDs
Table 1-2 System Status LEDs
LED Condition Status
Power Green Internal power is operating normally.
Amber Internal power supply fault.
Off Power off.
Diag Flashing Green System self-diagnostic test in progress.
Green System self-diagnostic test successfully
completed.
Amber System self-diagnostic test has detected a fault.
RPS Green Redundant power supply is receiving power.
Amber Fault in redundant power supply, including
thermal or fan failure.
Off Redundant power supply is off or not plugged
in.
System Status LEDs
48
Master
Select
Stack ID
45 46
47
48
Console
Pwr
RPS
Diag
Stack Master
TigerStack II
10/100/1000
8848M
Module
Stack Link
